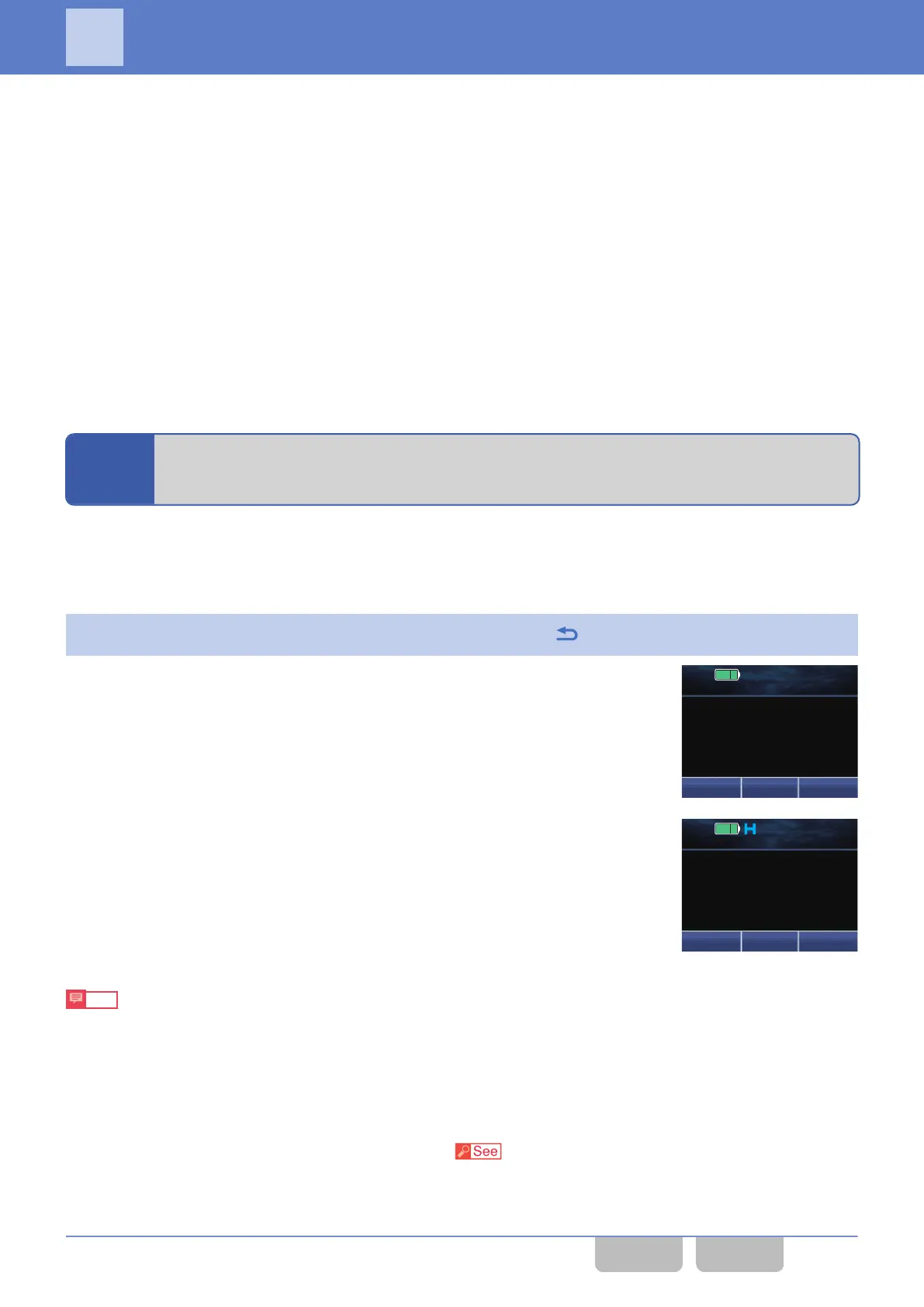

The transceiver has the following modes: the mode for adjusting the transceiver, the mode for copying the configuration
data
to another transceiver, the mode to change the configuration of the transceiver, and the mode for updating the firmware
and confirming the version number of the firmware.
0
Panel Test Mode
0
Panel Tuning Mode
0
Clone Mode
0
Front Panel Programming Mode
0
Firmware Programming Mode
0
Transceiver Information Mode
The transceiver can enter each mode by pressing keys on the transceiver. Whether to permit the use of these modes can
be configured using KPG-D1/ D1N.
Using KPG-D1/ D1N, the transceiver also has PC Test Mode for testing transmit and receive capabilities of the transceiver
and PC Tuning Mode for adjusting the transceiver.
15.1
Testing the Transmit and Receive Capabilities of the
Transceiver (Panel Test Mode)
Panel Test Mode can be used to test transmit and receive capabilities of the transceiver using the operation panel of the
transceiver.
Operating the transceiver
1
Turn the transceiver ON while pressing and holding the Back ([ ]) key.
A Power-on Tone A (1 beep) sounds from the transceiver, and then the
market
code of the transceiver appears for 2 sec. For Portable, the battery
type also appears.
The transceiver enters Panel Test Mode after a lapse of 2 sec.
ALKALI
K 700/800MHz
Tuning FuncCh
+
+
25
An SQ5 1- 1
Note
0
Refer to the service manual for instructions on how to operate the transceiver in Panel Test Mode, and on how to test
transmit and receive capabilities.
0
To end Panel Test Mode, the transceiver must be turned OFF.
0
Panel Test Mode does not function in a Multi RF Deck/ Multi Control Head structure for Mobile.
Configuration using KPG-D1/ D1N
Configuring whether to permit the use of Panel Test Mode (
Transceiver Settings > Optional Features > Optional
Features 1 > Mode)
15 MODE
15
MODE
Common FUNC (K, F)/Ver 2.20 240
