b If “Internal + External” is configured in External Speaker:
0
When Single Audio Output is configured
The audio received by RF Deck 1 sounds from both the speaker of the Control Head and the external speaker
connected to RF Deck 1.
External
Speaker
RF Deck 1
(Selected RF
Deck)
KRK-15B
KRK-14H
Basic Panel
Mic Mic
KRK-14H
Basic Panel
KRK-15B KRK-15B
RF Deck 2
(Unselected RF
Deck)
RF Deck 3
(Priority: 1)
(Priority: 2)
(Priority: 3)
(Unselected RF
Deck)
A
udio Reception
Received Audio Output
Received Audio Output
Received Audio Output
Audio Reception Audio Reception

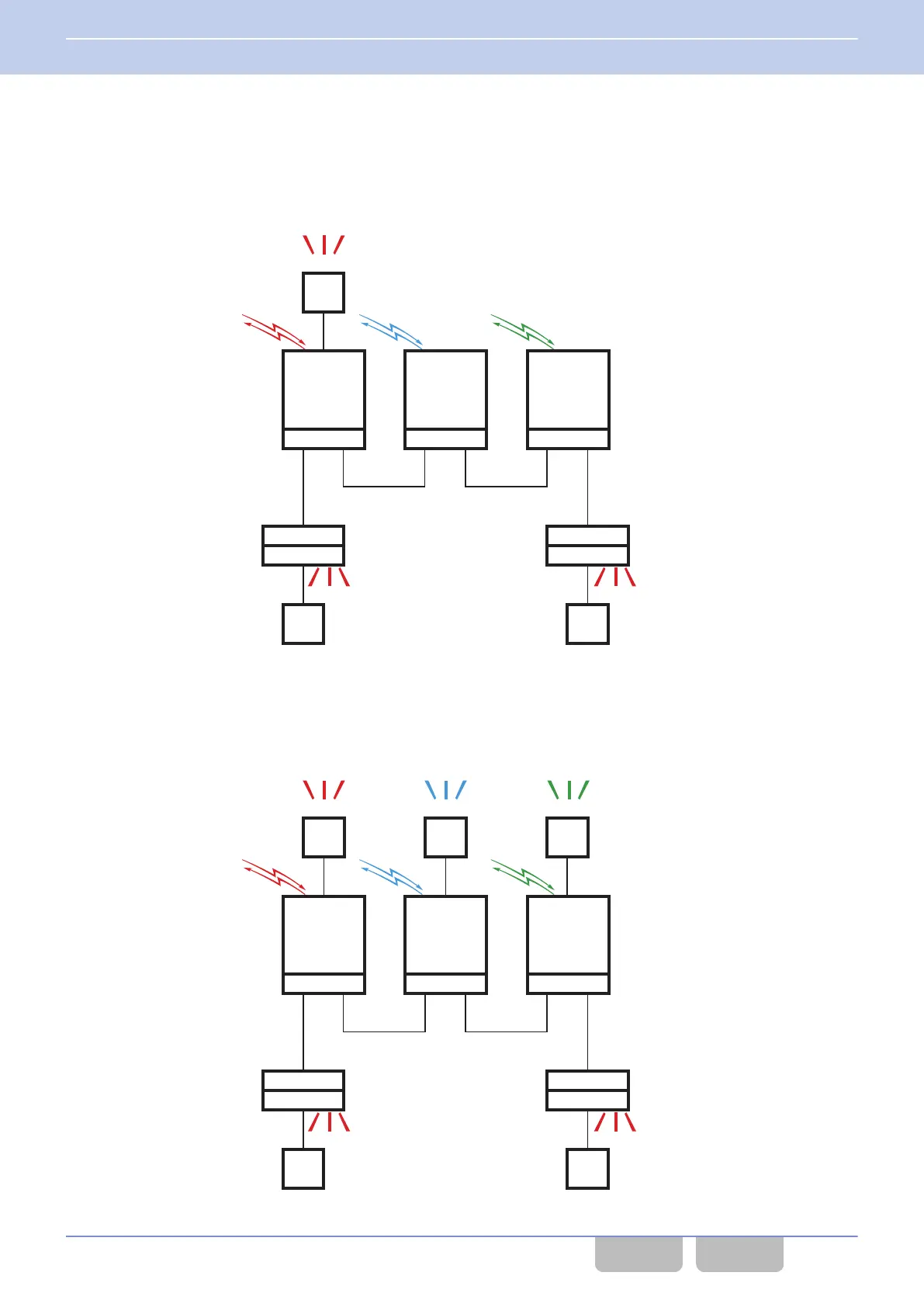

Figure 16-51 Single Audio Output (External Speaker = Internal + External)
0
When Multi Audio Output is configured
The
audio received by the Selected RF Deck sounds from the speaker of the Control Head. Simultaneously, the audio
received by each RF Deck individually sounds from the external speaker connected to each RF Deck.
External
Speaker
RF Deck 1
(Selected RF
Deck)
KRK-15B
KRK-14H
Basic Panel
Mic Mic
KRK-14H
Basic Panel
KRK-15B KRK-15B
RF Deck 2
(Unselected RF
Deck)
RF Deck 3
(Unselected RF
Deck)
External
Speaker
External
Speaker
A
udio Reception
Received Audio OutputReceived Audio Output
Received Audio Output Received Audio Output
Received Audio Output
Audio Reception Audio Reception
Figure 16-52 Multi Audio Output (External Speaker = Internal + External)
16 MULTI RF DECK/ MULTI CONTROL HEAD
16.7 Audio Function
Common FUNC (K, F)/Ver 2.20 291
