Kenwood NX-5200K3 Common Function Reference

1.2
NX-5700/ NX-5800/ NX-5900
KCH-19 (Basic Panel)
1
2
3
8
9
10 13
11 12
5
4
6
7

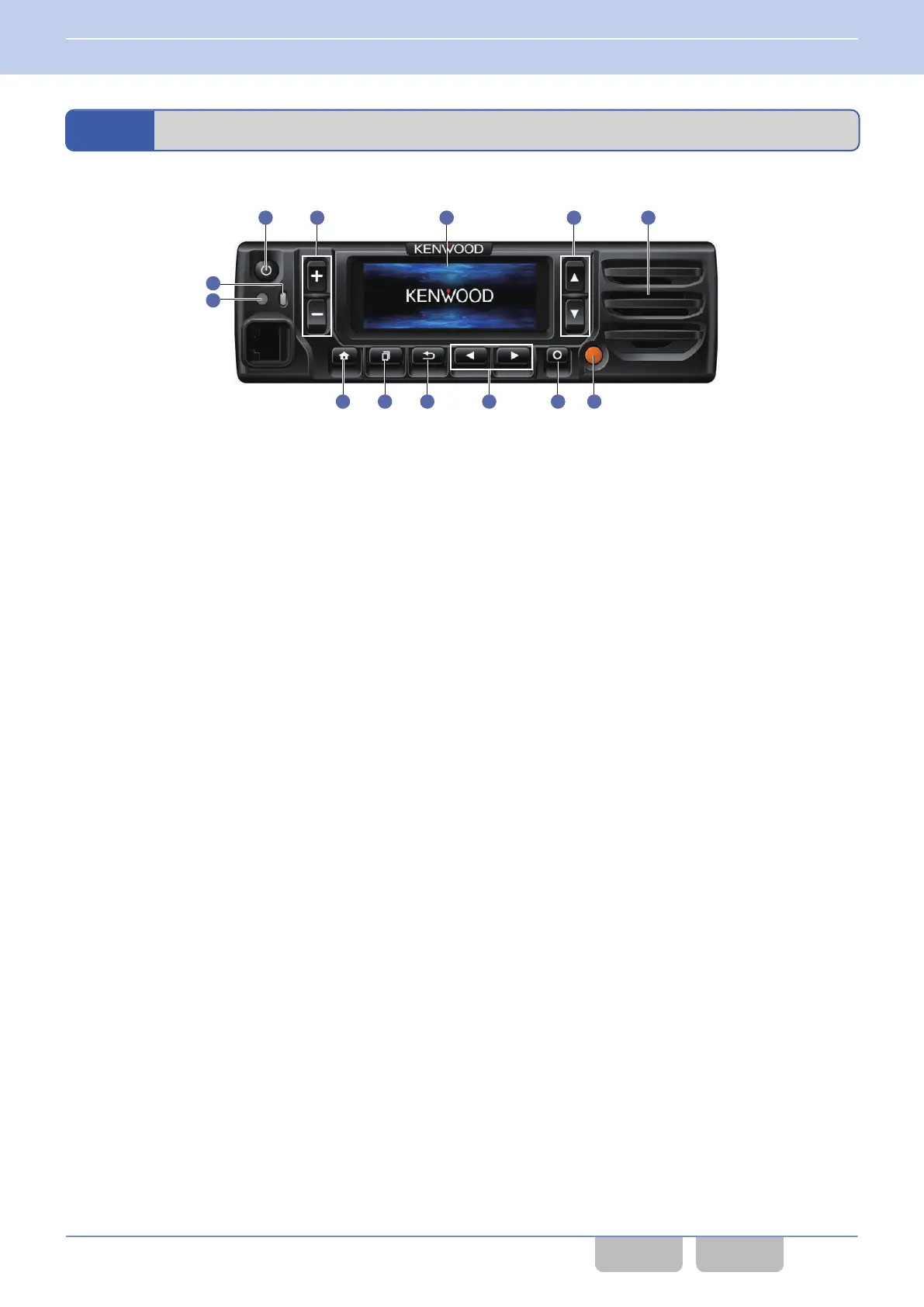

Figure 1-2 NX-5700/ NX-5800/ NX-5900 Front View (KCH-19 (Basic Panel))
A
[P] (Power) Switch
The
transceiver is turned ON when this switch is pressed
and the transceiver is turned OFF when this switch is
pressed again. In this manual, the [P] (Power) switch is
described as the Power switch.
B
[+]/ [-] Key
The preassigned function will be activated or will be
changed to the active state. It is normally used for the
volume adjustment of the speaker.
C
LCD
The channel number and the transceiver’s status appear
on this display.
D
[G]/ [H] Key
The preassigned function will be activated or will be
changed to the active state. It is normally used to change
the zone or channel.
E
Speaker
The received audio and the Alert Tone sound from the
speaker.
F
Transmit LED/ Busy LED
These LEDs light when the transceiver transmits or
receives a signal.
G
Illumination Sensor
The sensor is for automatically adjusting the luminance
of the LCD depending on the brightness of the
environment.
H
[T] (Home) Key
The preassigned function will be activated or will be
changed to the active state. In this manual, the [T]
(Home) key is described as the Home ([T]) key.
I
[Q] (Menu) Key
The preassigned function will be activated or will be
changed to the active state. In this manual, the [Q]
(Menu) key is described as the Menu ([Q]) key.
The default of the [Q] (Menu) key is the Menu function.
If the configuration is changed using KPG-D1/ D1N, a
newly configured function will be activated. Unless the
Menu
function is reassigned to the [Q] (Menu) key, Menu
Mode cannot be activated even if the [Q] (Menu) key is
pressed.
J
[O] (Back) Key
The preassigned function will be activated or will be
changed to the active state. In this manual, the [O]
(Back) key is described as the Back ([O]) key.
K
[E]/ [F] Key
The preassigned function will be activated or will be
changed to the active state. It is normally used to change
the zone or channel.
L
[W] (Function) Key
The preassigned function will be activated or will be
changed to the active state. In this manual, the [W]
(Function) key is described as the Function ([W]) key.
M
AUX Key
The preassigned function will be activated or will be
changed to the active state.
1 FUNCTIONS AND PANEL LAYOUT
1.2 NX-5700/ NX-5800/ NX-5900
Common FUNC (K, F)/Ver 2.20 3
