Kenwood NX-5200K3 Common Function Reference

KCH-20R (Featured Panel)
1
8
9
2
3
h
g
e
d
c
b
a
f
5
6
7
4
0

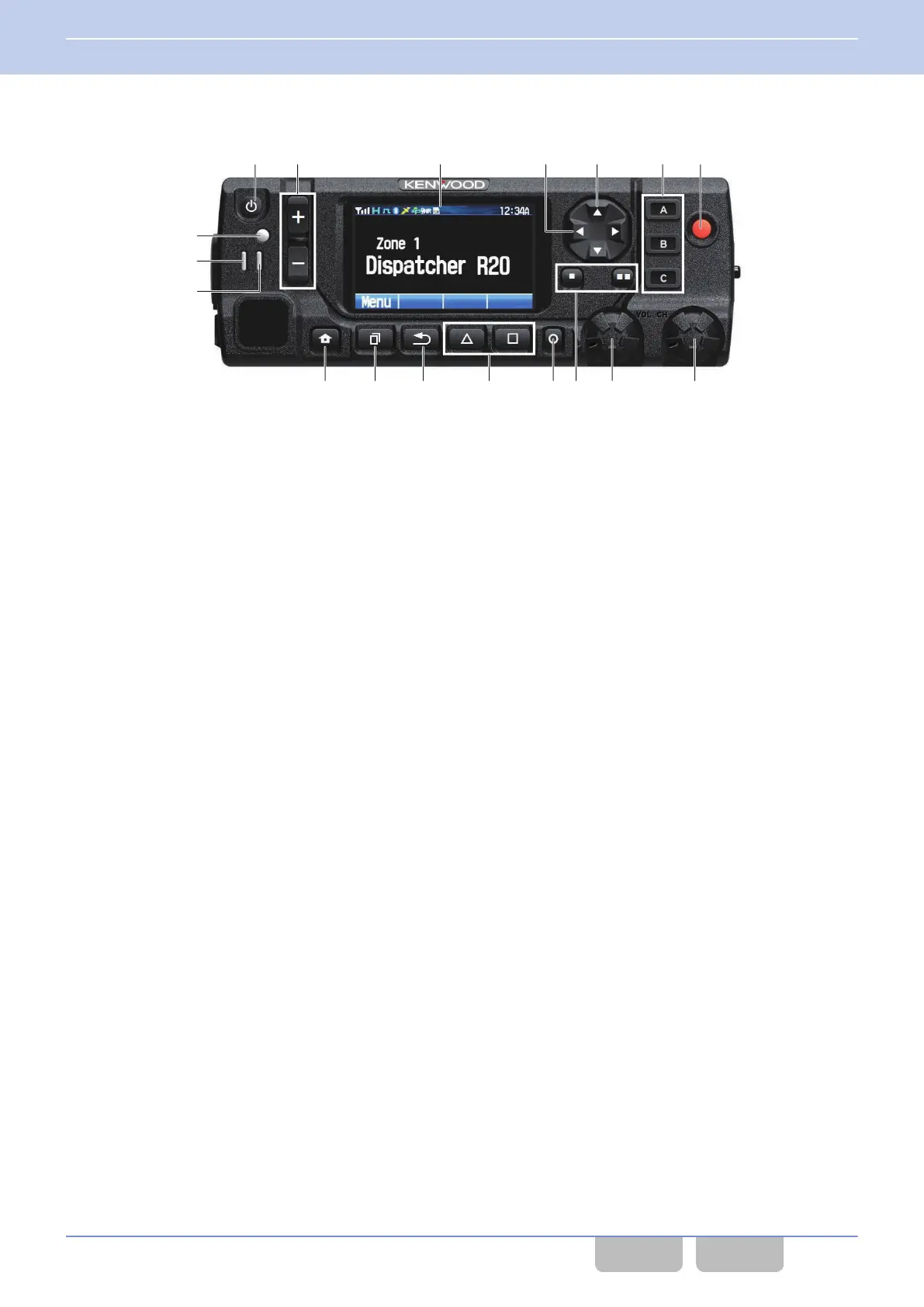

Figure 1-3 NX-5700/ NX-5800 Front View (KCH-20R (Featured Panel))
A
[P] (Power) Switch
The
transceiver is turned ON when this switch is pressed
and the transceiver is turned OFF when this switch is
pressed again. In this manual, the [P] (Power) switch is
described as the Power switch.
B
[+]/ [-] Key
The preassigned function will be activated or will be
changed to the active state.
C
LCD
The channel number and the transceiver’s status appear
on this display.
D
[E]/ [F] Key
The preassigned function will be activated or will be
changed to the active state. It is normally used to change
the zone or channel.
E
[G]/ [H] Key
The preassigned function will be activated or will be
changed to the active state. It is normally used to change
the zone or channel.
F
[A]/ [B]/ [C] Key
The preassigned function will be activated or will be
changed to the active state.
G
AUX Key
The preassigned function will be activated or will be
changed to the active state.
H
Illumination Sensor
The sensor is for automatically adjusting the luminance
of the LCD depending on the brightness of the
environment.
I
Transmit LED
This LED lights when the transceiver transmits a signal.
J
Busy/ Status LED
This LED lights or flashes according to the status, such
as while the transceiver is receiving a signal, and when
the transceiver receives a call.
K
[T] (Home) Key
The preassigned function will be activated or will be
changed to the active state. In this manual, the [T]
(Home) key is described as the Home ([T]) key.
L
[Q] (Menu) Key
The preassigned function will be activated or will be
changed to the active state. In this manual, the [Q]
(Menu) key is described as the Menu ([Q]) key.
The default of the [Q]
(Menu) key is the Menu function.
If the configuration is changed using KPG-D1/ D1N, a
newly configured function will be activated. Unless the
Menu function is reassigned to the [Q] (Menu) key, Menu
Mode cannot be activated even if the [Q] (Menu) key is
pressed.
M
[O] (Back) Key
The preassigned function will be activated or will be
changed to the active state. In this manual, the [O]
(Back) key is described as the Back ([O]) key.
N
[d]/ [c] Key
The preassigned function will be activated or will be
changed to the active state.
1 FUNCTIONS AND PANEL LAYOUT
1.2 NX-5700/ NX-5800/ NX-5900
Common FUNC (K, F)/Ver 2.20 4
CONTENTS INDEX
