Attaching KRK-14HM to KCH-19M
To use KCH-19RM, KRK-14HM needs to be attached to KCH-19RM.
Note
If KCH-20RM is used, KRK-14HM does not need to be attached to KCH-20RM.
1
Plug the cable into the connector (CN2) of KCH-19M.
2
Plug the flat cable into the connector (CN6) of KCH-19M.

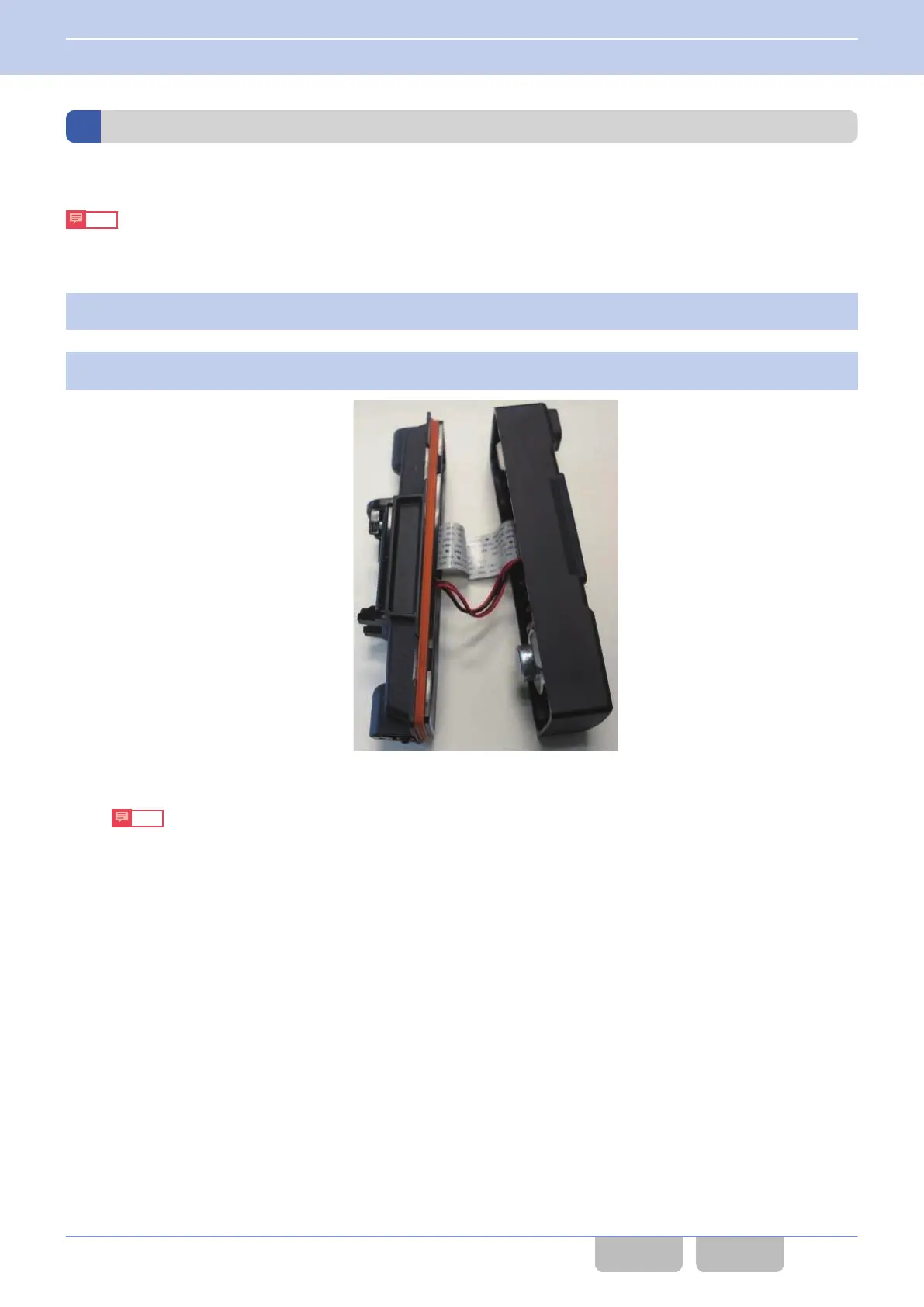

Figure 17-5 Connection of the Cables
Note
0
Be careful when plugging the flat cable into CN6.
0
So that the flat cable does not cross, insert the flat cable into CN6 straight.
