Kenwood NX-5200K3 Common Function Reference

Adding an RF Deck
This section describes the steps to add an RF Deck to a system of a Dual RF Deck/ Dual Control Head structure.
Note
An RF Deck can be added with the same procedure when adding the RF Deck to a system of the following RF Deck/
Control Head structures:
0
Single RF Deck/ Single Control Head
0
Single RF Deck/ Dual Control Head
0
Dual RF Deck/ Single Control Head
1
Turn OFF all RF Decks and Control Heads.
If either Control Head is turned OFF, all RF Decks and Control Heads are turned OFF.
RF Deck 2
KRK-15B
1
Control Head
RF Deck 1
KRK-15B
2
Control Head
Power OFF

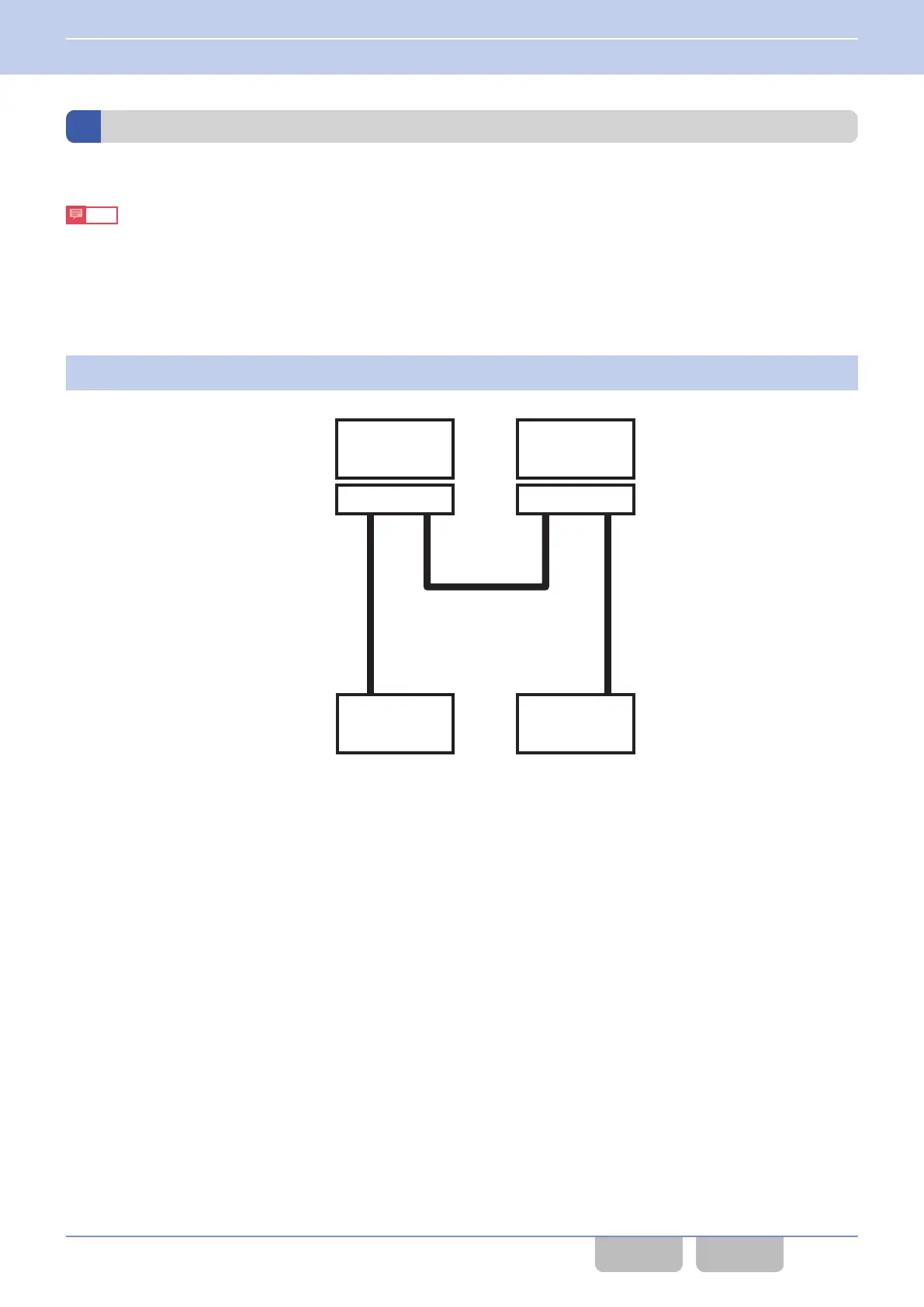

Figure 17-24 Dual RF Deck/ Dual Control Head (Power OFF)
17 STRUCTURING A MULTI RF DECK/ MULTI CONTROL HEAD
17.2 Adding an RF Deck/ Control Head
Common FUNC (K, F)/Ver 2.20 348
