Kenwood NX-5200K3 Common Function Reference

2
Add the RF Deck.
Install RF Deck 3 and KCT-71 in a Multi RF Deck system.
Control Head
2
RF Deck 2
KRK-15B
Control Head
1
RF Deck 1
KRK-15B
RF Deck 3
KRK-15B
RF Deck 3
KRK-15B

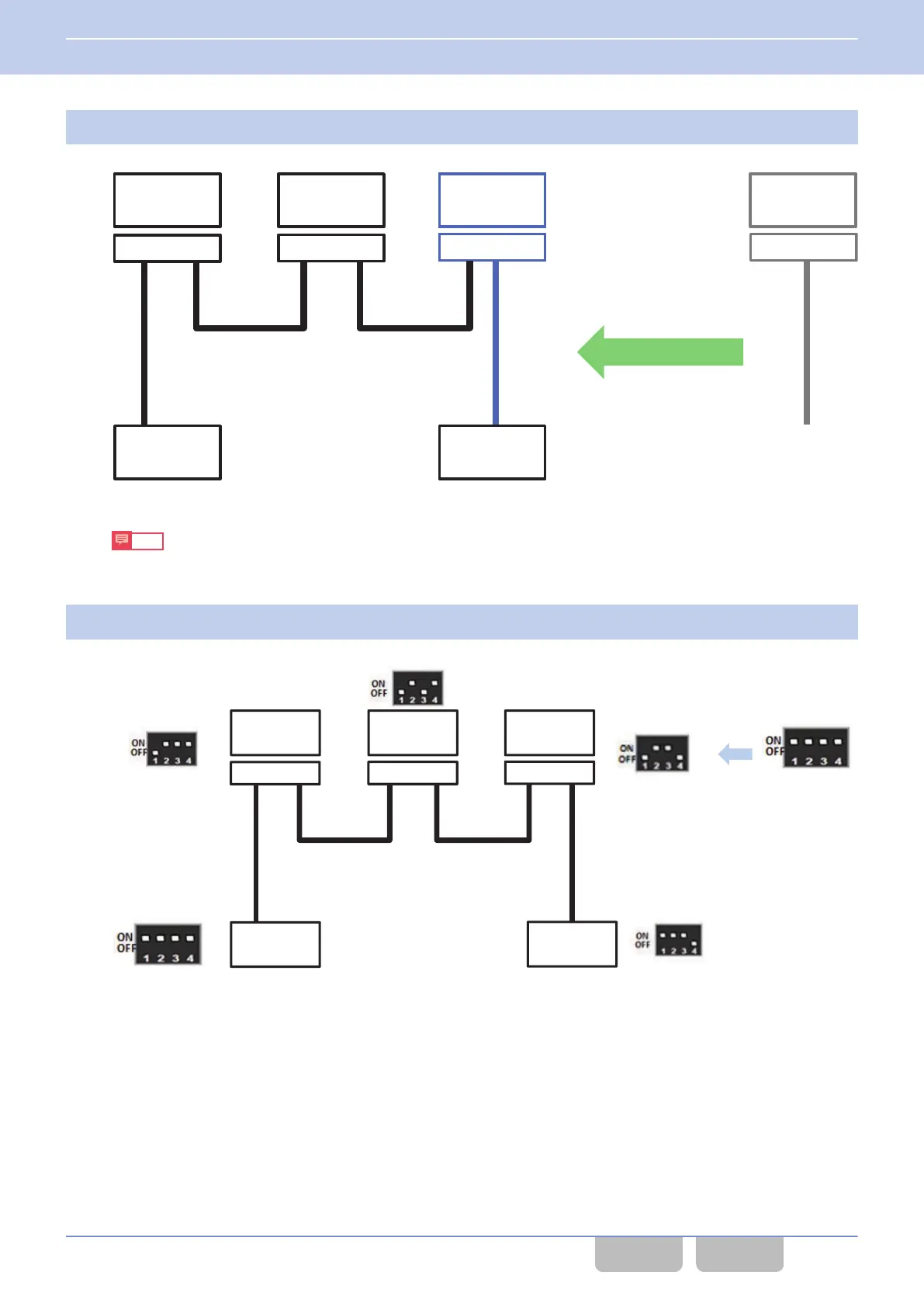

Figure 17-25 Installation of RF Deck 3/ KCT-71
Note
The software option of the RF Deck to be added must be enabled. Refer to “Activating a Radio Feature License
(KWD-5004MR)” of “Multi RF Deck/ Multi Control Head”.
3
Change the DIP switch.
Change the DIP switch to the Triple RF Deck/ Dual Control Head configuration.
Control Head
2
RF Deck 3
KRK-15B
RF Deck 2
KRK-15B
Control Head
1
RF Deck 1
KRK-15B
After Change Before Change
Figure 17-26 DIP Switch Configuration Triple RF Deck/ Dual Control Head
17 STRUCTURING A MULTI RF DECK/ MULTI CONTROL HEAD
17.2 Adding an RF Deck/ Control Head
Common FUNC (K, F)/Ver 2.20 349
