4
Turn ON all RF Decks and Control Heads.
If either Control Head is turned ON, all RF Decks and Control Heads are turned ON.
2
Control Head
RF Deck 3
KRK-15B
RF Deck 2
KRK-15B
1
Control Head
RF Deck 1
KRK-15B

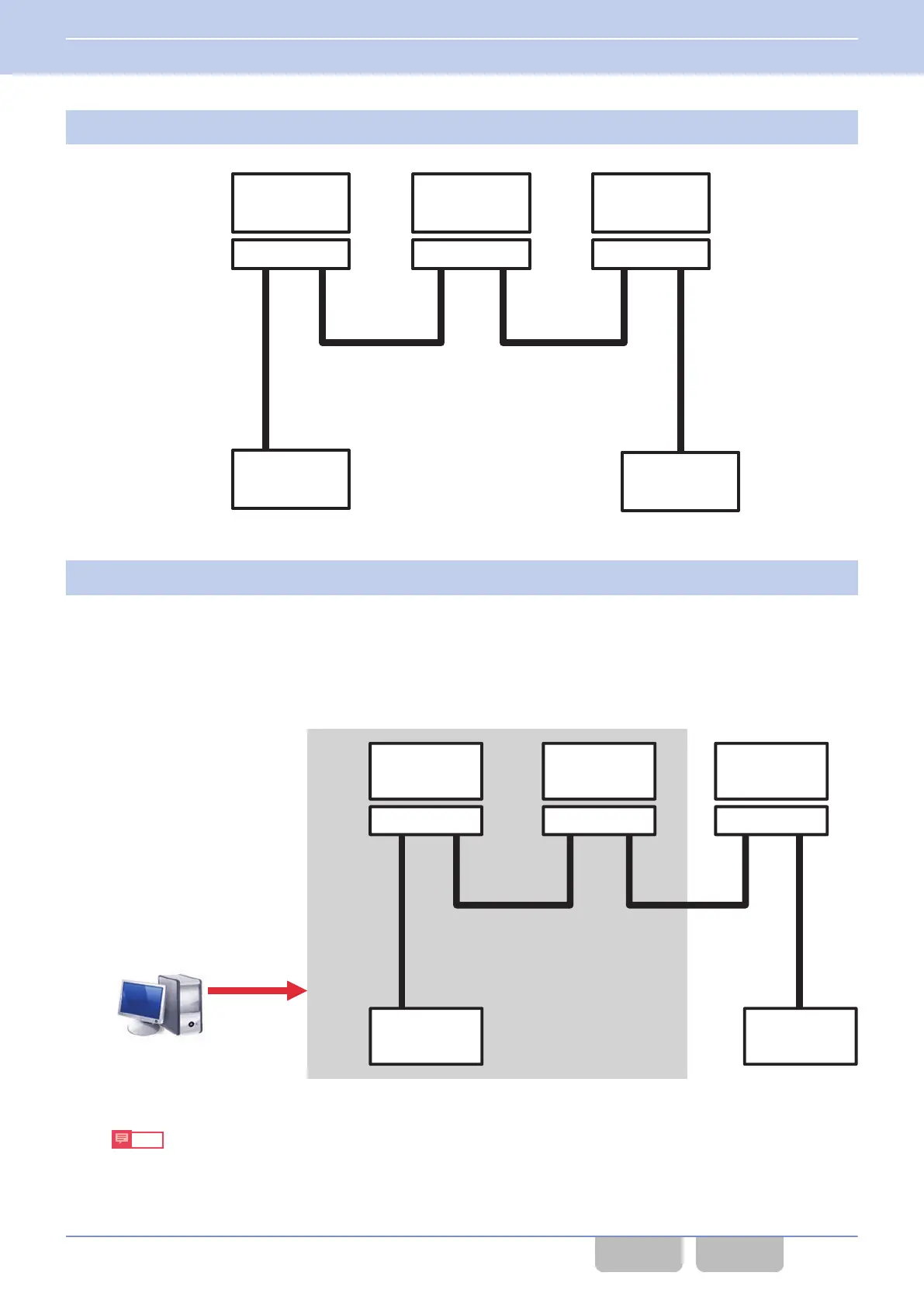

Figure 17-27 Triple RF Deck/ Dual Control Head (Power ON)
5
Write the FPU data and restart.
The FPU data for Triple RF Deck/ Dual Control Head is written to the Multi RF Deck system (RF Deck 1, RF Deck 2) after the
programming cable is connected to Control Head 1.
Always write the FPU data in a Multi RF Deck system. Refer to “Configuration in KPG-D1/ D1N if RF Decks Are Switched” for
writing configuration data.
After the FPU data is written, turn OFF all RF Decks and Control Heads, and be sure to restart the RF Decks and Control Heads.
0
If “FIRM MISMATCH” is displayed on the screen of the Control Head, proceed to step 6.
0
If “FPU MISMATCH” is displayed on the screen of the Control Head, proceed to step 7.
Control Head
2
RF Deck 3
KRK-15B
RF Deck 2
KRK-15B
Control Head
1
RF Deck 1
KRK-15B
KPG-D1/ D1N
Figure 17-28 Triple RF Deck/ Dual Control Head (FPU Setting 1)
Note
In this procedure, the FPU data is written to make the internal data of RF Deck 1 and RF Deck 2 for Triple RF
Deck. Therefore, the FPU data is written to only RF Deck 1 and RF Deck 2, and the FPU data cannot be written
to RF Deck 3.
17 STRUCTURING A MULTI RF DECK/ MULTI CONTROL HEAD
17.2 Adding an RF Deck/ Control Head
Common FUNC (K, F)/Ver 2.20 350
