6
Write the firmware.
To activate Multi RF Deck/ Multi Control Head, the firmware version 1.62.00 or later needs to be written.
The firmware version of a Control Head can be confirmed in Radio Mode Selection.
Control Head
2
RF Deck 3
KRK-15B
RF Deck 2
KRK-15B
Control Head
1
RF Deck 1
KRK-15B
KFL

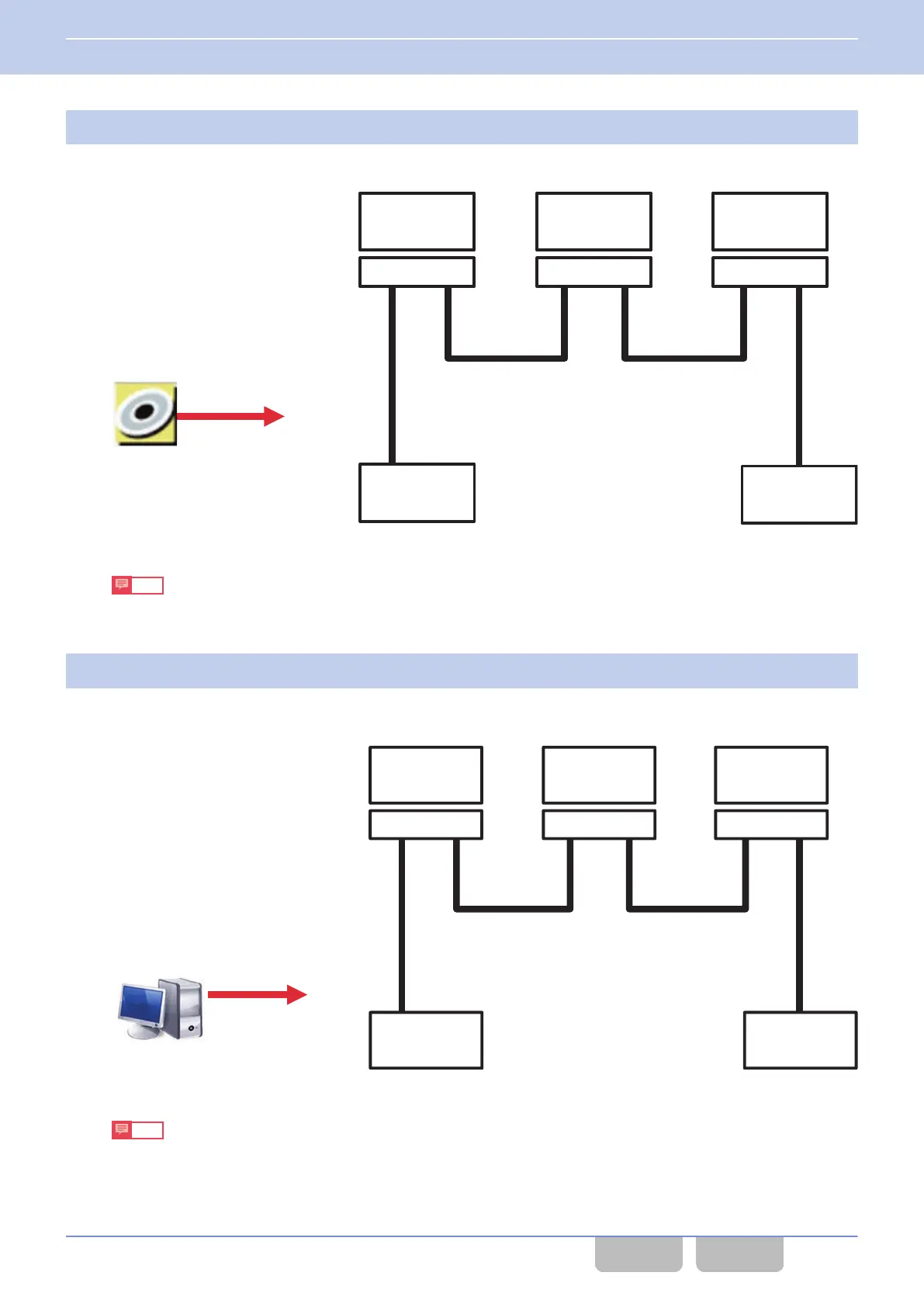

Figure 17-29 Triple RF Deck/ Dual Control Head (Firmware Setting)
Note
0
If “FPU MISMATCH” is displayed on the screen of the Control Head, proceed to step 7.
0
If “FPU MISMATCH” is not displayed on the screen of the Control Head, the procedure is completed with step 6.
7
Write the FPU data.
The FPU data for Triple RF Deck/ Dual Control Head is written in a Multi RF Deck system. Always write the FPU
data in a Multi RF Deck system. Refer to “Configuration in KPG-D1/ D1N if RF Decks Are Switched” for writing
configuration data.
Control Head
2
RF Deck 3
KRK-15B
RF Deck 2
KRK-15B
Control Head
1
RF Deck 1
KRK-15B
KPG-D1
Figure 17-30 Triple RF Deck/ Dual Control Head (FPU Setting 2)
Note
0
If “FIRM MISMATCH” is displayed on the screen of the Control Head, start again from step 6.
0
If
“FIRM MISMATCH” is not displayed on the screen of the Control Head, the procedure is completed with step 7.
17 STRUCTURING A MULTI RF DECK/ MULTI CONTROL HEAD
17.2 Adding an RF Deck/ Control Head
Common FUNC (K, F)/Ver 2.20 351
