Kenwood NX-5200K3 Common Function Reference

17.3
Replacing an RF Deck/ Control Head
The Control Heads and RF Decks in a system that is operating can be replaced.
Replacing a Control Head
This section describes the procedure to replace a Control Head in a system of a Triple RF Deck/ Dual Control Head structure.
Note
A Control Head can be replaced with the same procedure when replacing the Control Head in a system of the following
RF Deck/ Control Head structures:
0
Dual RF Deck/ Single Control Head
0
Dual RF Deck/ Dual Control Head
0
Triple RF Deck/ Single Control Head
1
Turn OFF all RF Decks and Control Heads.
If either Control Head is turned OFF, all RF Decks and Control Heads are turned OFF.
2
Control Head
RF Deck 3
KRK-15B
RF Deck 2
KRK-15B
1
Control Head
RF Deck 1
KRK-15B
Power OFF

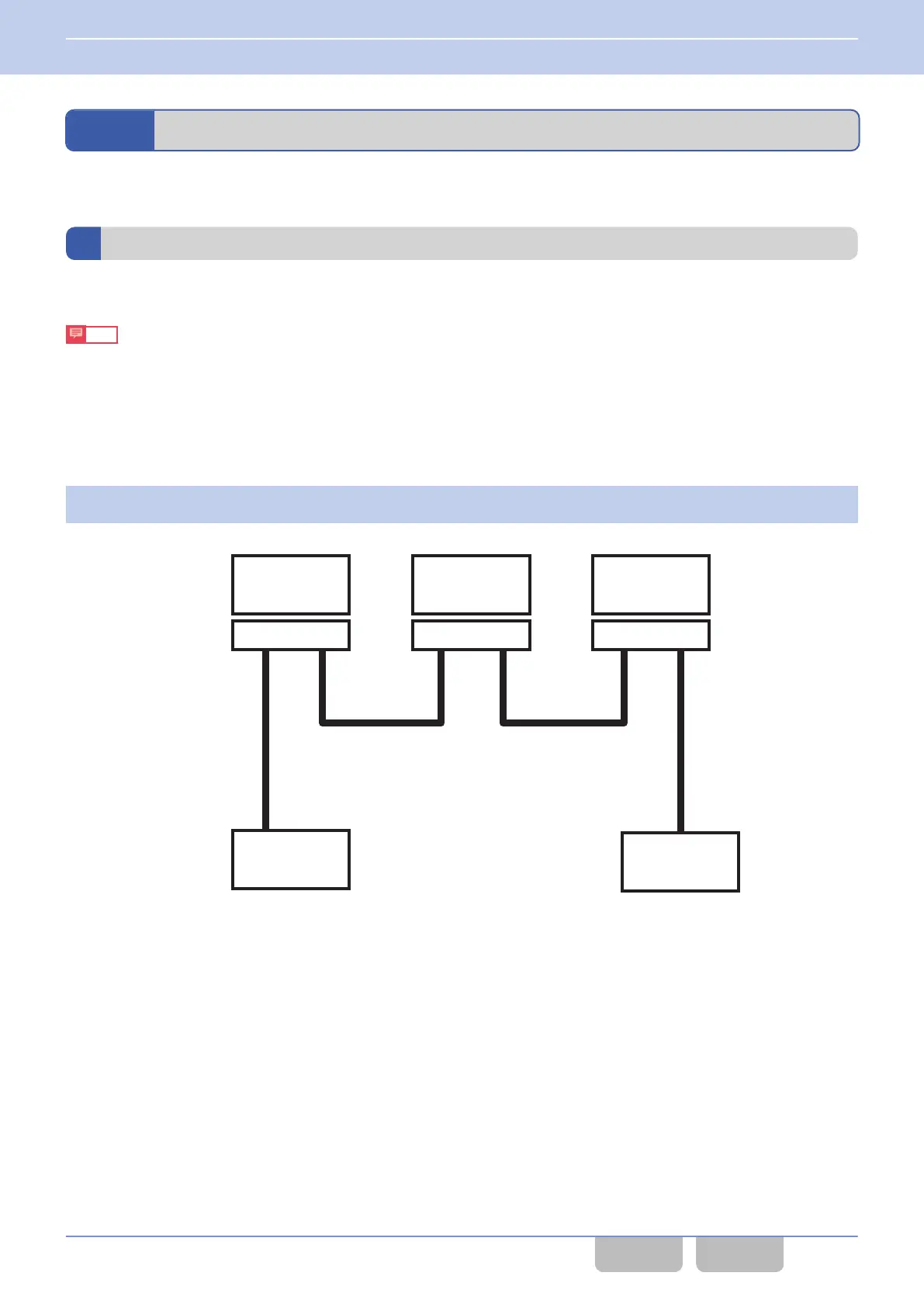

Figure 17-31 Triple RF Deck/ Dual Control Head (Power OFF)
17 STRUCTURING A MULTI RF DECK/ MULTI CONTROL HEAD
17.3 Replacing an RF Deck/ Control Head
Common FUNC (K, F)/Ver 2.20 352
