Kenwood NX-5200K3 Common Function Reference

17.7
Reconnecting a Removed RF Deck
This section describes the procedure for RF Deck removal when RF Deck 3 breaks and the procedure for installation after
the repair of RF Deck 3 is completed while a system in a Triple RF Deck/ Dual Control Head structure is operating.
2
Control Head
RF Deck 3
KRK-15B
RF Deck 2
KRK-15B
1
Control Head
RF Deck 1
KRK-15B

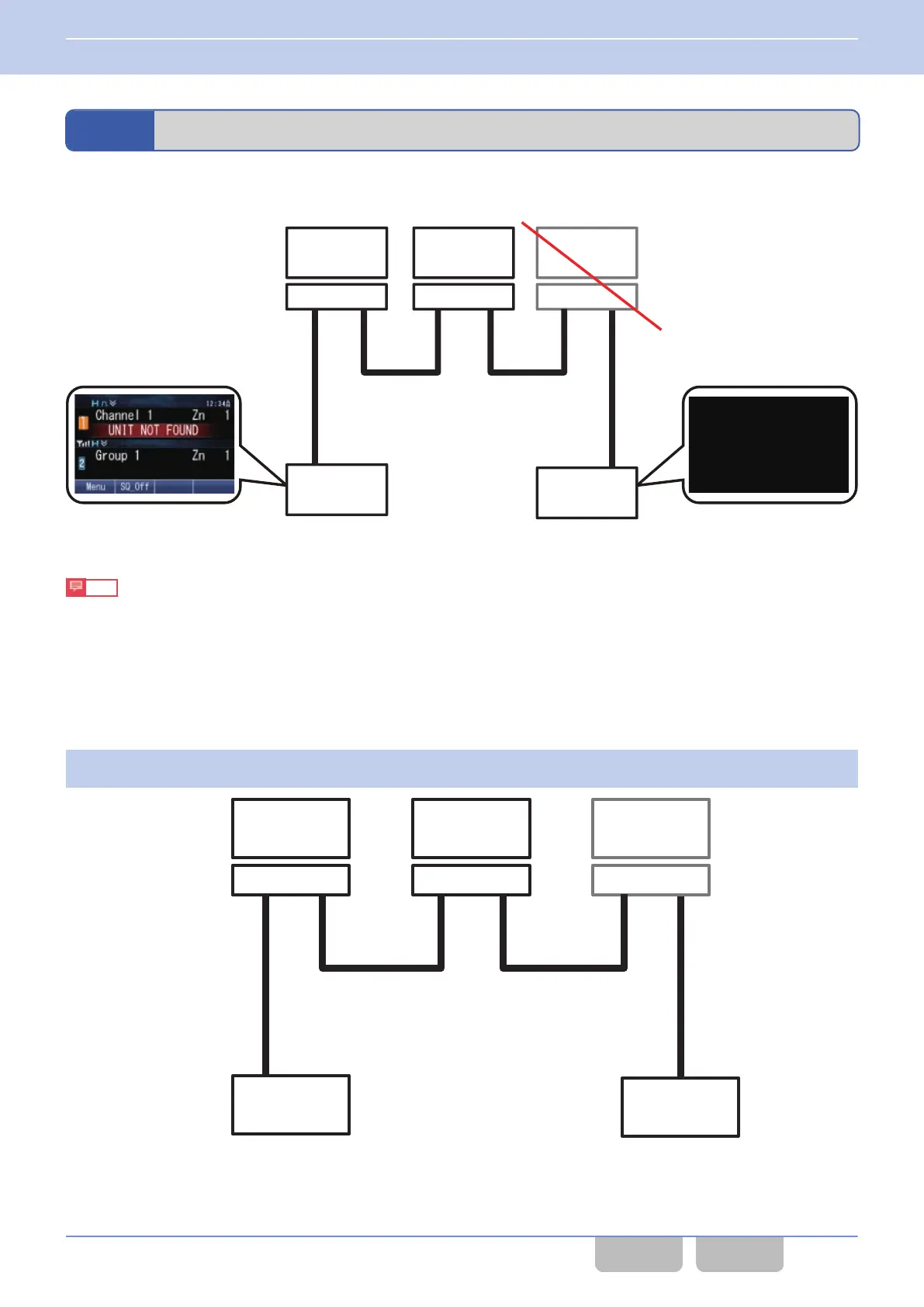

Figure 17-57 Breakdown of RF Deck 3
Note
An RF Deck can be removed and installed with the same procedures even if in a system of the following RF Deck/ Control
Head structures:
0
Triple RF Deck/ Single Control Head
0
Dual RF Deck/ Dual Control Head
0
Dual RF Deck/ Dual Control Head
1
Press the Power switch of a Control Head to turn OFF the power.
2
Control Head
RF Deck 3
KRK-15B
RF Deck 2
KRK-15B
1
Control Head
RF Deck 1
KRK-15B
Power OFF
Figure 17-58 Triple RF Deck/ Dual Control Head (Power OFF)
17 STRUCTURING A MULTI RF DECK/ MULTI CONTROL HEAD
17.7 Reconnecting a Removed RF Deck
Common FUNC (K, F)/Ver 2.20 368
CONTENTS INDEX
