Kenwood NX-5200K3 Common Function Reference

2
Remove RF Deck 3 and KCT-71.
2
Control Head
RF Deck 2
KRK-15B
1
Control Head
RF Deck 1
KRK-15B
RF Deck 3
KRK-15B
RF Deck 3
KRK-15B
KCT-71

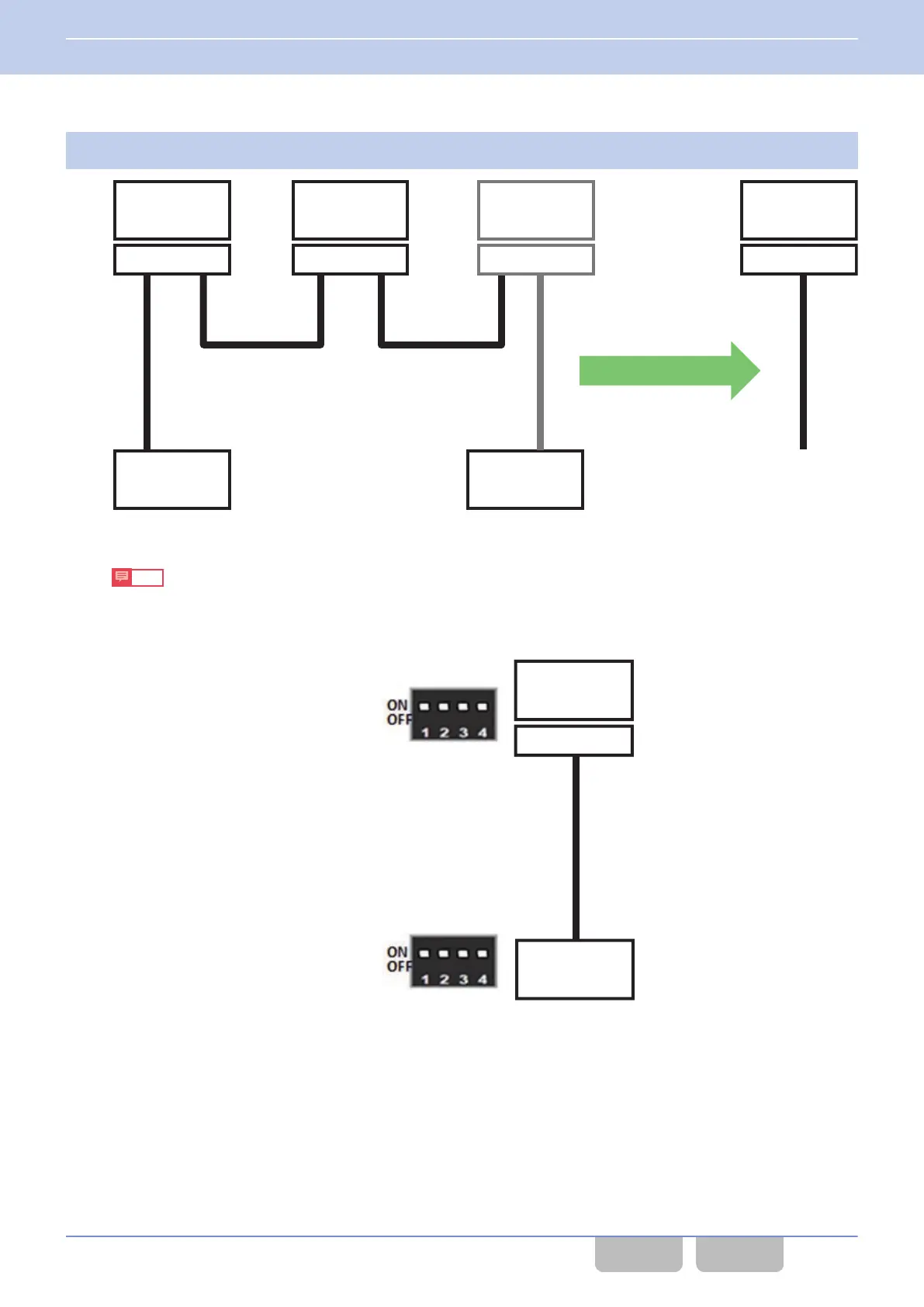

Figure 17-59 Removal of RF Deck 3/ KCT-71
Note
0
If
the removed RF Deck 3 is not broken, by changing the configuration of the DIP switch, the system can operate
in a system of a Single RF Deck/ Single Control Head structure even without overwriting the configuration data.
However, “Unit Not Found” appears on the display.
Control Head
RF Deck 3
KRK-15B
RF Deck 1
Control Head 1
Figure 17-60 Single RF Deck/ Single Control Head
17 STRUCTURING A MULTI RF DECK/ MULTI CONTROL HEAD
17.7 Reconnecting a Removed RF Deck
Common FUNC (K, F)/Ver 2.20 369
