Kenwood NX-5200K3 Common Function Reference

17.9
Changing the Display Positions of a Channel Name and an
Icon When Multi RF Deck View Is On
If Multi RF Deck View is enabled when KCH-20R (Featured Panel) or KCH-21R (Handheld Control Head) is used for a
Control Head, the channel names of all RF Decks in the Multi RF Deck system can be displayed simultaneously on the
display.
By
changing the configuration of the DIP switch of an RF Deck, the display positions of a channel name and an icon in Multi
RF Deck View can be changed.
Head B
Control
C
RF Deck
KRK-15B
B
RF Deck
KRK-15B
Head A
Control
A
RF Deck
KRK-15B
Control
Head B
C
RF Deck
KRK-15B
B
RF Deck
KRK-15B
Head A
Control
A
RF
Deck
KRK-15B
RF Deck 1 RF Deck 2
RF Deck 3 RF Deck 1 RF Deck 2
RF Deck 3
Before DIP Switch Change After DIP Switch Change
Display Position of RF Deck No. 1:
Display Position of RF Deck No. 2:
Display Position of RF Deck No. 3:

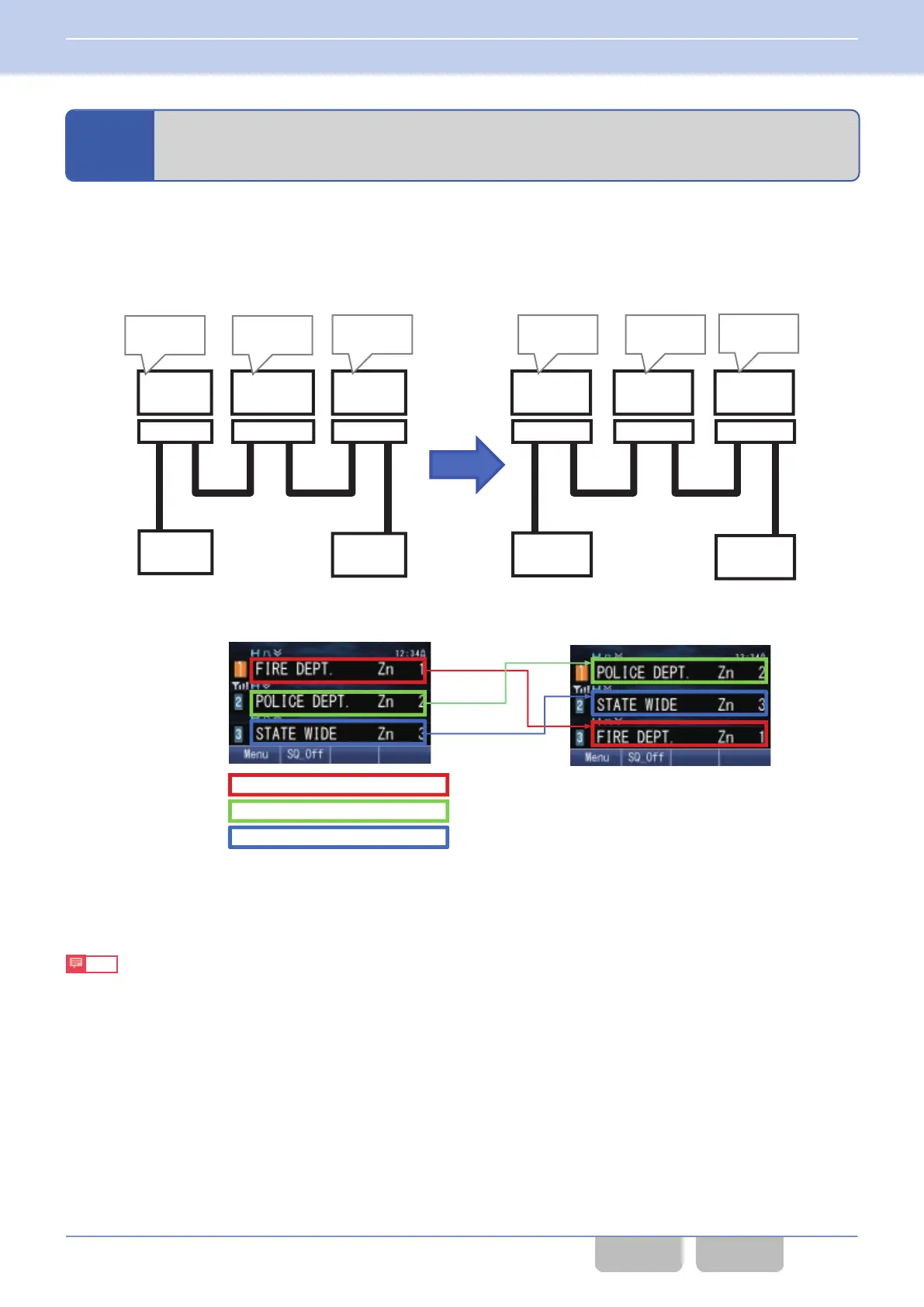

Figure 17-69 Changing the Display Position of a Channel Name in Multi RF Deck View
This section describes the procedure to switch an RF Deck number in a system of a Triple RF Deck/ Dual Control Head
structure.
Note
If switching an RF Deck number in a Multi RF Deck system, writing the configuration data is not required.
17 STRUCTURING A MULTI RF DECK/ MULTI CONTROL HEAD
17.9 Changing the Display Positions of a Channel Name and an Icon When Multi RF Deck View Is On
Common FUNC (K, F)/Ver 2.20 375
