Kenwood NX-5200K3 Common Function Reference

1
Press the Power switch of Control Head 1 or Control Head 2 to turn OFF the power.
2
Control Head
RF Deck C
KRK-15B
RF Deck B
KRK-15B
1
Control Head
RF Deck A
KRK-15B
Power OFF Power OFF
RF Deck 1
RF Deck 2
RF Deck 3
Control Head 1 Control Head 2

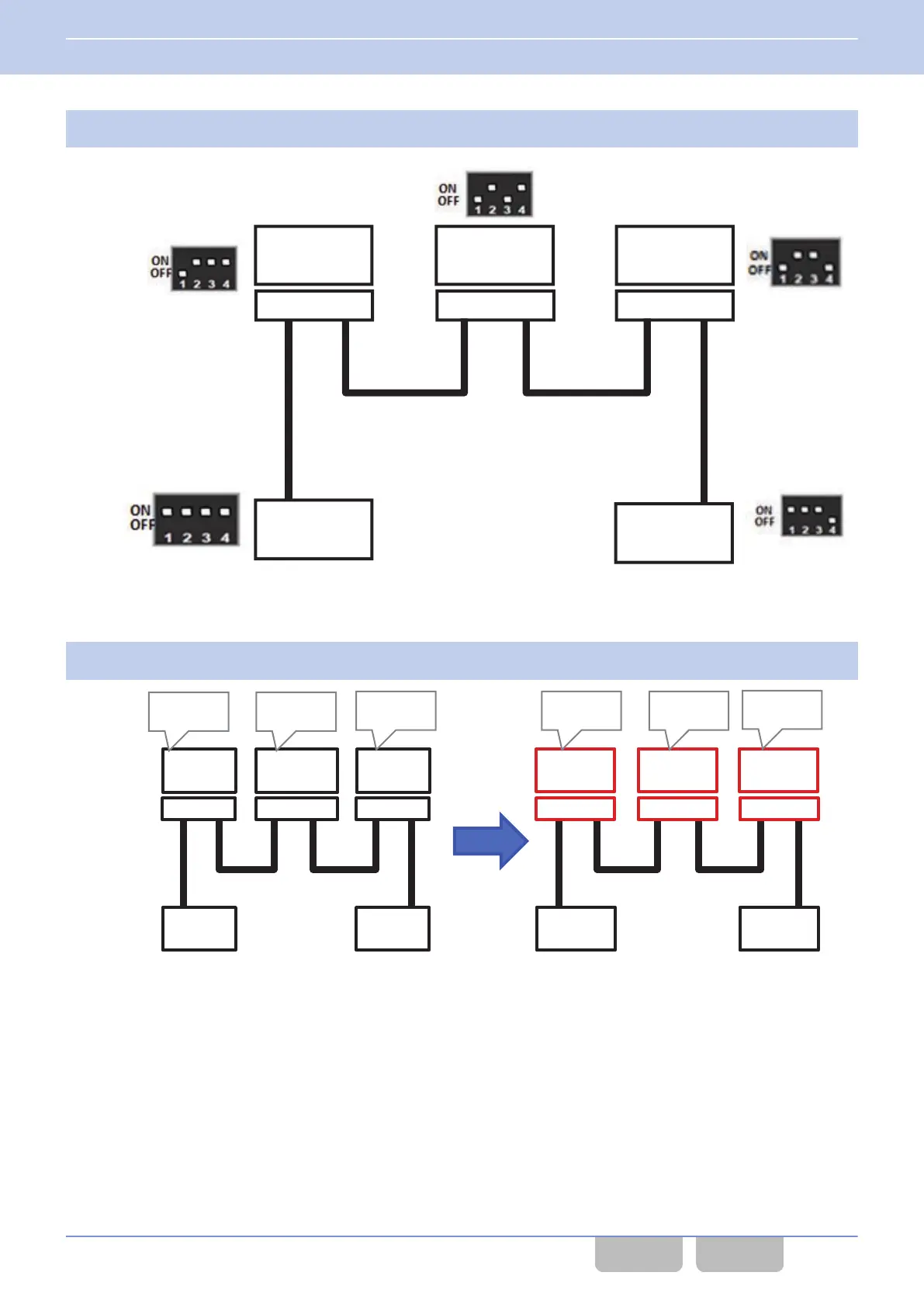

Figure 17-70 Triple RF Deck/ Dual Control Head (Power OFF)
2
Switch the RF Decks.
Head 2
Control
C
RF
Deck
KRK-15B
B
RF Deck
KRK-15B
Head 1
Control
A
RF
Deck
KRK-15B
Control
Head 2
C
RF
Deck
KRK
-
15B
B
RF Deck
KRK
-15B
Head 1
Control
A
RF
Deck
KRK-15B
RF Deck 1 RF Deck 2
RF Deck 3 RF Deck 1 RF Deck 2
RF Deck 3
Figure 17-71 Switching of RF Decks
17 STRUCTURING A MULTI RF DECK/ MULTI CONTROL HEAD
17.9 Changing the Display Positions of a Channel Name and an Icon When Multi RF Deck View Is On
Common FUNC (K, F)/Ver 2.20 376
CONTENTS INDEX
