Category Icon Frame

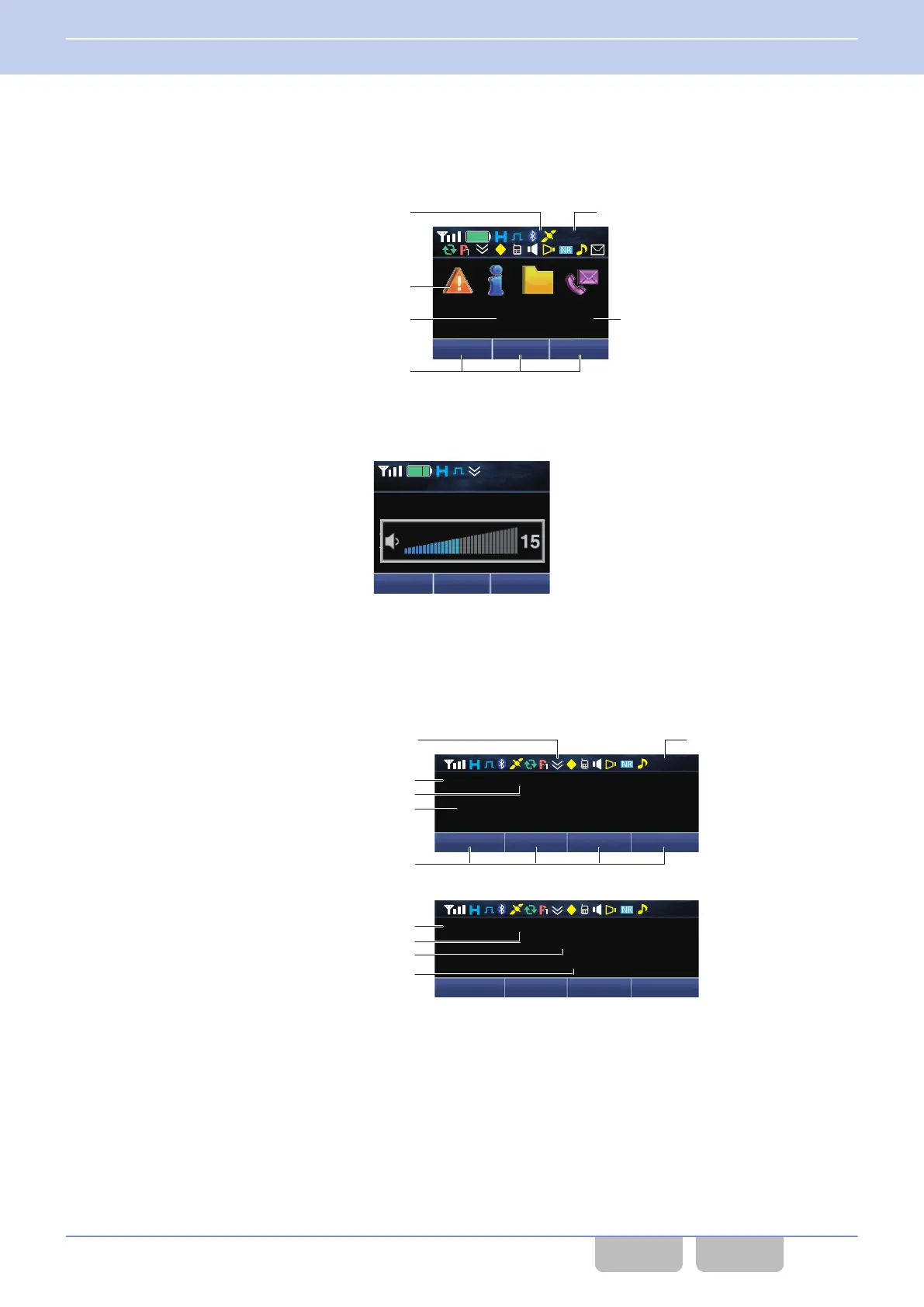

This frame is used to display the Menu Category in Icon Mode. Displays vary depending on the configuration in Menu
Icon Size. The following screens are display examples if Menu Icon Size is configured “Large”. (Refer to Using Menu
Mode.)
12 : 34
A
M
XXXXX XX
XXX XXX XXX
Icon
Category Icon
Key Guide (6 characters)
Clock
Category Name (18 characters) List Number
0
Popup Display
The popup appears when the adjustment of the volume level or the operation of Key Lock occurs.
Menu
XXXXX
XXXXX
XXXXX
XXXXX
12 : 34
A
M
Zone +
Mobile (KCH-19 (Basic Panel))
0
Basic Frame
This
frame is used to display the name, such as the channel name. Various icons indicating the transceiver’s status appear
in the icon display area.
12 : 34
A
M
XXX XXX XXX XXX
XXXXXX XXXXX
XXXXX
12 : 34
A
M
XXX XXX XXX XXX
XXXXXX XXXXX
XXXXXXXXXXXXXX
XXXXXXXXXXXXXXXXXX
Icon
Sub Display (6 characters)
Main LCD (14 characters)
Key Guide (6 characters)
Clock
Supplementary Field 1 (18 characters)
Sub Display (6 characters)
Main LCD (14 characters)
Supplementary Field 1 (18 characters)
Supplementary Field 2 (18 characters)
1 FUNCTIONS AND PANEL LAYOUT
1.3 About LCD
Common FUNC (K, F)/Ver 2.20 10
