Key

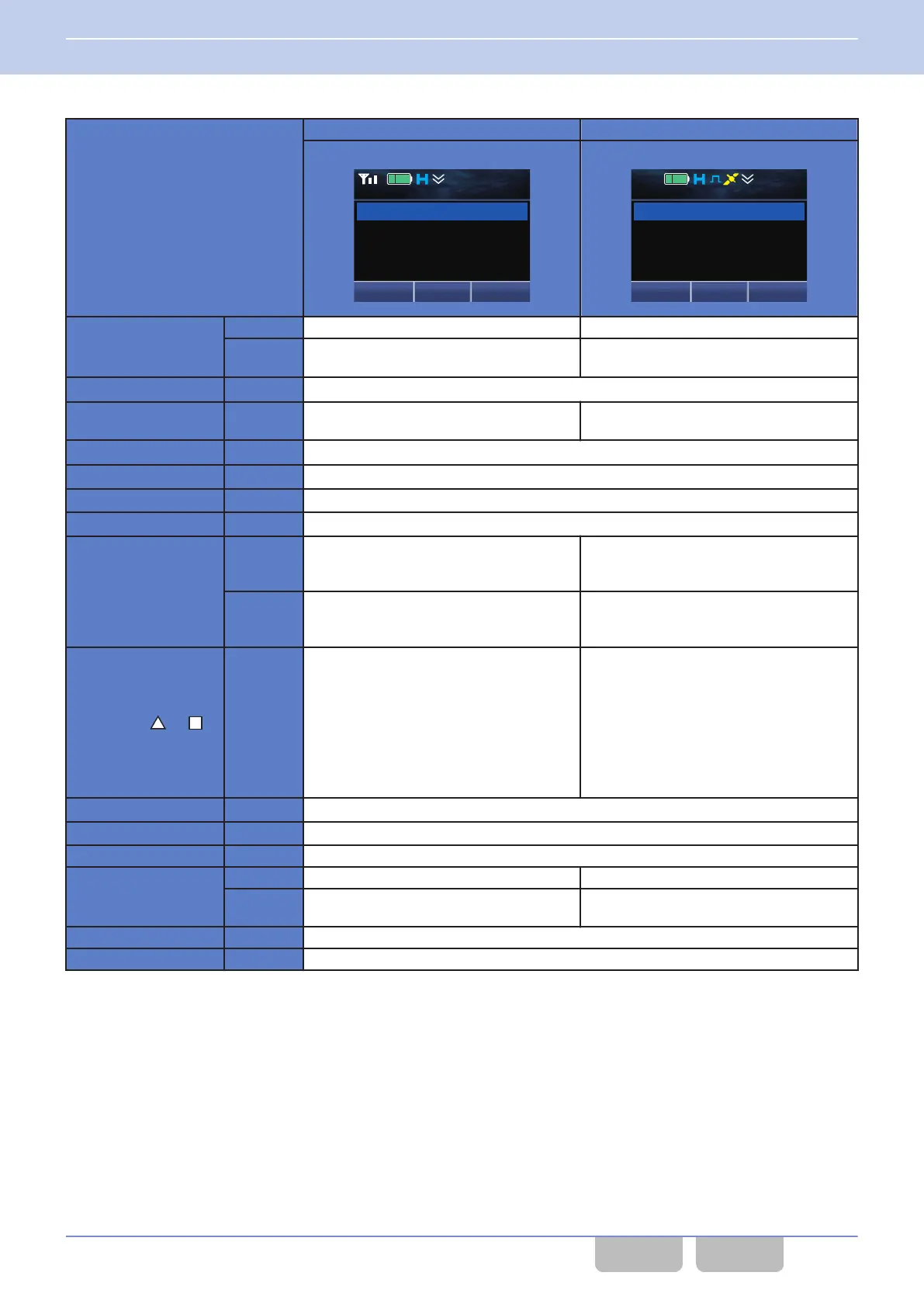

Maintenance Display Mode GPS Position Display Mode
NXDN Trunking
Maintenance 1
12 : 34
A
M
RSSI Level -96dBm
Site No.
1
Back
12 : 34
A
M
GPS Pos Disp
North 35
º
33.206
´
East
139
º
33.546
´
Altitude 1000m
BackExit
Menu ([Q])
Press - Aborts the current mode.
Hold
Down
-
Pauses or resumes the automatic
switching of the display (Mobile only).
Back ([O])
Press Returns to the menu (if the transceiver enters this mode by pressing the Menu key).
Function ([W])
Hold
Down
-
Pauses or resumes the automatic
switching of the display (Mobile only).
Home ([T])
Press Aborts the current mode.
Side 1
*1
or [+]
*2
Press The configured function functions.
Side 2
*1
or [-]
*2
Press The configured function functions.
Side 3
*1
Press The configured function functions.
[G]/ [H]
Press
Changes the channel number. Selects the displayed latitude, longitude or
altitude by changing each of them one at
a time. (Mobile only)
Hold
Down
Changes the channel number
continuously.
Selects display of latitude, longitude or
altitude by changing each of them
continuously. (Mobile only)
[E]/
[F] or [
]/ [ ]
*2
Press
Switches the display.
RSSI/ Site Number Display N RSSI/ BER
Display N Frequency Display N RSSI/
Site Number Display N ...
RSSI/ Site Number Display N Frequency
Display N RSSI/ BER Display N RSSI/
Site Number Display N ...
-
Selector
*3
- The configured function functions after aborting the current mode.
Lever Switch
*4
- The configured function functions after aborting the current mode.
[0] to [9] Press -
[*]
Press - Aborts the current mode.
Hold
Down
-
Pauses or resumes the automatic
switching of the display (Mobile only).
[#] Press Returns to the menu (if the transceiver enters this mode by pressing the Menu key).
PTT Switch Press Transmits.
*1
Portable/ KCH-21R (Handheld Control Head) only
*2
KCH-20R (Featured Panel) only
*3
Portable/ KCH-20R (Featured Panel) only
*4
Portable only
20 KEY OPERATIONS FOR EACH MODE
Common FUNC (K, F)/Ver 2.20 429
