Kenwood NX-5200K3 Common Function Reference

Key

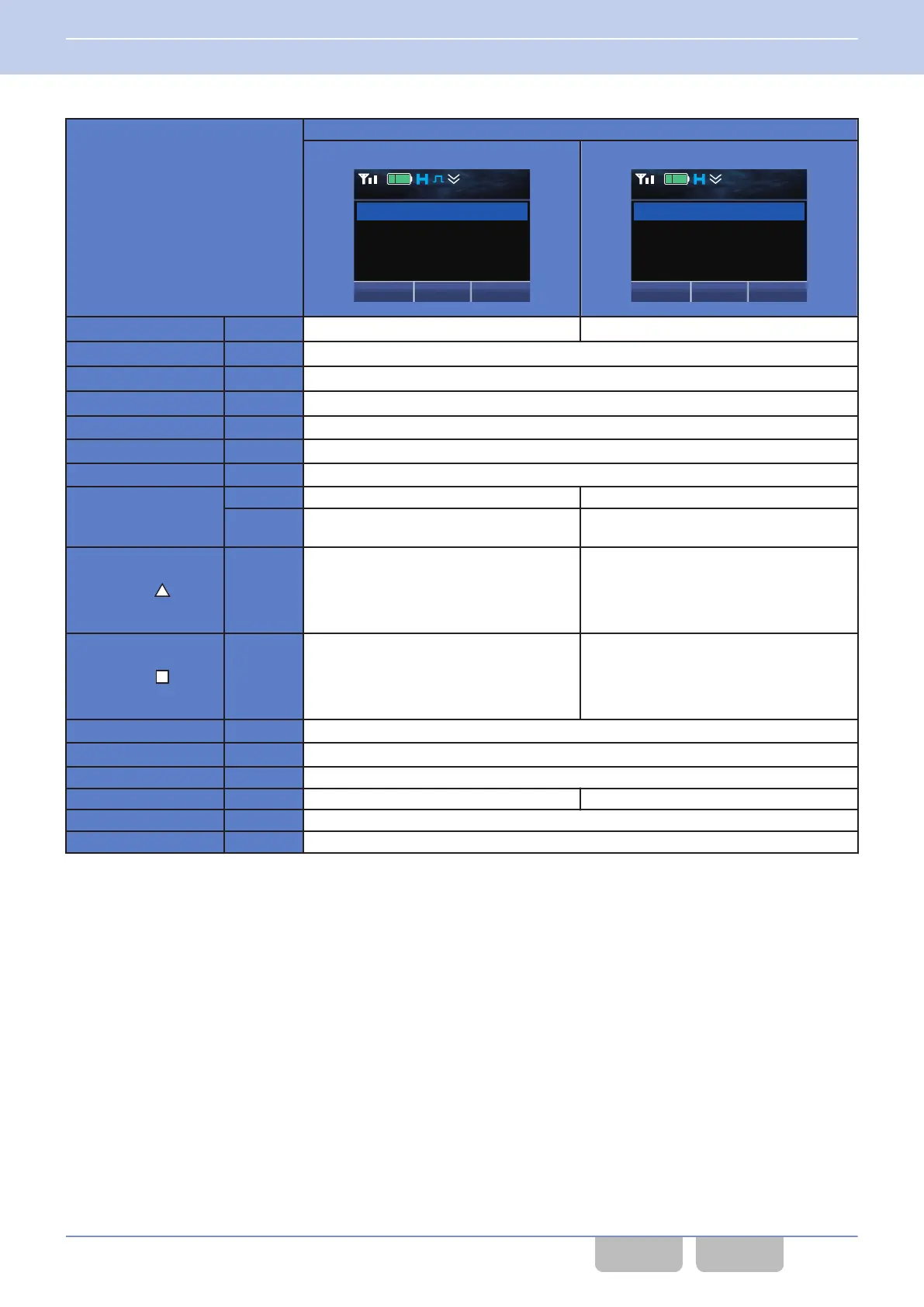

Maintenance Display Mode
Conventional
Maintenance ----
12 : 34
A
M
RSSI Level -96dBm
Back
P25 Trunking
Maintenance 5
12 : 34
A
M
RSSI Level -96dBm
Site 123- 45
BackSelect
Menu ([Q])
Press - Confirms the channel.
Back ([O])
Press Returns to the menu (if the transceiver enters this mode by pressing the Menu key).
Function ([W])
Press -
Home ([T])
Press Aborts the current mode.
Side 1
*1
or [+]
*2
Press The configured function functions.
Side 2
*1
or [-]
*2
Press The configured function functions.
Side 3
*1
Press The configured function functions.
[G]/ [H]
Press - Changes the channel number.
Hold
Down
-
Changes the channel number
continuously.
[E] or [ ]
*2
Press
- Switches the display.
RSSI/ Site Display N ID/ CH No. Display
N Frequency Display N RSSI/ Site
Display N
...
[F] or [ ]
*2
Press -
Switches the display.
RSSI/ Site Display N Frequency Display
N ID/ CH No. Display N RSSI/ Site
Display N
...
Selector
*3
- The configured function functions after aborting the current mode.
Lever Switch
*4
- The configured function functions after aborting the current mode.
[0] to [9] Press -
[*] Press - Confirms the channel.
[#] Press Returns to the menu (if the transceiver enters this mode by pressing the Menu key).
PTT Switch Press Transmits.
*1
Portable/ KCH-21R (Handheld Control Head) only
*2
KCH-20R (Featured Panel) only
*3
Portable/ KCH-20R (Featured Panel) only
*4
Portable only
20 KEY OPERATIONS FOR EACH MODE
Common FUNC (K, F)/Ver 2.20 428
