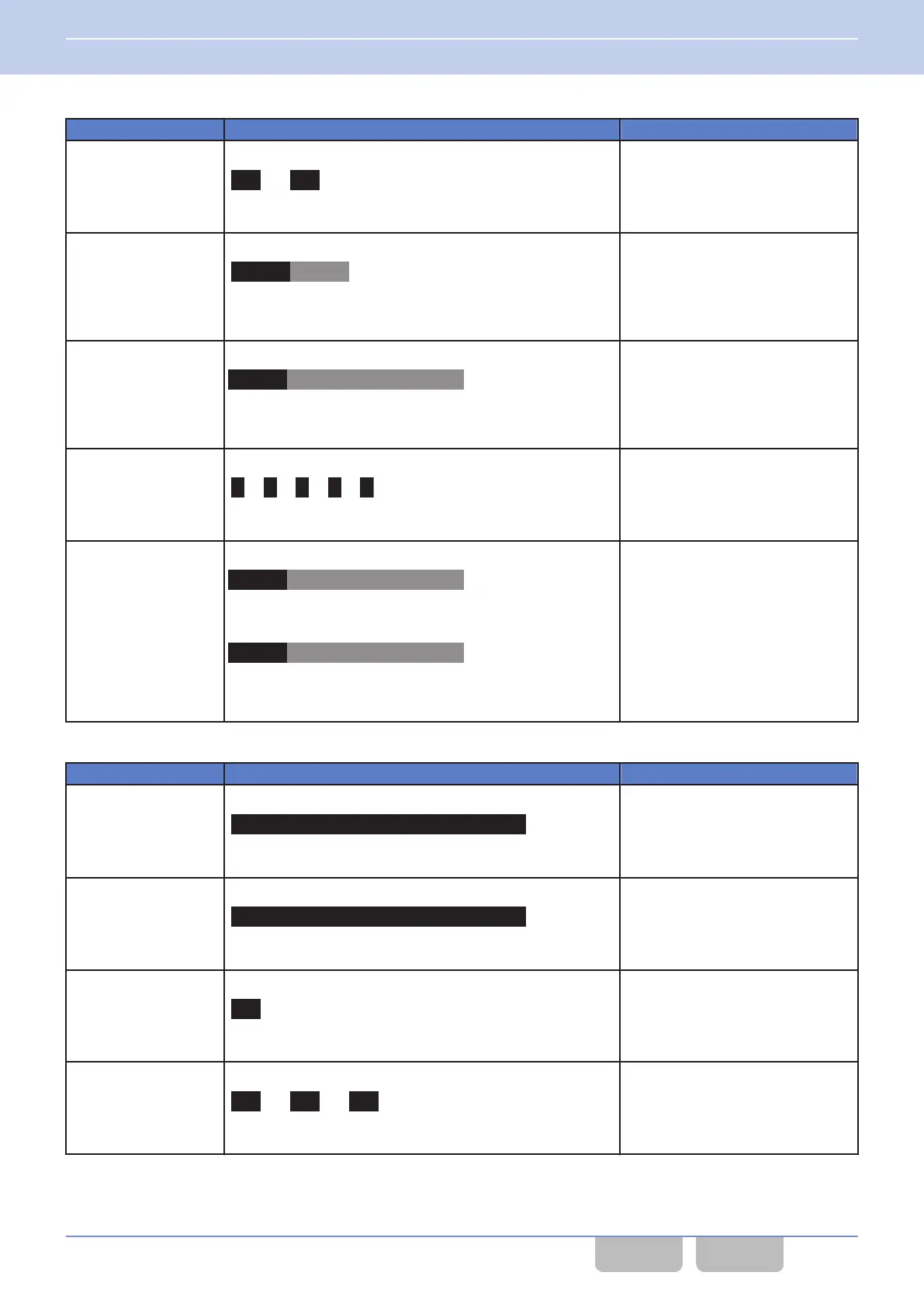

Kenwood NX-5200K3 Common Function Reference
4
of 1
of 1 rating
476 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
Tone Name
Pattern
Reference
Bluetooth Find Device
Mode Tone
2 beeps
940 Hz
(50 ms)
Control Tone
Bluetooth Find Device
Bluetooth Connect
Tone
2 beeps
980 Hz
(100 ms)
1920 Hz
(100 ms)
Control Tone
Bluetooth Find Device
Define Bluetooth Device
Pairing Request
Bluetooth Disconnect
Tone
2 beeps
490 Hz
(300 ms)
980 Hz
(100 ms)
Control Tone
Bluetooth My Devices
HSP Disconnection
Complete Tone
5 beeps
980 Hz
(20 ms)
Control Tone
Record Stopped Tone
4 beeps
700 Hz
(300 ms)
940 Hz
(100 ms)
700 Hz
(300 ms)
940 Hz
(100 ms)
Voice Memo
0
Warning Tone
Tone Name
Pattern
Reference
Warning Tone A
continuous beep
700 Hz (until the
PTT
switch is released)
Stack
Warning Tone
Warning Tone B
1 beep
700 Hz
(1 sec)
Warning Tone
Warning Tone C
1 beep
700 Hz
(50 ms)
Warning Tone
TOT Pre-alert Tone
3 beeps
1630 Hz
(50 ms)
Warning Tone
21 BEEP LIST
Common FUNC (K, F)/Ver 2.20
433
CONTENTS
INDEX
463
465
