Power Measurement 3
8 Note the highest [Range] that the instrument automatically set during
this set of measurements.
9 Move to the Power Meter channel and press the [Details] softkey.
10 Move to the [Range Mode] parameter and press Enter.
11 Move to <Manual>, by using the cursor key, and press Enter.
12 Move to the [Range] parameter and press Enter.
13 Enter the range value determined in step 8, by using the cursor key,
and press Enter.

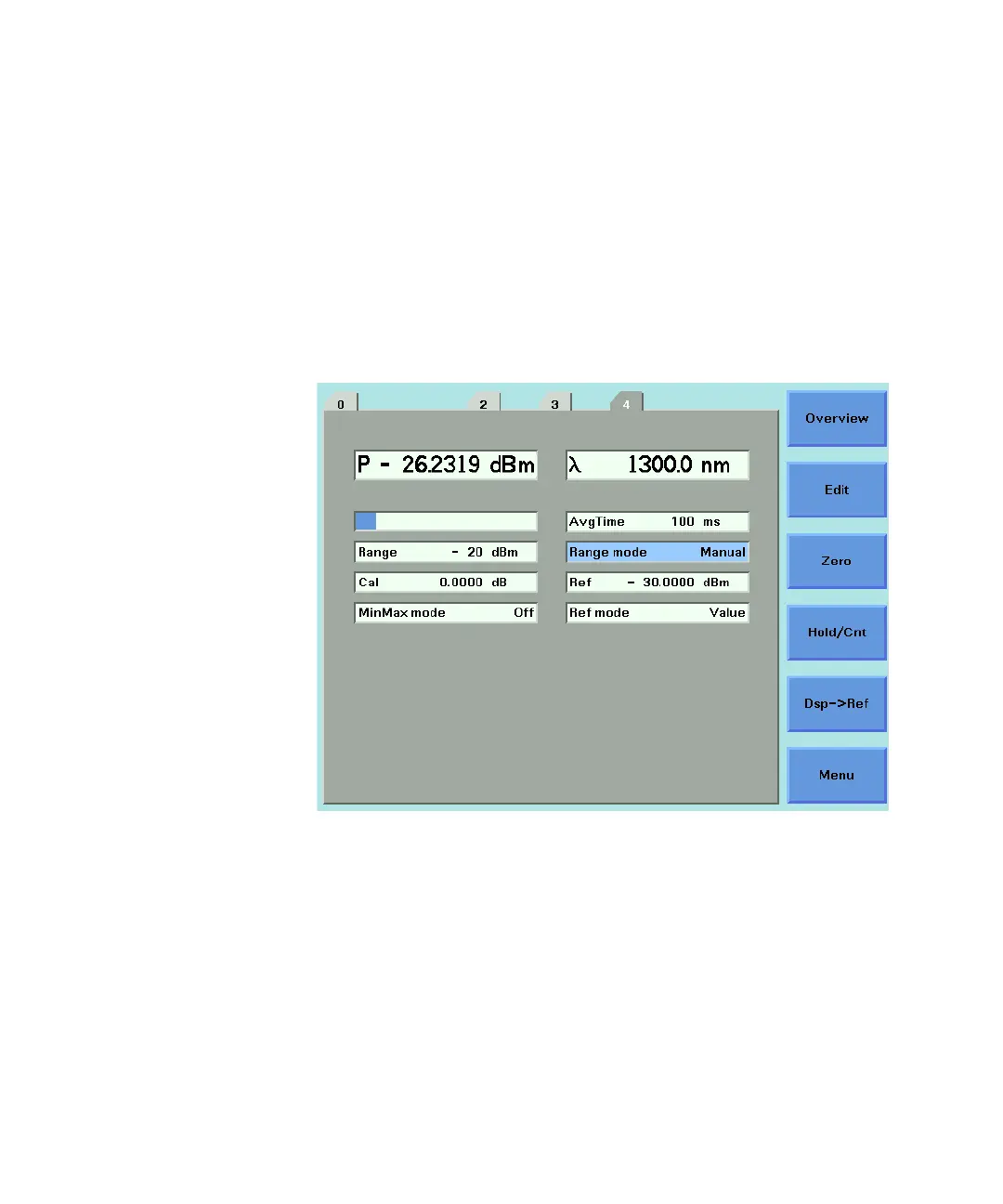

Figure 63 Manual Range Mode - Within Range
If the measured power is more than 3dBm greater than the range setting,
it is impossible for power to be displayed. The power value, +1.--- dBm, as
shown in Figure 64 on page -112, is shown. This means that the measured
power is greater than the Upper Power Limit. You must decrease the
[Range] value.
See Table 11 on page -114 for more details.
