8163A/B, 8164A/B, 8166A/B User’s Guide 55
Getting Started 1
3 Type 755.000 on the numerical keypad and press Enter.
How to Make a Small Change to a Continuous Parameter
For small changes to a parameter use the up and down cursor keys, the
numerical keypad (if you are using the 8164A/B), or the modify knob (if you
are using the 8164A/B).
Move to the parameter and then:
1 Press [Edit]. The first digit before the decimal point will be highlighted
first, as shown in Figure 24.

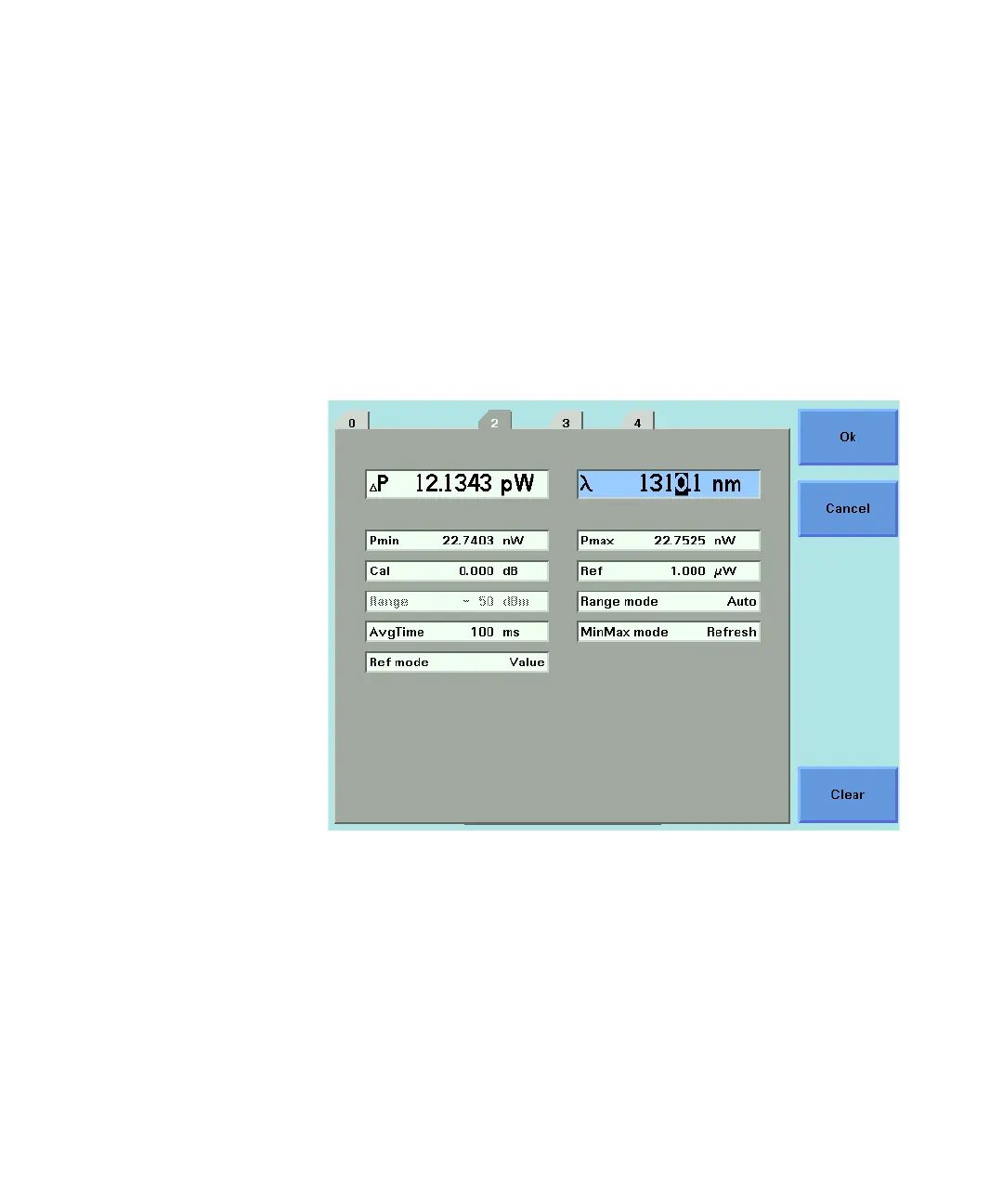

Figure 24 The First Digit Before the Decimal Point is Highlighted First
4 If you want to select another digit to edit, use the left or right cursor
key.
5 Enter the new value for the digit by using the numerical keypad, the
up and down cursors or turning the modify knob.
6 Repeat steps 2 and 3 to continue editing the value.
7 When you have finished editing the value, press Enter. The edited
value becomes the new value of the parameter.
