How to Use a Variable Optical Attenuator module
The User Interface
The Overview Display

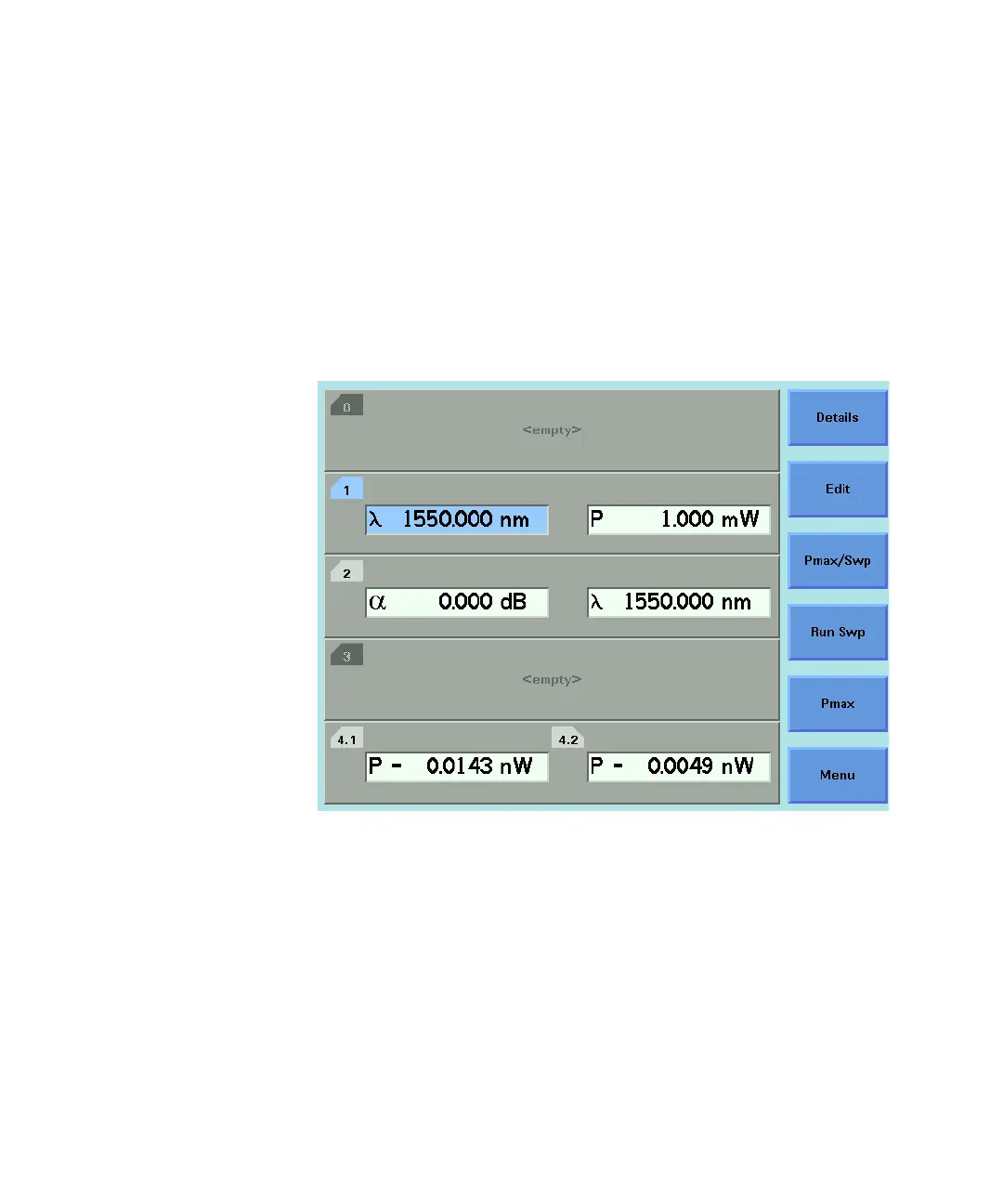

Figure 133 on page -216 is an Overview screen taken from an 8164A/B
mainframe.
Figure 133 81570A/71A/73A Attenuator module, 8164A/B GUI Overview
Here:
• Slot 1 hosts a tunable laser,
• Slot 2 hosts an 81570A/71A/73A Attenuator module,
• Slot 4 hosts a reference powermeter.
