8163A/B, 8164A/B, 8166A/B User’s Guide 299
Applications 10

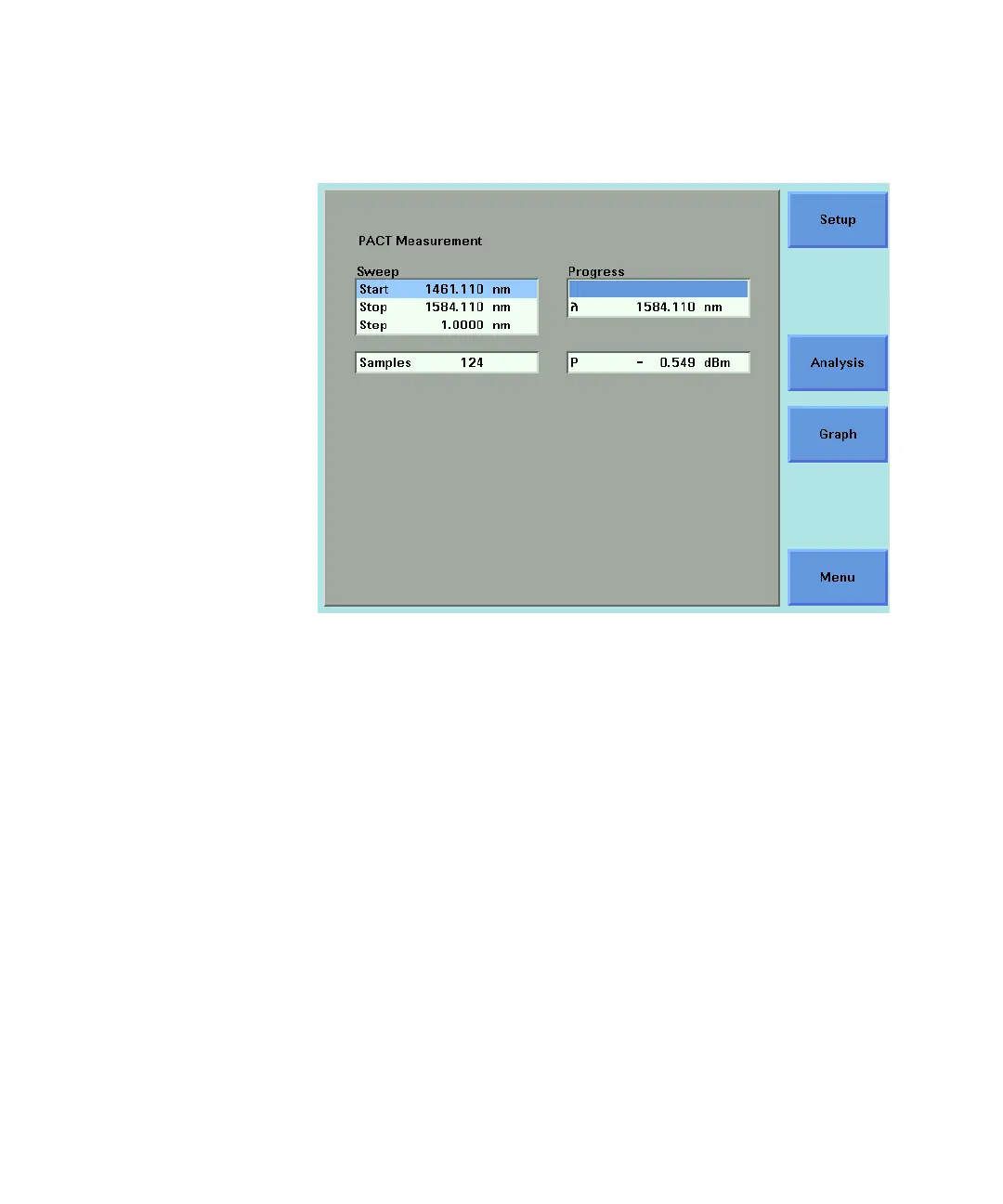

Figure 185 The PACT Measurement Screen - Measurement Completed
Analysing a PACT Measurement
You can access the PACT Analysis screen after the PACT Measurement
completes, by completing the following instructions:
27 You cannot access the PACT Analysis screen from the graph. If you are
viewing the graph, press [Close].
28 Press [Setup]. The Logging Analysis screen appears as shown in Figure
166 on page -270.
