8163A/B, 8164A/B, 8166A/B User’s Guide 119
Power Measurement 3
How to Hold the Screen
Pressing the [Hold/Cnt] softkey allows you to hold the screen so that no
new measurements are displayed. Hold is displayed as shown in Figure 69
on page -119.

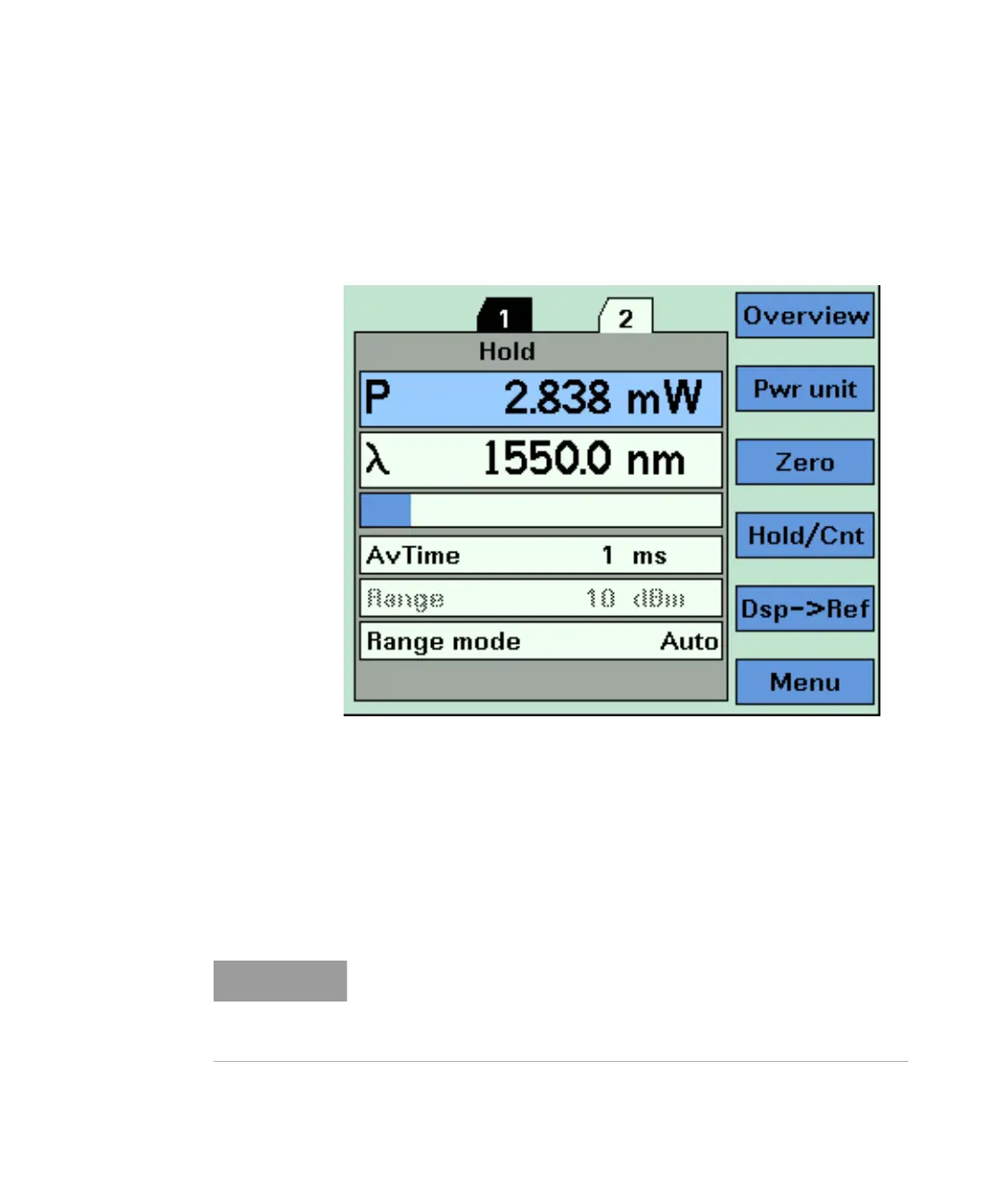

Figure 69 Power Module Channel is Held - Overview Screen
By pressing the [Hold/Cnt] softkey a second time the screen will display
new measurements continuously.
How to Use Triggers
Keysight 8163A/B Series Power Meter modules allow you trigger the
instrument to perform tasks and to output trigger signals to external
measurement instruments.
For a Dual Power Sensor, you cannot set the averaging time of the slave
channel, channel 2, directly. By default, the averaging time of the slave
channel, channel 2, is the same value as that for the master channel,
channel 1. See
Table 12 on page -122 for more details.
