8163A/B, 8164A/B, 8166A/B User’s Guide 73

Additional Information 2

How to Configure LAN

User Interface

Some new entries have been added to the Configuration menu,

which can be opened with the [Config] hard key:

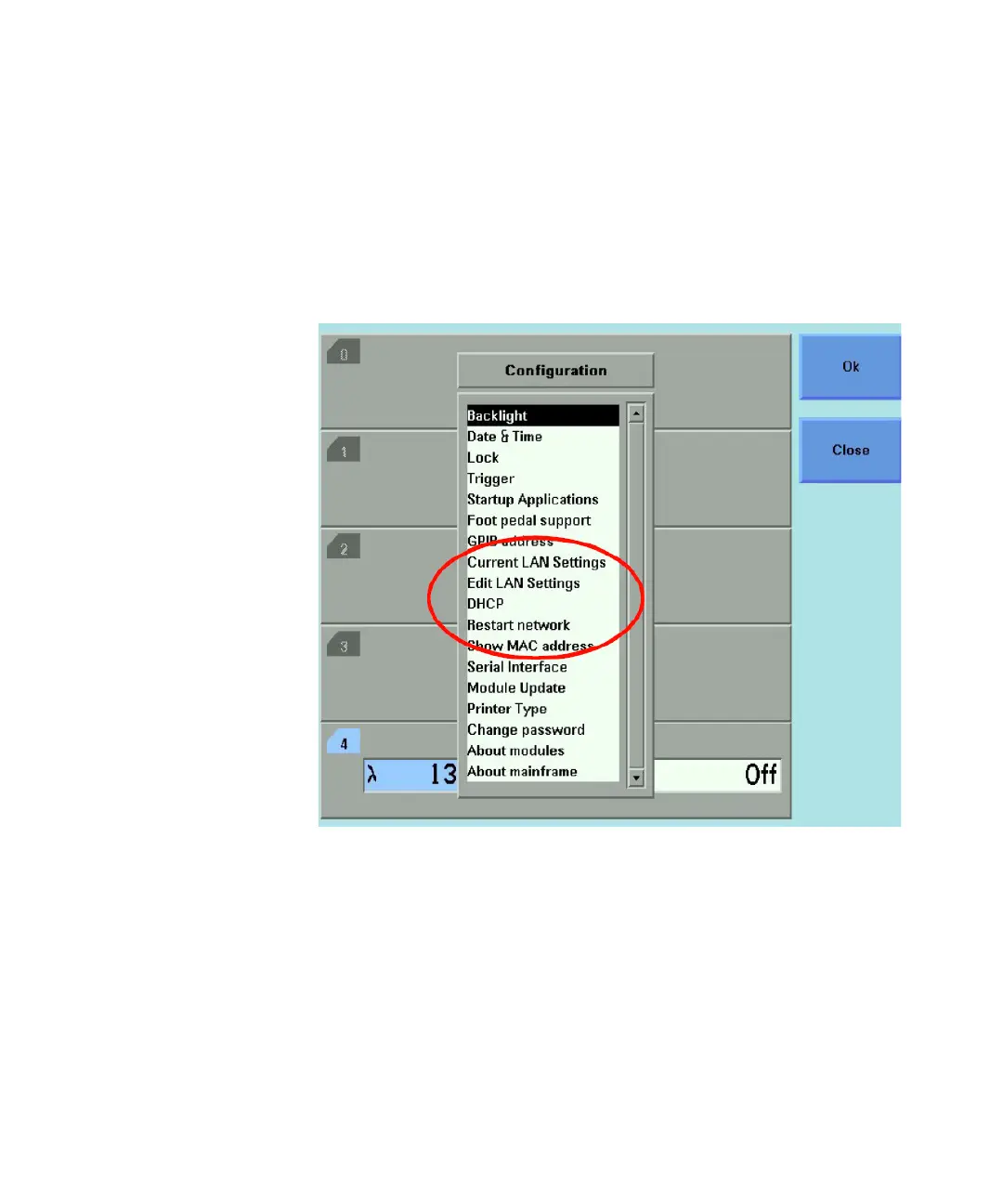

Figure 35 Configuration Menu
