324 8163A/B, 8164A/B, 8166A/B User’s Guide
11 Installation and Maintenance

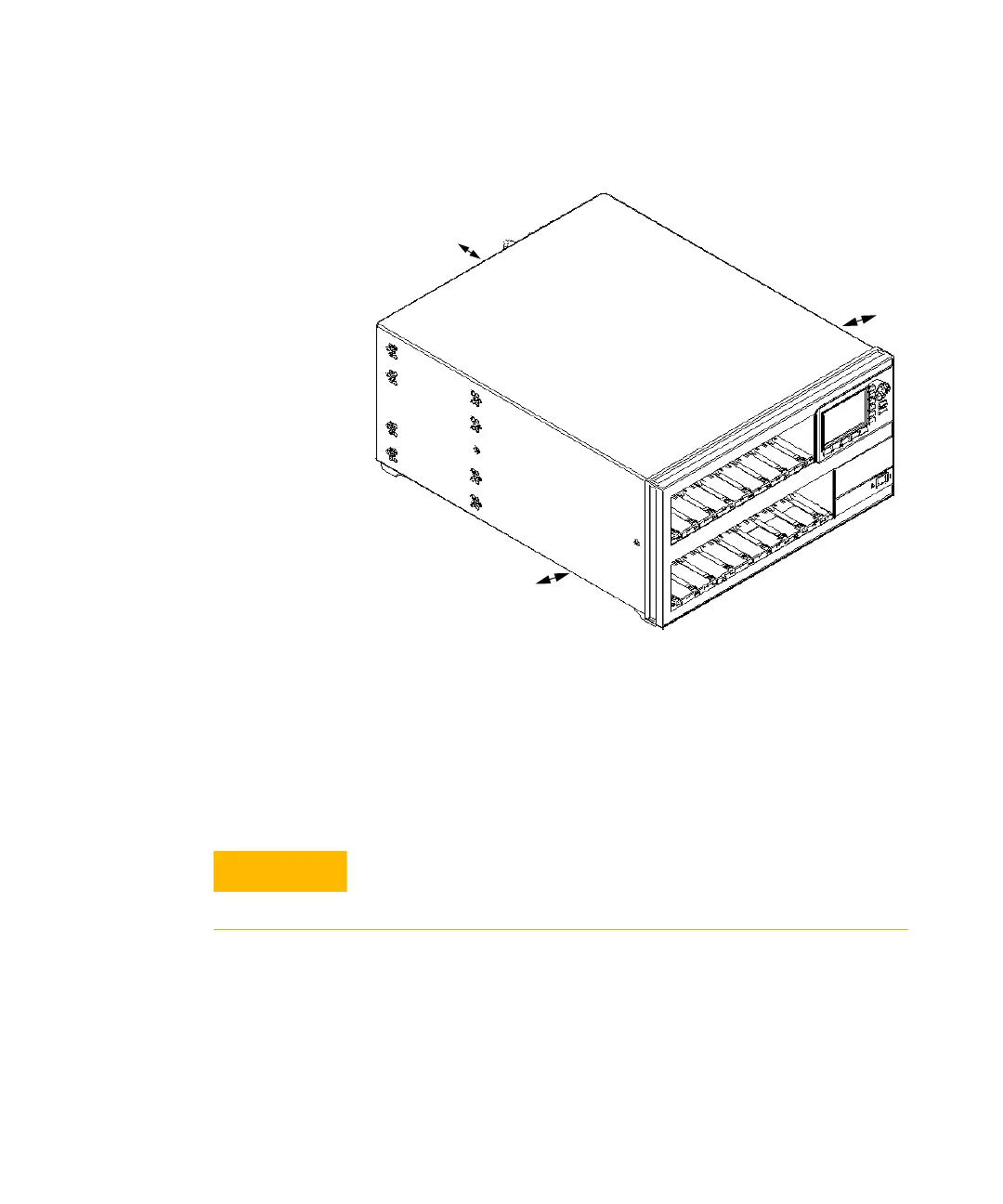

Figure 200 Correct Operating Position of the 8166A/B
Storage Position
The Keysight 8164A/B Lightwave Measurement System can be stored in
its operating position, as shown in Figure 198, or on its back legs as shown
in Figure 201 on page -325. The back legs protect the connectors on the
back panel from damage.
25 mm
(1 inch)
25 mm
(1 inch)
75 mm
(3 inches)
Before positioning the 8164A/B Lightwave Measurement System on its
back legs. Make sure that the instrument is in stand-by mode and
disconnect all connections to the back panel.
