8163A/B, 8164A/B, 8166A/B User’s Guide 125
Laser Sources 4

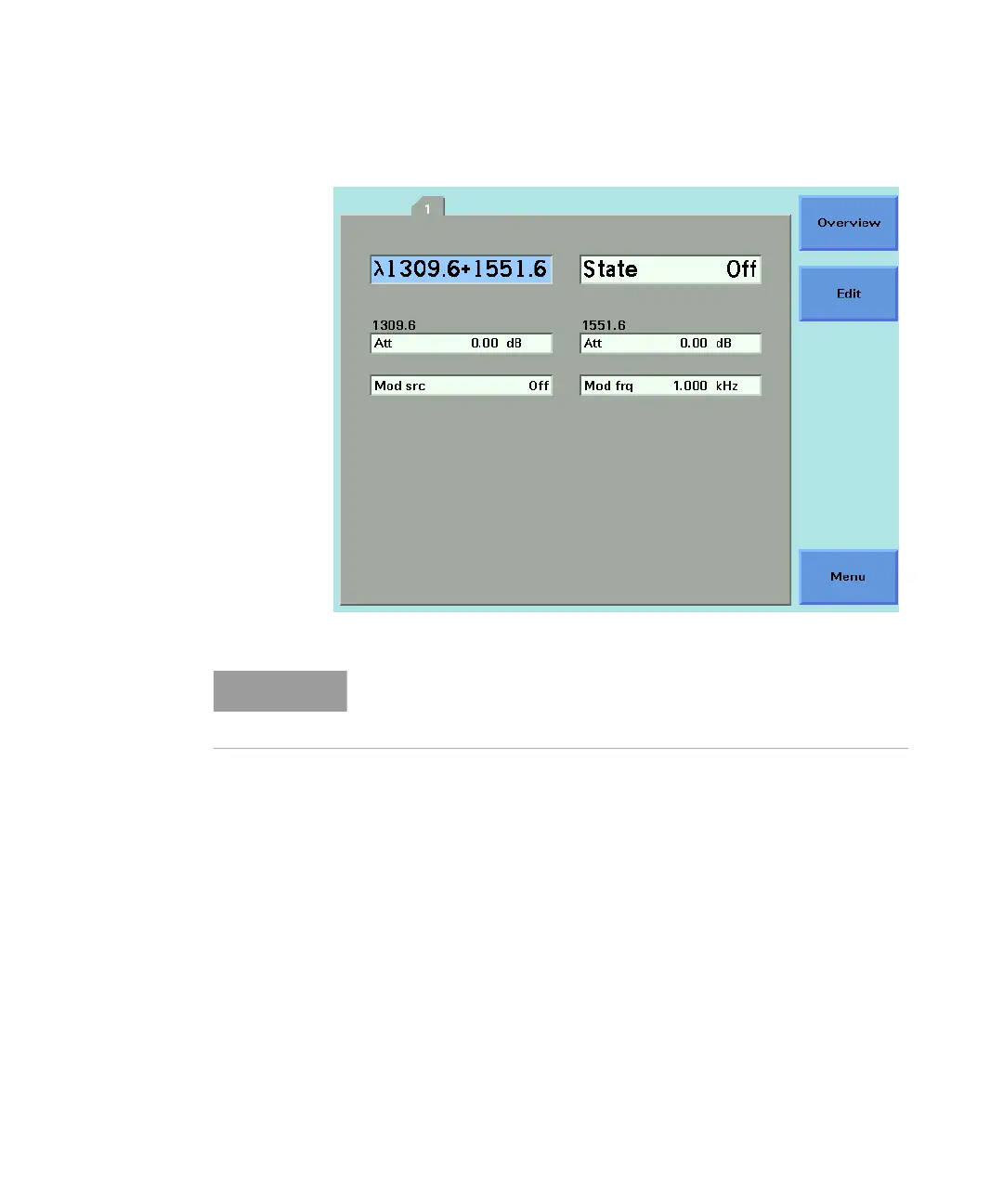

Figure 73 Dual-Wavelength Laser Source Outputs Both Wavelength
How to Enable/Disable Laser Output
To enable laser output using the user interface:
1Move to [State] parameter and press Enter.
2Move to [On], by using the cursor key, and press Enter. The green LED
on the module front panel switches on.
To disable laser output using the user interface:
1Move to [State] parameter and press Enter.
2Move to [Off], by using the cursor key, and press Enter. The green LED
on the module front panel switches off.
For further information on modulating the optical output of a
dual-wavelength laser source module, see
How to Modulate
Dual-Wavelength Laser Source Modules
on page 128.
