130 8163A/B, 8164A/B, 8166A/B User’s Guide
4 Laser Sources
How to Use Triggers
Some Laser Source modules allow you to output trigger signals to external
measurement instruments.
How to Use Output Triggering
You can configure the output trigger connector to output a TTL signal at
the frequency of the internal modulation of a Keysight 8163A/B Series
Laser Source module.
To set your module’s Output Trigger Configuration:
1See How to Set the Trigger Configuration on page 68 for how to
configure the trigger connectors.
2 Move to the Laser Source channel and press [Menu].
3Move to <Output Trigger Mode>, by using the cursor key, and press
Enter. You will see the screen in Figure 76 on page -130.

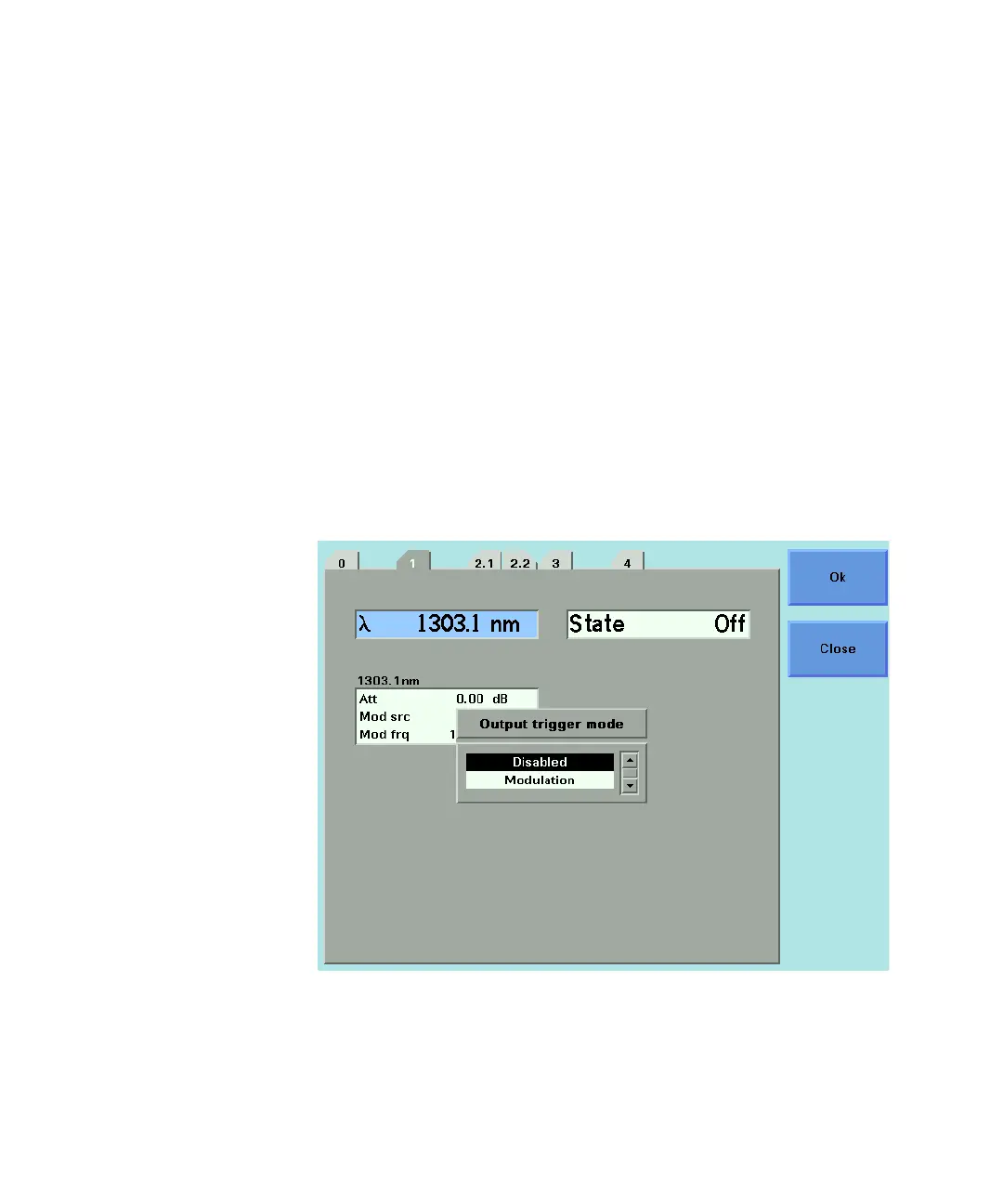

Figure 76 Output Trigger Mode
