How to Use an Optical Switch module
The User Interface
The Overview Display
Figure 144 on page -240 is an Overview screen taken from an 8164A/B
mainframe.

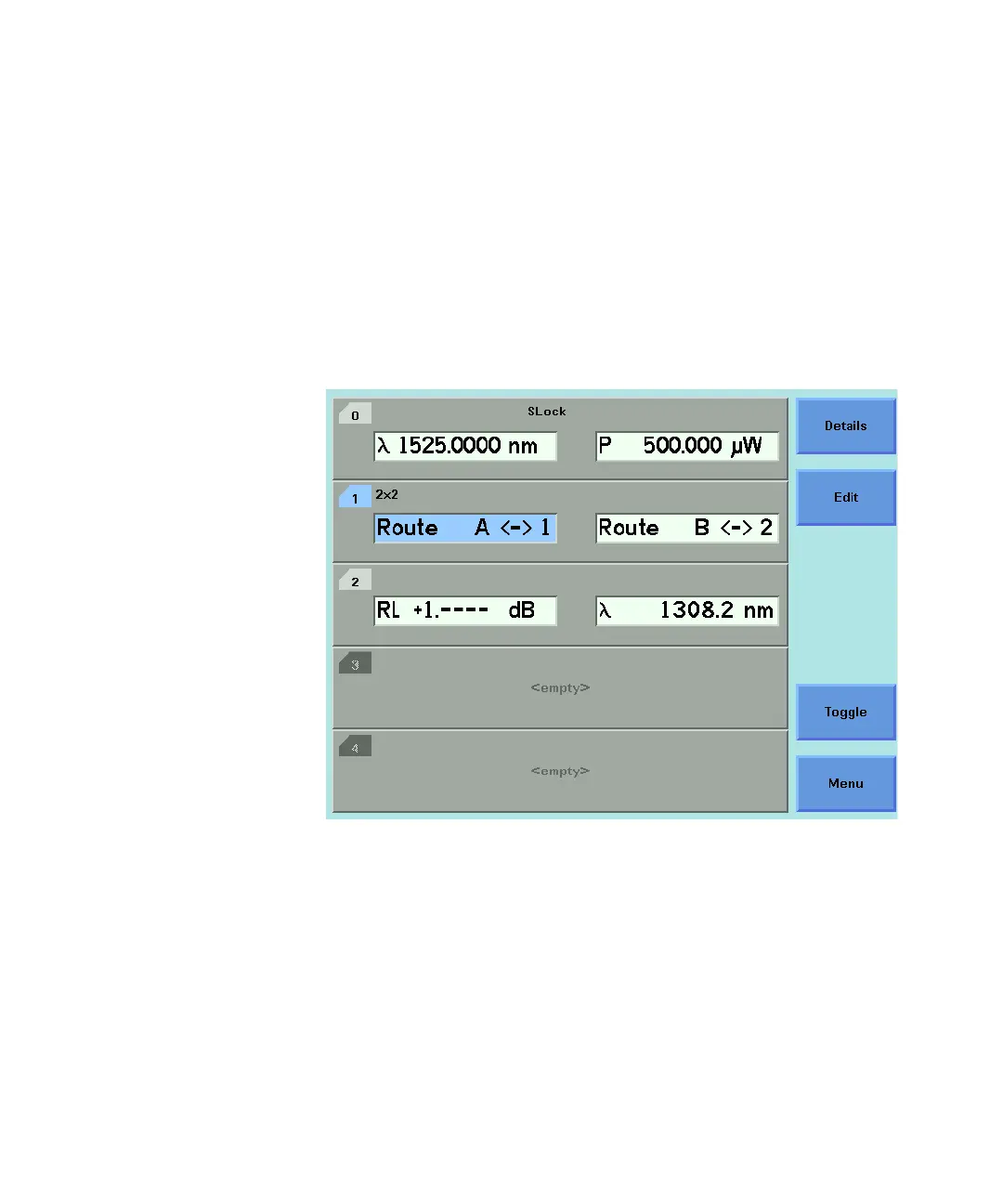

Figure 144 Optical Switch module, User Interface Overview display
Here:
• Slot 0 hosts a backloadable tunable laser,
• Slot 1 hosts a Keysight 81594B 2x2 non-blocking (crossover) switch,
• Slot 2 hosts a return loss module.
