8163A/B, 8164A/B, 8166A/B User’s Guide 241
Switching Optical Routes 9
The Optical Switch Details Display
To display the full user interface for the Optical Switch module, as shown
in Figure 145 on page -241, use the Cursor key to highlight the Optical
Switch slot, then press the [Details] softkey:

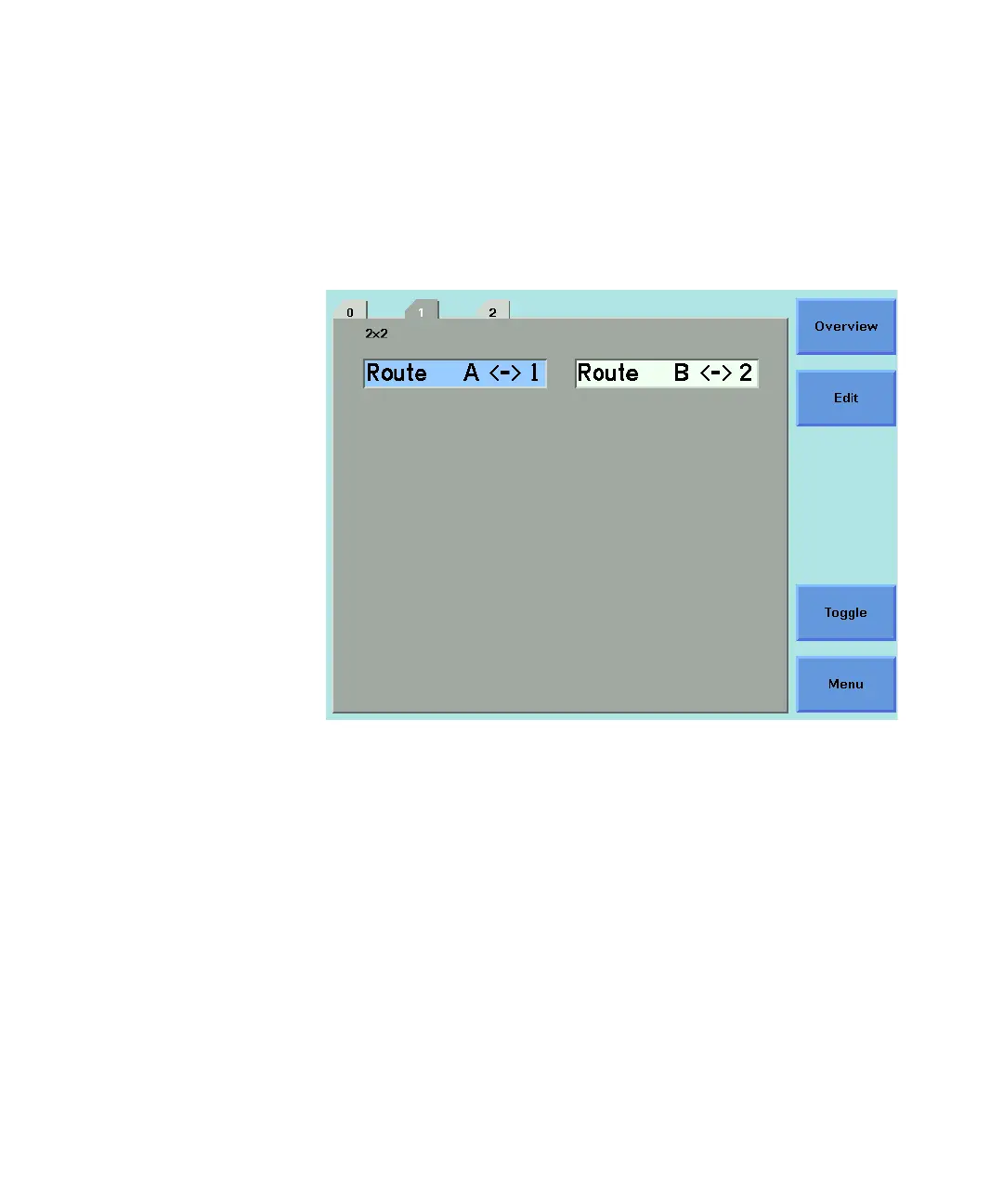

Figure 145 Optical Switch module, 8164A/B User Interface Details
Screen Elements
All the figures in this chapter are taken from an 8164A/B mainframe. The
user interface for an 8163A, 8163B, 8166A or 8163B mainframe may differ
in detail but the available functionality is identical.
Configuration
The Optical Switch configuration is indicated at the top left of the user
interface.
In Figure 145 on page -241, 2x2 indicates that this is a 81594B 2x2
non-blocking (crossover) switch.
