62 8163A/B, 8164A/B, 8166A/B User’s Guide

2 Additional Information

Using the System Utilities

Press the Config hardkey to access configuration information for your

mainframe. You see the screens in Figure 27 on page 62 and Figure 28 on

page 63.

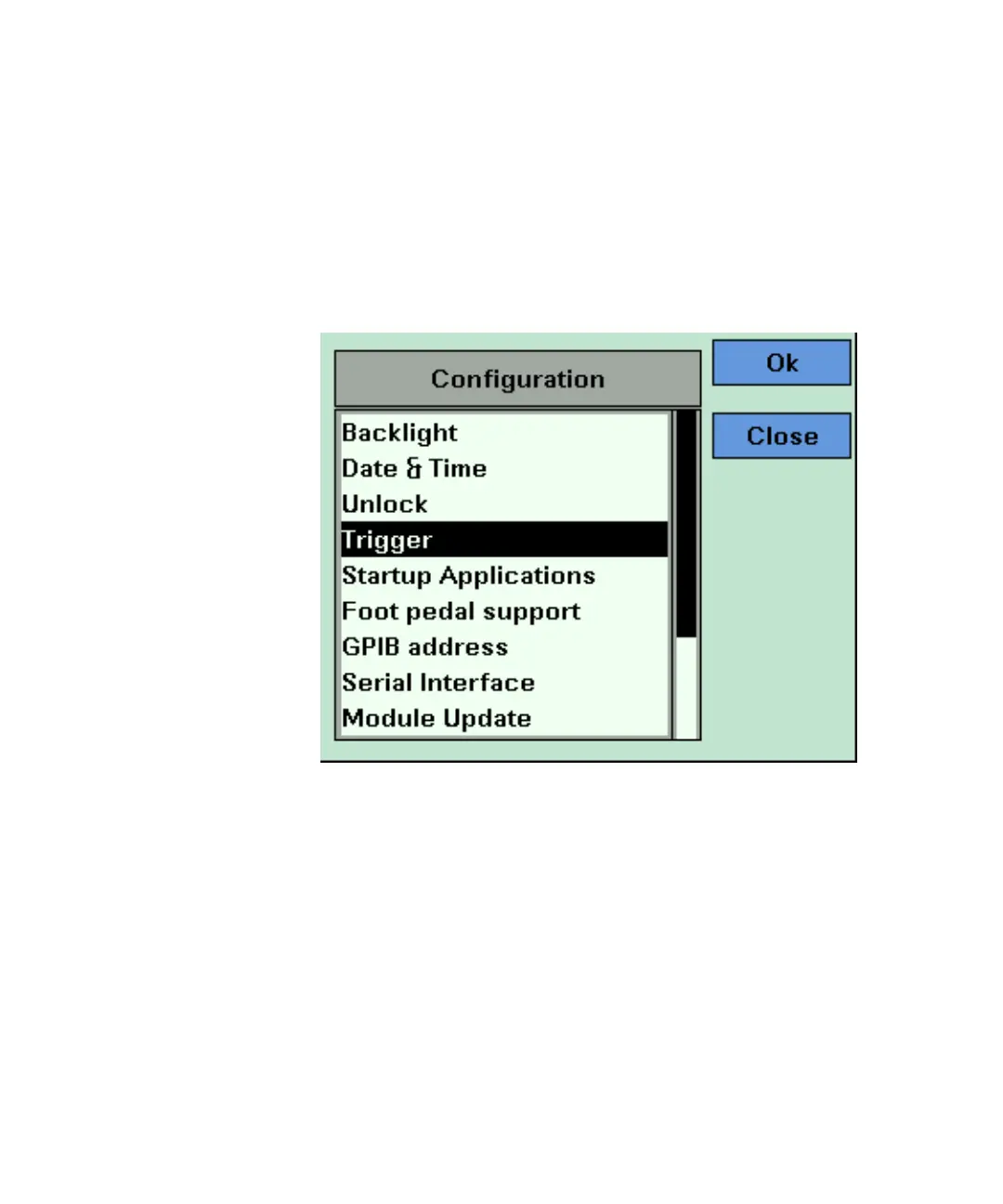

Figure 27 The 8163B/6B Configuration Menu
