36 8163A/B, 8164A/B, 8166A/B User’s Guide
1 Getting Started
8166A/B Lightwave Multichannel System

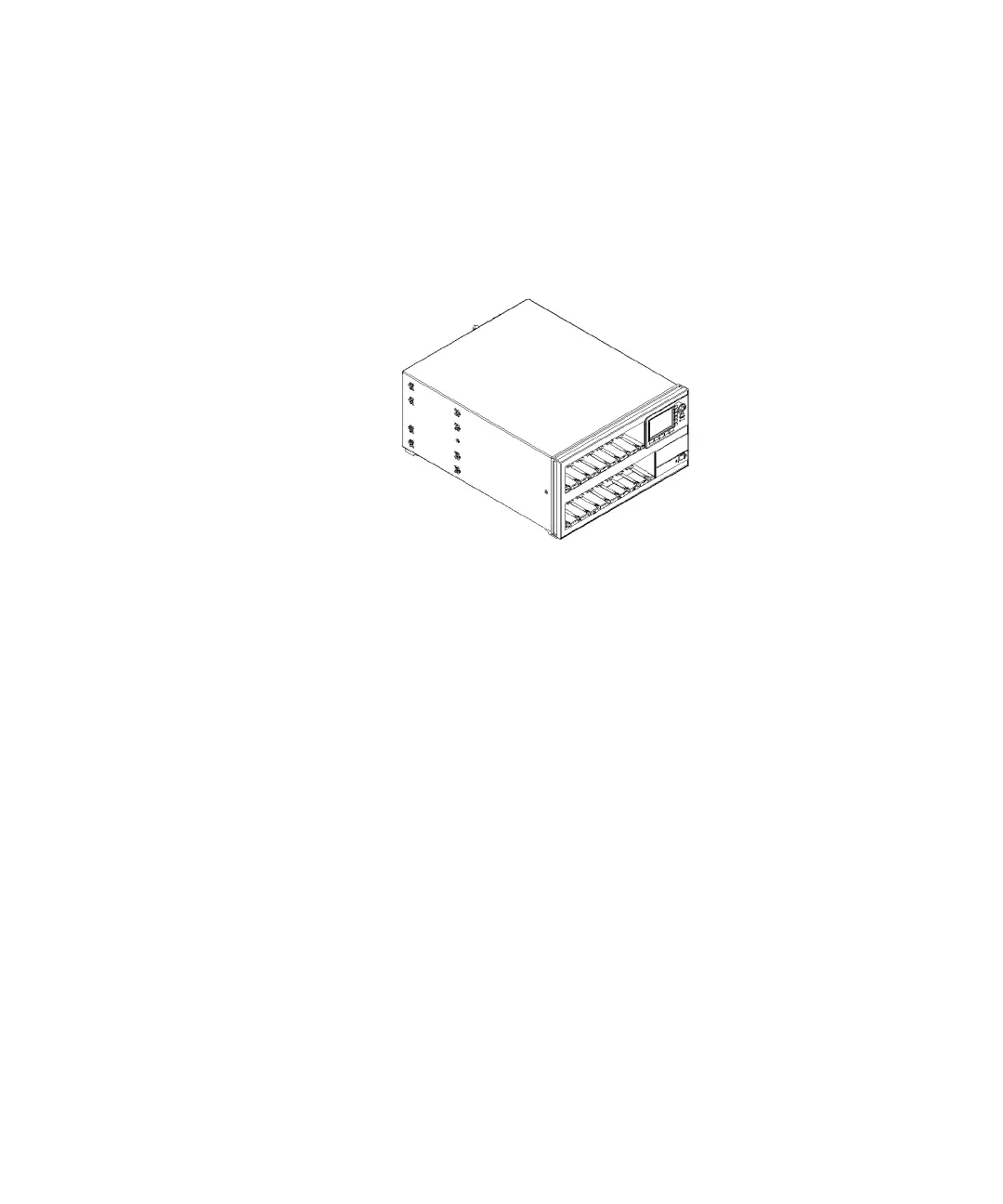

Figure 6 The 8166A/B Lightwave Multichannel System Mainframe
The 8166A/B Lightwave Multichannel System has 17 slim module slots.
The system can host up to seventeen front-loadable modules, of any
combination of the following types:
• compact Tunable Laser modules, such as the the Keysight 81960A,
• fixed wavelength Laser Sources, such as the Keysight 81655A,
• DFB Source modules, such as the Keysight 81663A,
• Power Sensors, both dual and single, such as the Keysight 81635A,
• Fast Power Sensor Modules, such as the Keysight 81636B,
• Interface Modules for Optical Heads, such as the Keysight 81618A,
• Return Loss Modules, such as the Keysight 81610A
• Attenuator Modules, such as the Keysight 81570A
• Optical Switch Modules. such as the Keysight 81595B,
The front-loadable module slots do not support any modules designed for
the 8153A Lightwave Multimeter.
