8163A/B, 8164A/B, 8166A/B User’s Guide 87
Additional Information 2
How to Set the Speed of the Serial Interface
To set the Baudrate of the instrument’s serial interface:
1Press the Config hardkey.
2 Move to the <Serial Interface> menu option and press Enter. You see a
box displaying all the available line speeds in bps.

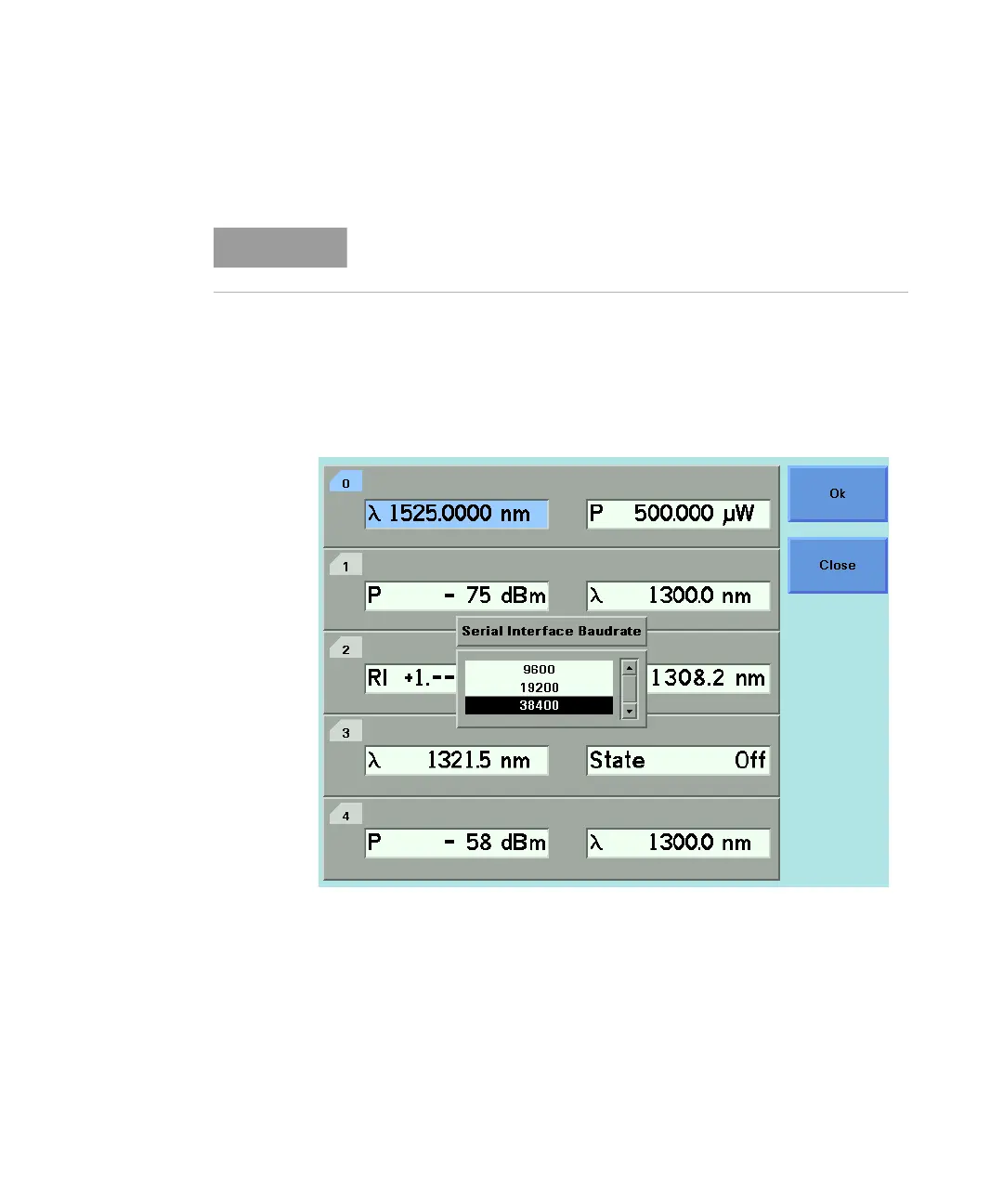

Figure 49 Selecting a Baudrate for the Serial Interface
3 Move to the Baudrate required and press Enter.
The default Baudrate of the serial interface is 38400 bps.
