8163A/B, 8164A/B, 8166A/B User’s Guide 325

Installation and Maintenance 11

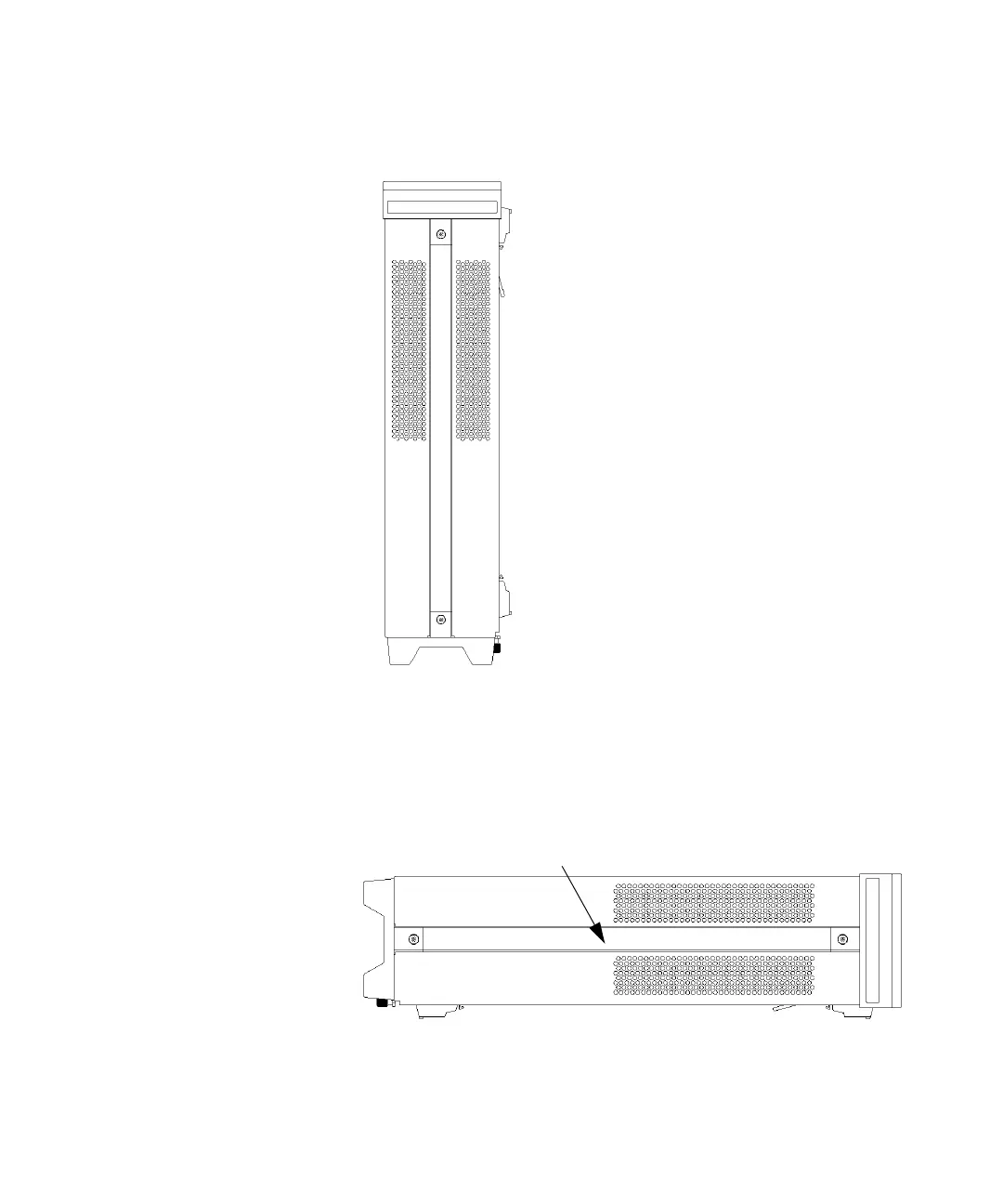

Figure 201 Storing the 8164A/B on its Back Legs.

Carrying the Instrument

When carrying the 8164A/B Lightwave Measurement System, grip the

strap at the side of the instrument as shown in Figure 202 on page -325.

Figure 202 Carry the 8164A/B Lightwave Measurement System using this Strap

Strap
