10 Applications
The Pmax Curve
What is the Pmax Curve ?
The Pmax Curve shows the maximum laser output power for your Tunable
Laser module across the wavelength range of your Tunable Laser module.
How to View the Pmax Curve
To view the Pmax Curve:
1Press the Appl hardkey. The Applications menu, as shown in Figure 160
on page -262, appears.
2Move to <Pmax curve> and press Enter. The Pmax Curve Screen, as
shown in Figure 187 on page -302, appears.

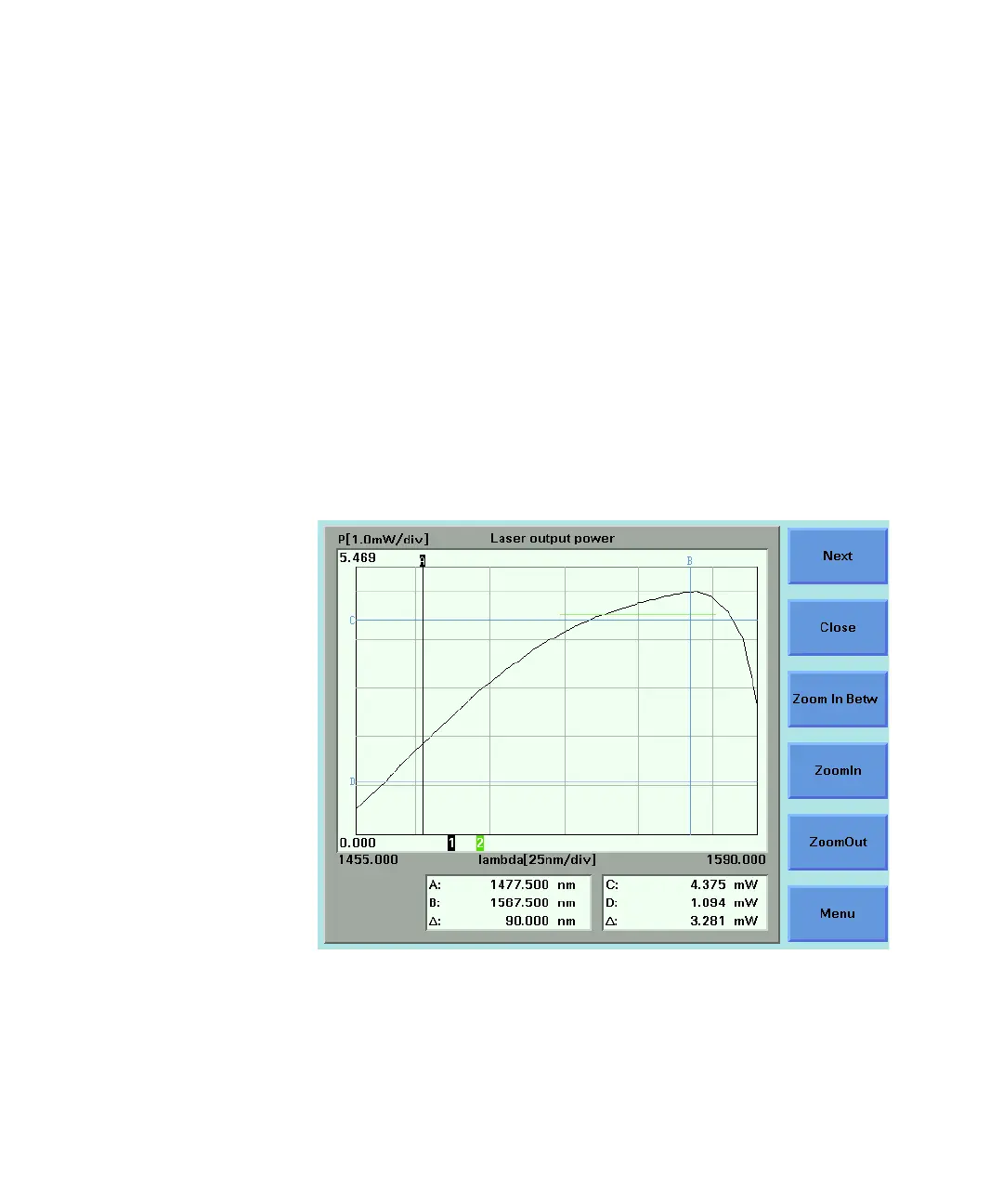

Figure 187 The Pmax Curve Screen
3See Working with Application Graphs on page 249 for information on
zooming in and out.
4 Press [Close] to exit from the Pmax Curve application.
