300 8163A/B, 8164A/B, 8166A/B User’s Guide
10 Applications

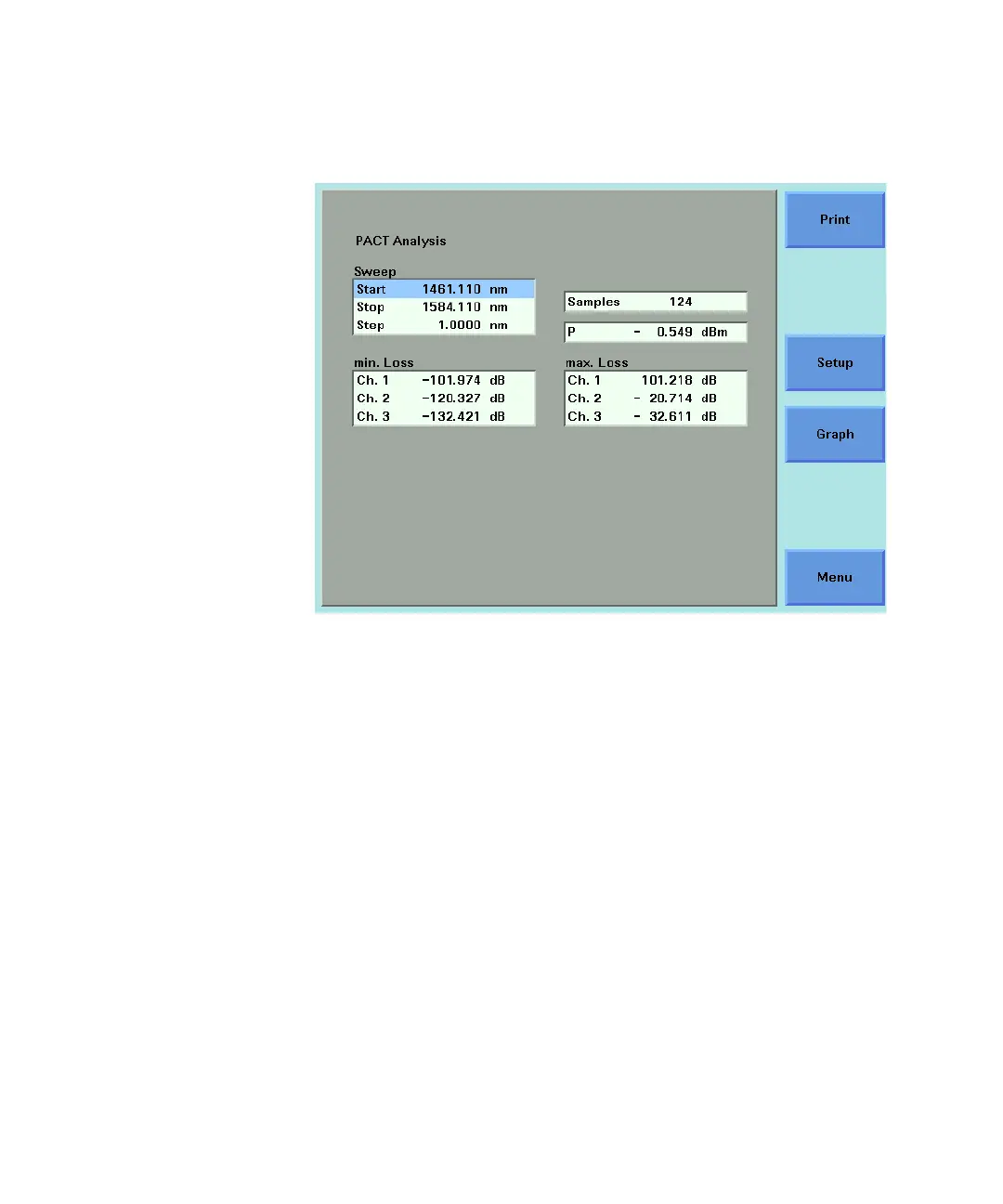

Figure 186 The PACT Analysis Screen
The sweep parameters are shown.
The following results of the PACT Measurement are shown for each
selected Power Meter channel:
• min. Loss, the minimum loss value for the particular Power Meter
channel for the sweep, and
• max. Loss, the maximum loss value for the particular Power Meter
channel for the sweep.
