8163A/B, 8164A/B, 8166A/B User’s Guide 257
Applications 10
How to Lock Markers to the Curve
You can lock markers A and B to curves by performing the following
instructions:
1 Press the [Menu] softkey and move to <Lock to Curve>. A menu
displaying the options displayed in The Lock to Curve Menu on
page 257 appears.

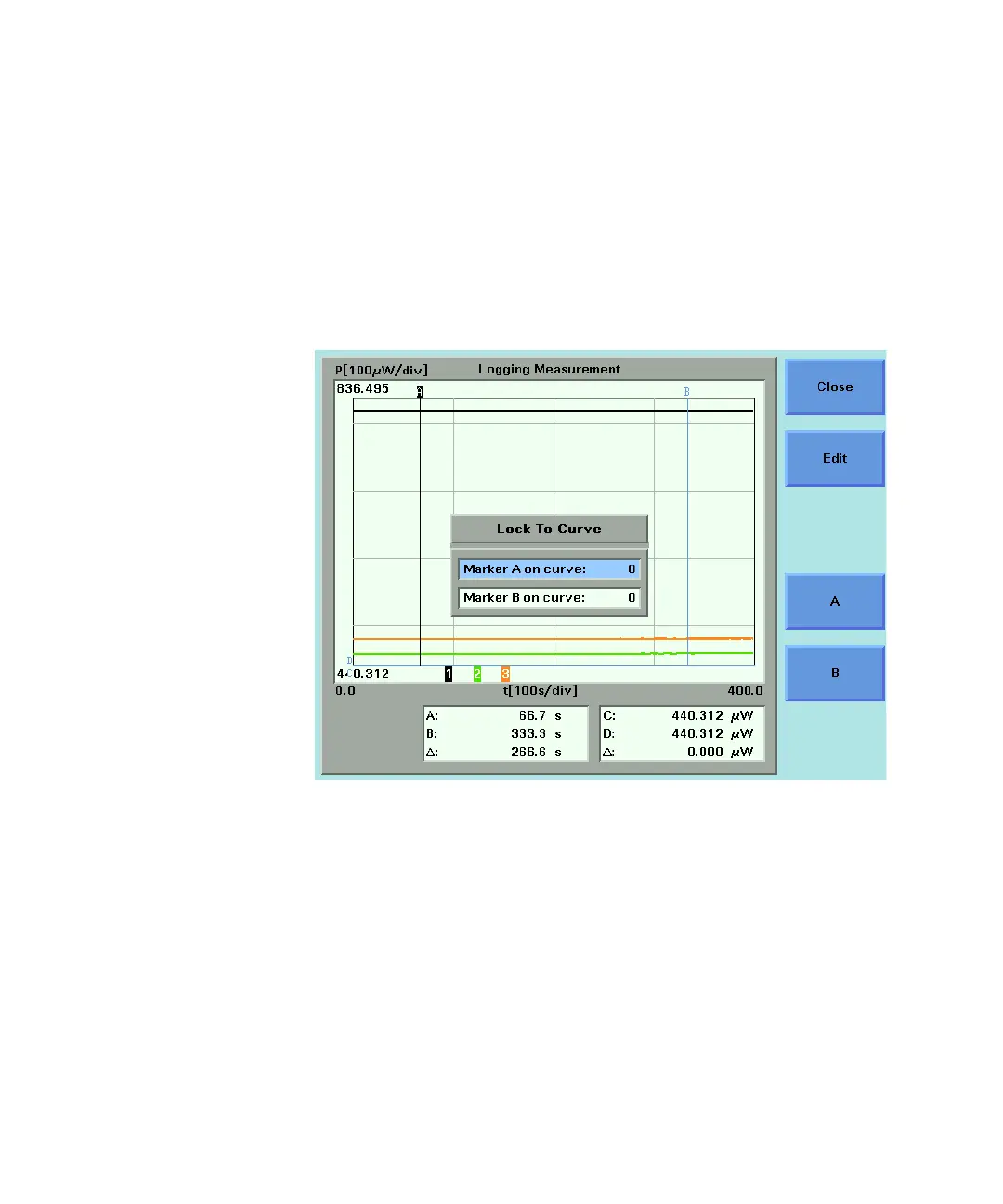

Figure 156 The Lock to Curve Menu
2 Press the [A] softkey to lock marker A to a curve. The number opposite
Marker A on curve: is highlighted.
3 Use the cursor key to move to the legend number of the curve to which
you want to lock marker A.
4Press Enter. Marker B will be locked to the same curve as marker A, if it
was assigned to curve 0 immediately before, that is, it was unassigned
immediately before.
5 If you want to assign marker B to another curve, press the [B] softkey,
use the cursor key to move to the legend number of the curve to which
you want to lock marker B, and press Enter.
