268 8163A/B, 8164A/B, 8166A/B User’s Guide
10 Applications

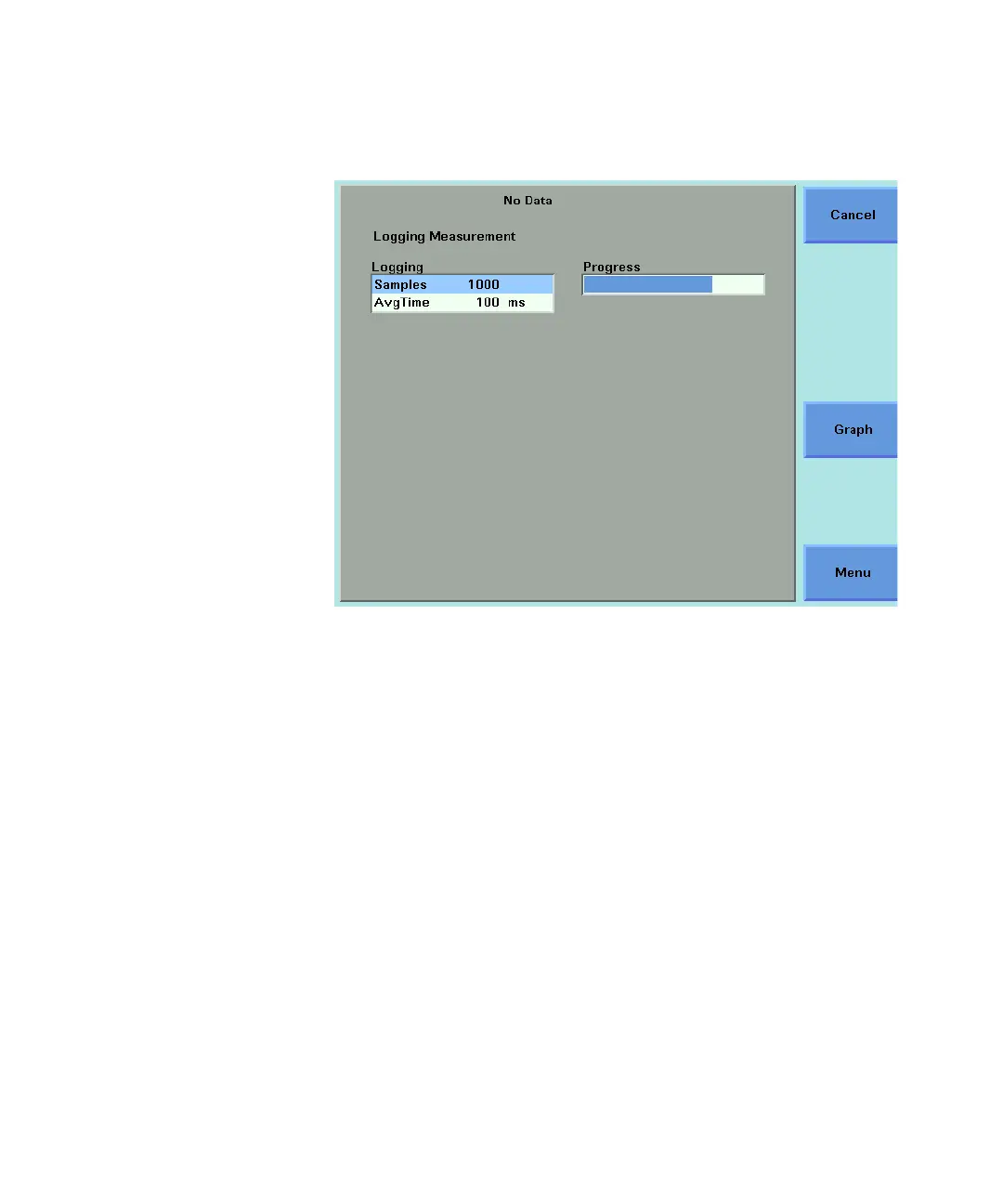

Figure 164 The Logging Measurement Screen - Measurement Running
2 There are two softkeys available from the Logging Measurement
screen.
• Press [Graph] to view a graph of the Measurement results as the
results are measured. Press [Close] to return to the Logging
Measurement screen. See Working with Application Graphs on
page 249 for information on zooming in and out.
• Press [Cancel] to return to the Logging Setup screen without
completing the logging application.
3 When the logging application completes, you hear a beep, an
hourglass appears momentarily. If you are viewing the Logging
Measurement Screen the available softkeys change as shown in Figure
165 on page -269.
