272 8163A/B, 8164A/B, 8166A/B User’s Guide
10 Applications
5 If you have chosen <Value> as the <Ref Mode>, move to <Ref>, press
Enter, enter a value for the reference, and press Enter.
Viewing the Statistics for a Power Meter Channel
1 If you are using the 8164A/B, move to [Stat Ch.], press Enter, move to a
Power Meter channel, and press Enter.
If you are using the 8163A/B, press [More], the screen in Figure 168 on
page -272 appears, move to [Stat Ch.], press Enter, move to a Power
Meter channel, and press Enter.

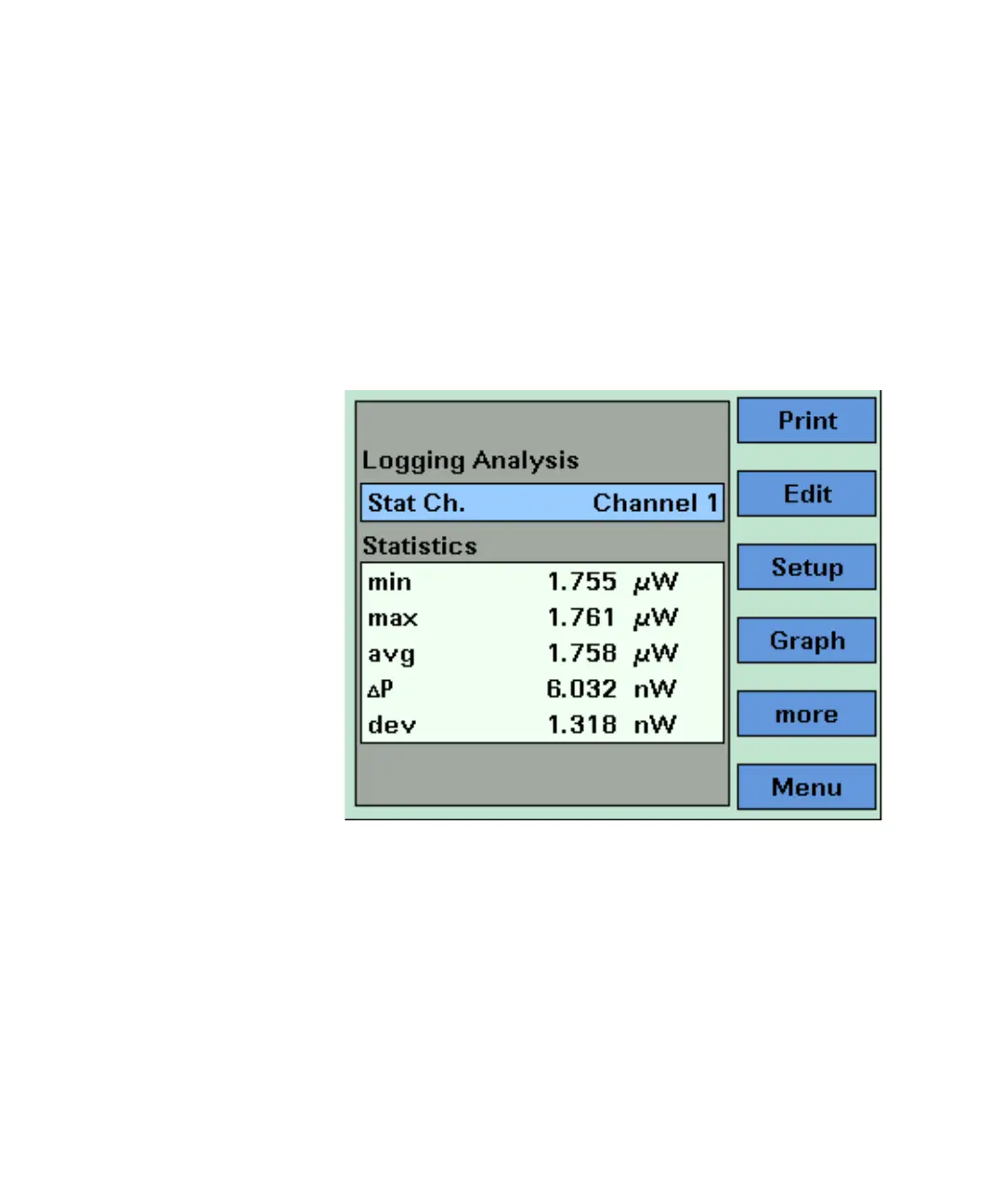

Figure 168 The 8163B Logging Analysis Screen - Second Screen
2 The following statistics are displayed for the chosen Power Meter
channel:
• [min], the minimum power measurement measured,
• [max], the maximum power measurement measured,
• [avg], the average of all power measurements measured,
• [
ΔP], the difference between [max] and [min],
• [dev], the standard deviation of all power measurements measured.
