8163A/B, 8164A/B, 8166A/B User’s Guide 285
Applications 10
24 If you have chosen <Value> as the <Ref Mode>, move to <Ref>, press
Enter, enter a value for the reference, and press Enter.
Viewing the Statistics for a Power Meter Channel
25 If you are using the Keysight 8164A/B, move to [Stat Ch.], press Enter,
move to a Power Meter channel, and press Enter.
If you are using the Keysight 8163A/B, press [More], a screen similar to
that shown in Figure 177 on page -285appears, move to [Stat Ch.], press
Enter, move to a Power Meter channel, and press Enter.

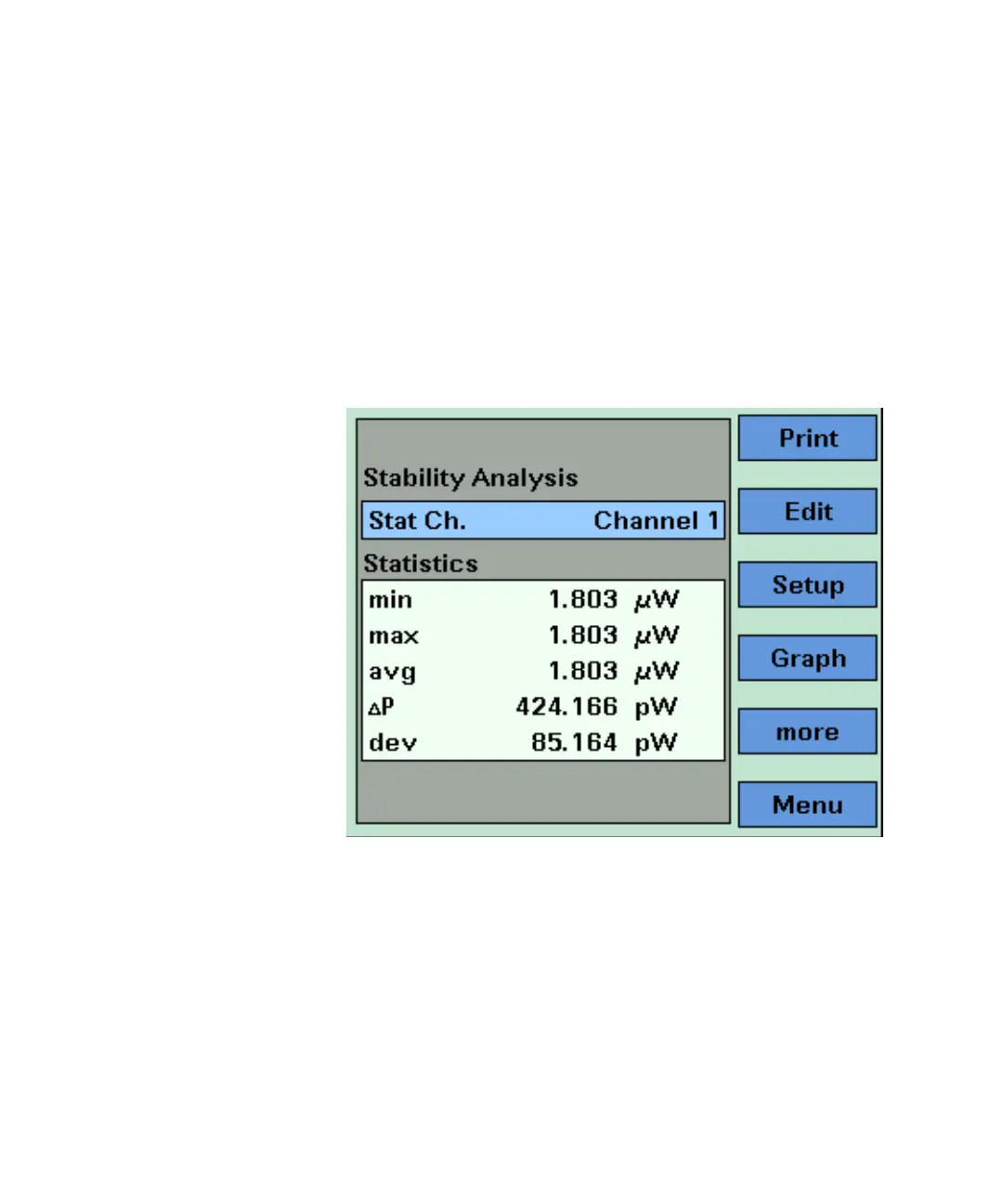

Figure 177 The Keysight 8163A/B Stability Analysis Screen - Second Screen
The following statistics are displayed for the chosen Power Meter channel:
• [min], the minimum power measurement measured,
• [max], the maximum power measurement measured,
• [avg], the average of all power measurements measured,
• [
ΔP], the difference between [max] and [min],
• [dev], the standard deviation of all power measurements measured.
