Fitting Blind Panels for Front-Loadable Module Slots
The newer filler panels can be inserted much like a front-loadable module
and have the part number 08163-44101. To fit the older blind panel (part
number - 08163-40199), perform the following procedure.
1 Position the blind panel as shown in Figure 210 on page -334. Position
the end closest to the handle against the bottom edge of the slot.

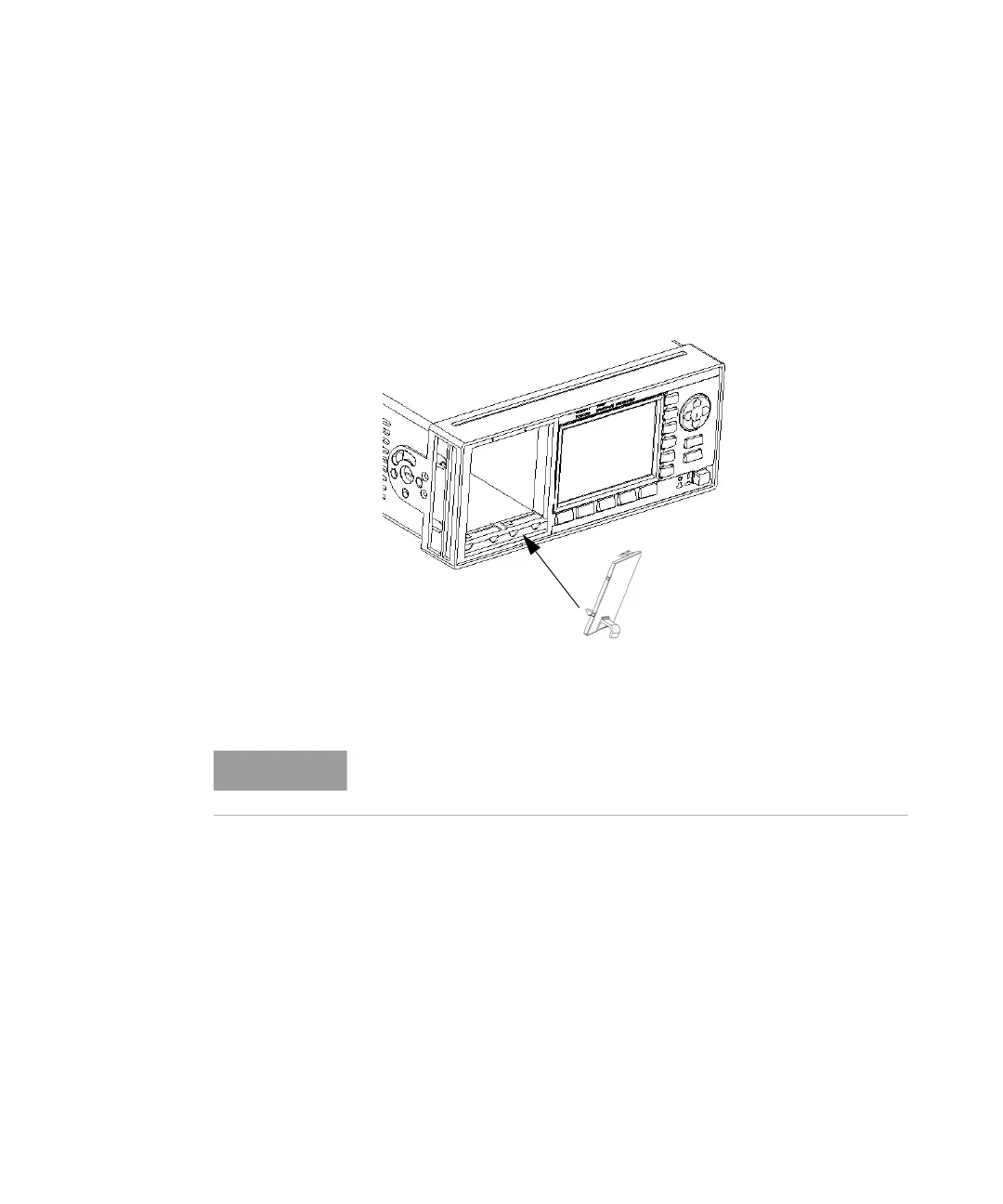

Figure 210 Fitting a Blind Panel
2 Push the top of the blind panel so that it clicks into position.
Fitting a Filler Module for Back-Loadable Module Slots
The 81645A Filler Module must be used if you have not installed a
back-loadable Tunable Laser module into the 8164A/B Lightwave
Measurement System.
The Keysight 81645A Filler Module can be fitted in the same way as any
back-loadable module, see How to Fit and Remove Modules on page 327.
The Keysight 81645A Filler Module can be removed in the same way as
any back-loadable module, see How to Remove a Back-Loadable Module
on page 329.
To remove a blind panel, pull the handle.
