46 8163A/B, 8164A/B, 8166A/B User’s Guide
1 Getting Started

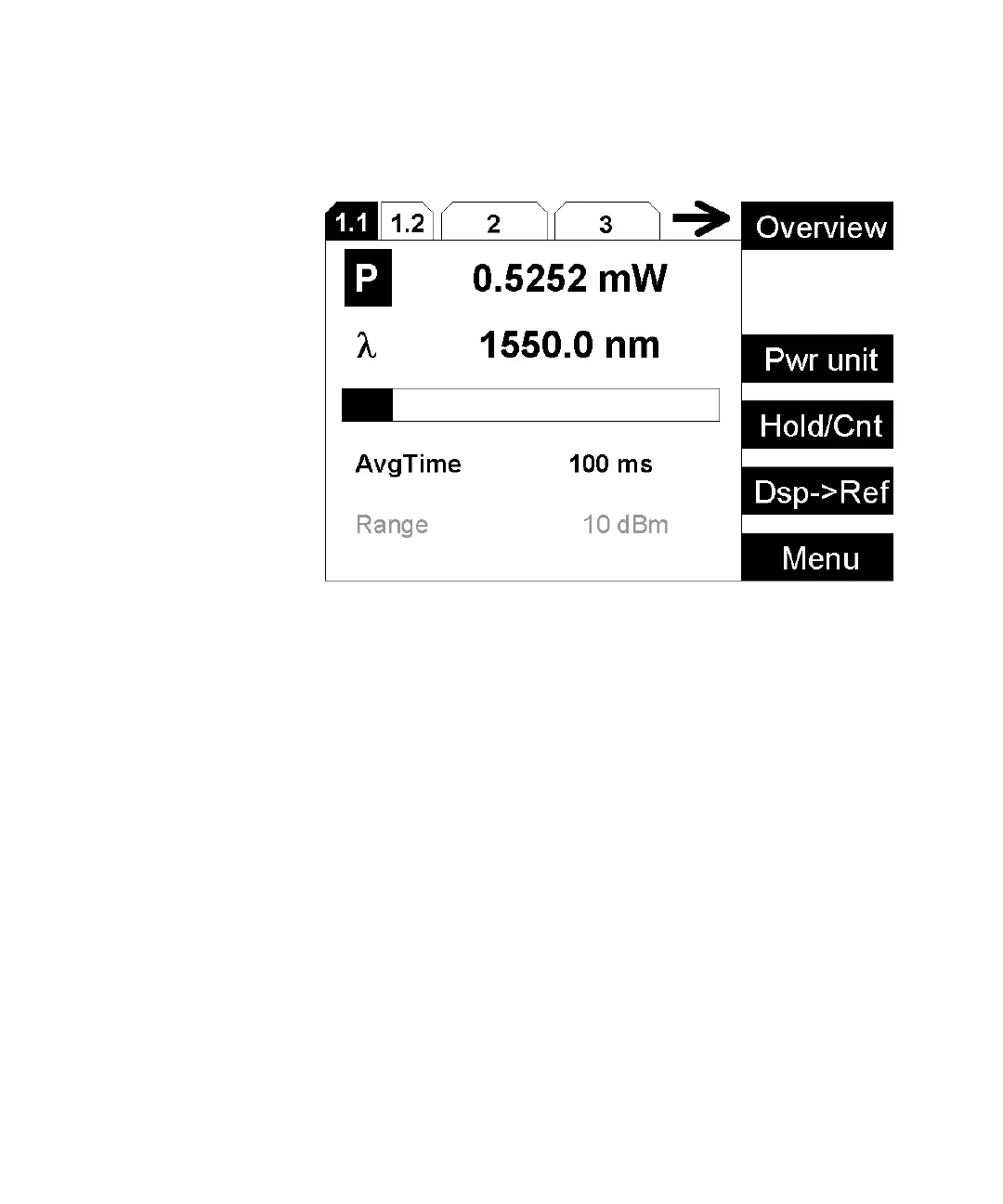

Figure 16 The 8166A/B Details Screen for a Power Sensor Channel
If more than 3 modules are inserted in the 8166A/B Lightwave
Multichannel System, the user interface cannot display each channel
number in the details screen. The arrow indicates that undisplayed
channels can be accessed by pressing the Channel hardkey.
To return to the overview screen press the [Overview] softkey.
How to Access the Menu
Press the [Menu] softkey to access all the parameters and functions that
apply to a module. Figure 17 on page -47 and Figure 19 on page -49 show
the type of menu you should see for a Power Sensor channel.
