50 8163A/B, 8164A/B, 8166A/B User’s Guide

1 Getting Started

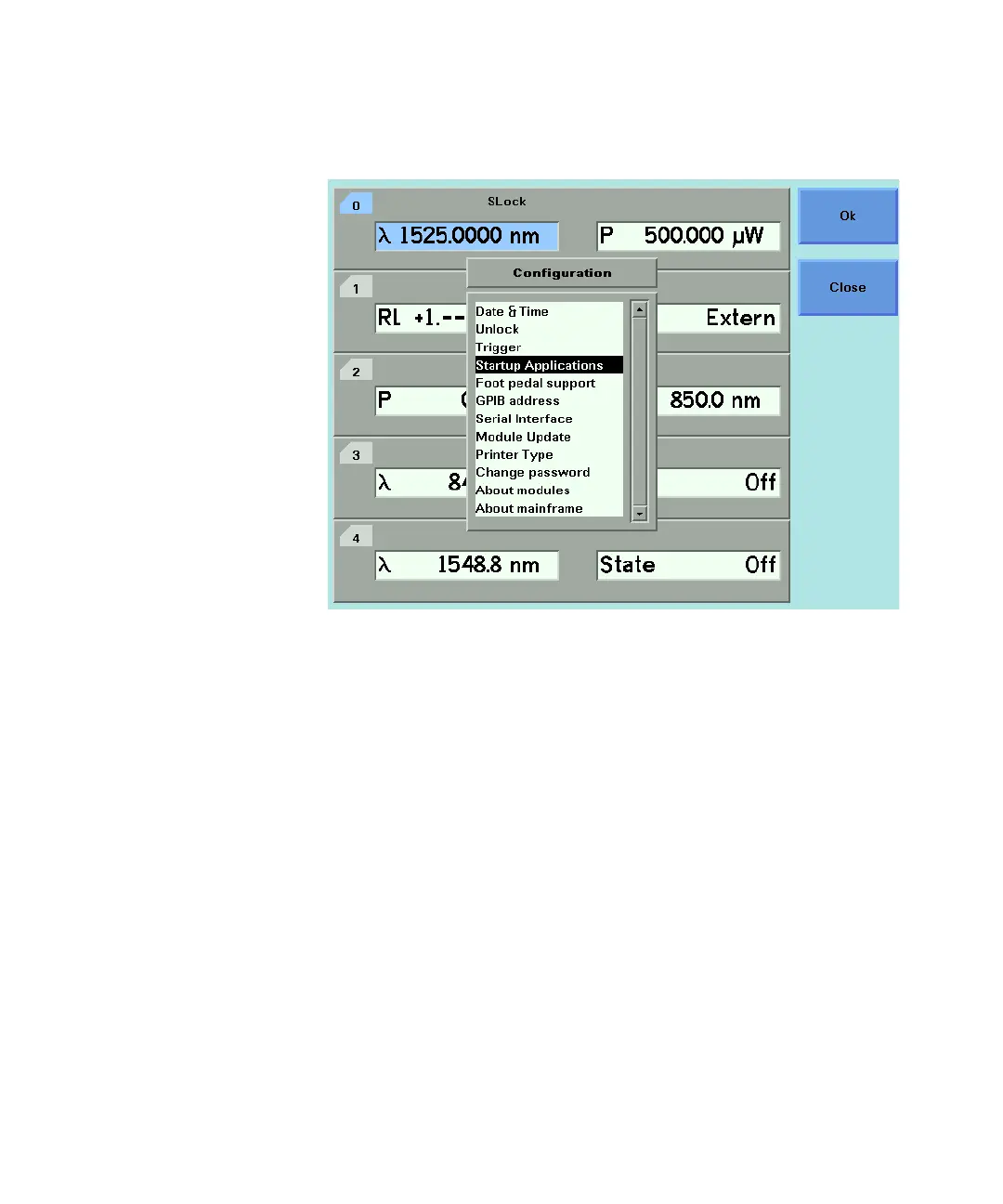

Figure 20 The 8164A/B System Configuration Menu

How to Get Help

Press the Help hardkey any time you need more information. The

instrument displays online documentation for the currently selected

parameter.
