8163A/B, 8164A/B, 8166A/B User’s Guide 59
Getting Started 1

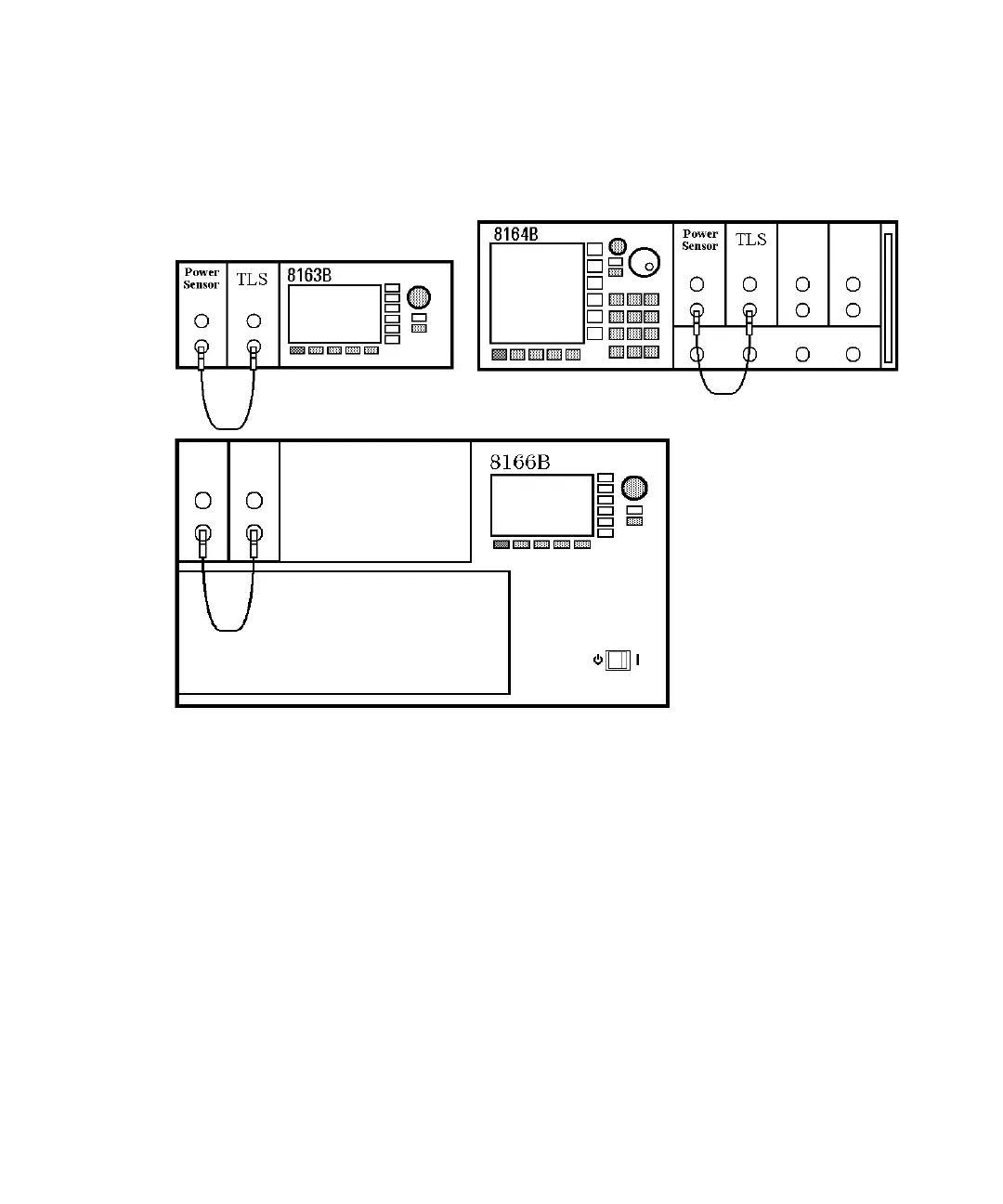

Figure 26 Connecting the Instrument for the Sample Session
4 Make sure the instrument is powered up.
5 How to set the wavelength for the Power Sensor module:
a Move to the wavelength parameter, [λ], for the Power Sensor
module and press Enter.
b Enter 1540.000 and press Enter.
6 How to set the averaging time for the Power Sensor module:
a Move to the measurement averaging time, [Tavg], and press Enter.
b Move to <1s>, using the cursor key, and press Enter.
