82 Keysight EXG and MXG X-Series Signal Generators User’s Guide

Front Panel Operation for All Models

Working with Files (Viewing/Storing/Loading/Moving)

Moving or Copying a Stored Instrument State

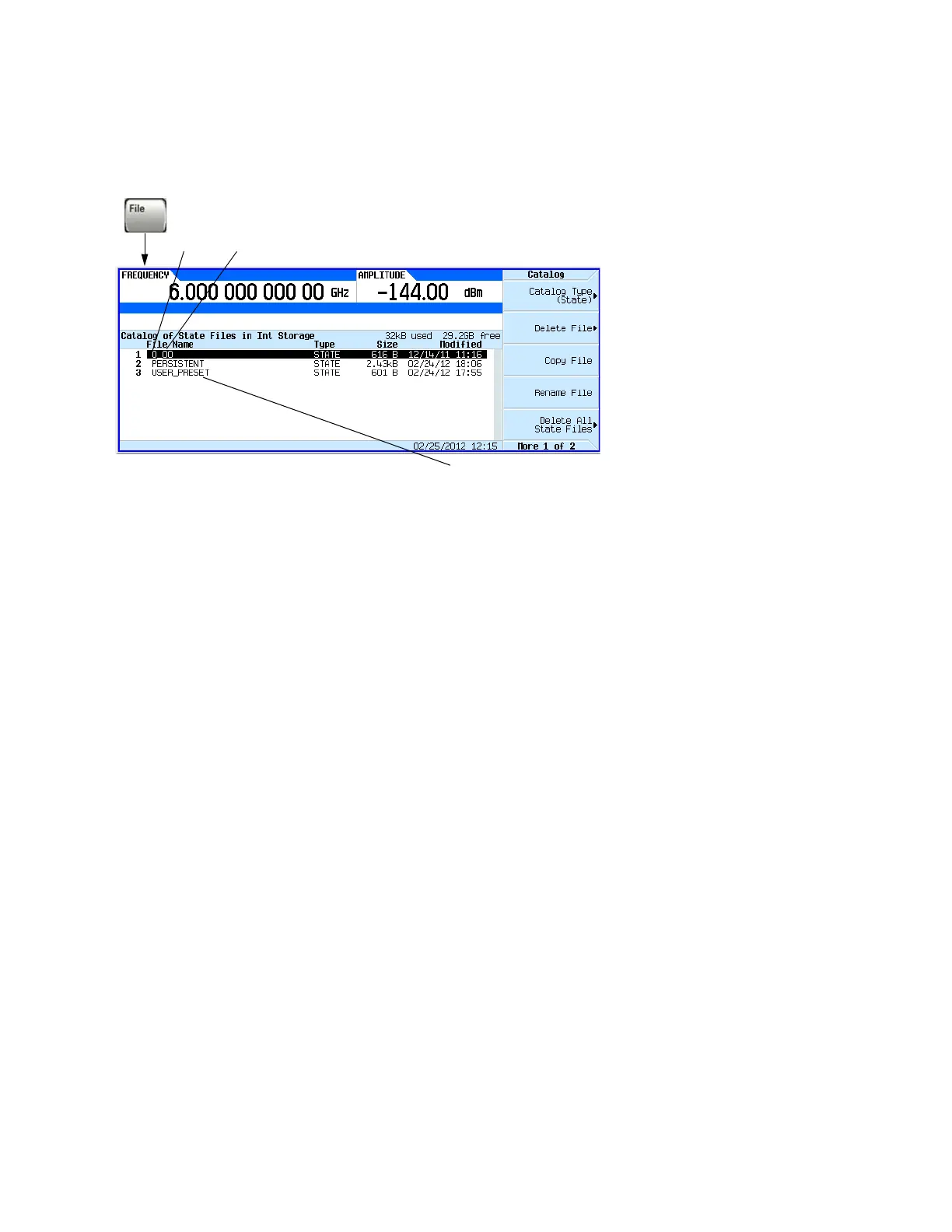

Figure 4-10 Instrument State File Catalog

A user–created state file’s default name is its memory location (sequence and register).

To move the file, rename it to the desired sequence and register; you can not give a file the same

name as an existing file. If you rename a state file to something other than a valid sequence/register

name, the file does not appear in either the Save or Recall menu.

Sequence Register

The signal generator recognizes only the file named USER_PRESET as user preset information (page80).
