280 Keysight EXG and MXG X-Series Signal Generators User’s Guide
Using Custom Digital Modulation for N5172B/82B with Option 431 and 653/655/656/657
Using the Arbitrary Waveform Generator

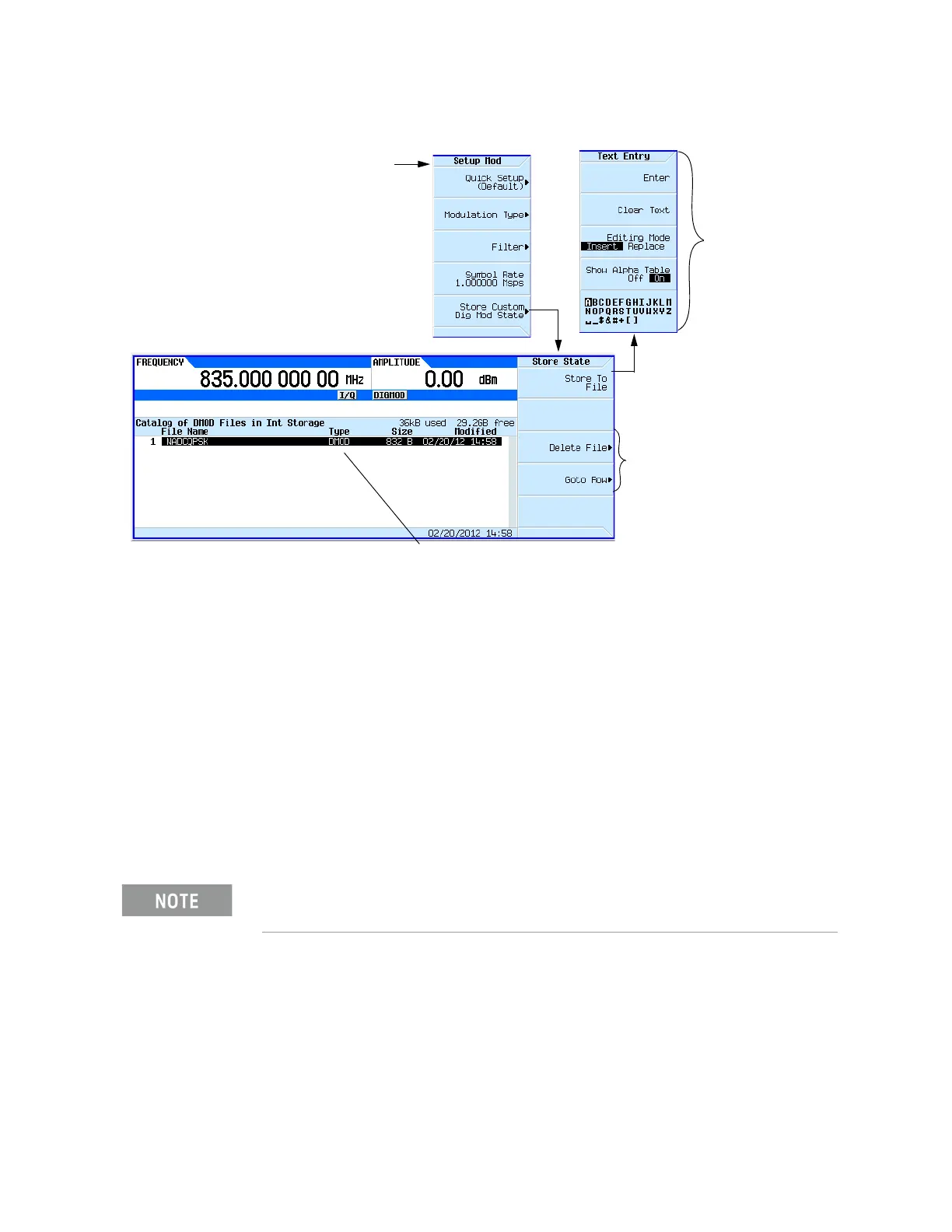

Figure 9-20 Storing a Custom Digital Modulation State
1. Return to the top–level ARB Custom Modulation menu, where Digital Modulation Off On is the
first softkey.
2. In the ARB Custom Modulation menu (page 280), press Single Carrier Setup > Store Custom
Dig Mod State > Store To File.
If there is already a file name from the Catalog of DMOD Files occupying the active entry
area, press the following key: Clear Text
3. Enter a file name (for example, NADCQPSK) using the alpha keys and the numeric keypad with a
maximum length of 23 characters.
4. Press Enter.
The user–defined, single–carrier, digital modulation state is now stored in non–volatile memory.
Recalling a Custom Digital Modulation State
Using this procedure, you will learn how to recall a custom digital modulation state from signal
non–volatile memory.
The RF output amplitude, frequency, and operating state settings are not
stored as part of a user–defined, digital modulation state file.
Catalog displays DMOD files that have
been previously saved by the user.
Mode > ARB Custom Modulation > Single
Carrier Setup
page57
These keys manage the table
of DMOD files in internal
storage.
For details on each key, use key help as described on page56.
