Keysight EXG and MXG X-Series Signal Generators User’s Guide 435

Using the N5102A Digital Signal Interface Module for N5172B/82B with Option 003/004 and

653/655/656/657

Operating the N5102A Module in Output Mode

Press N5102A Interface to access the user interface (Figure 17-10) that is used to configure the

N5102A Digital Signal Interface Module. Notice the graphic in the signal generator display,

showing a setup where the N5102A module is generating its own internal clock signal. This graphic

changes to reflect the current clock source selection.

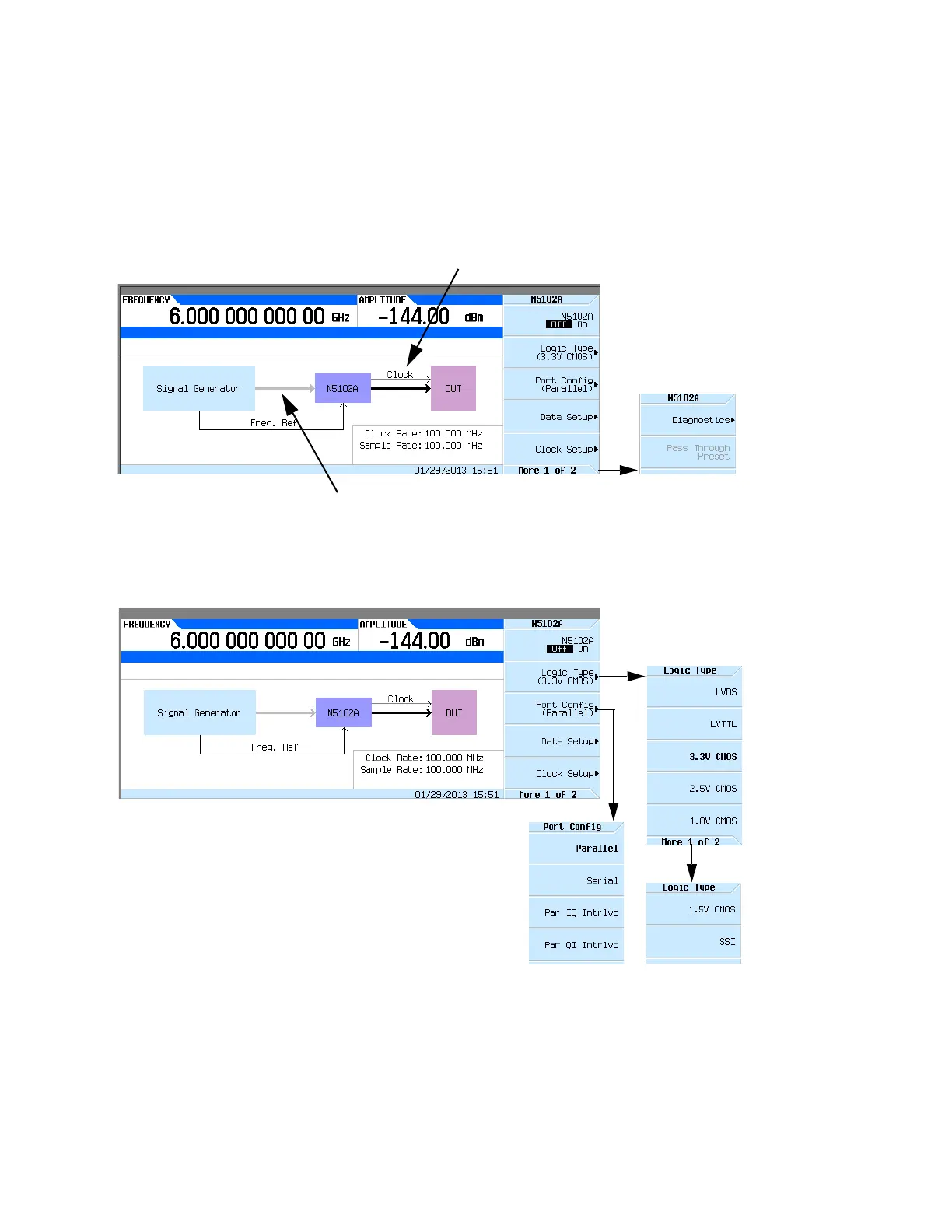

Figure 17-10 N5102A Interface Menu

Choosing the Logic Type and Port Configuration

Figure 17-11 Logic and Port Configuration Softkey Menus

1. Refer to Figure 17-11. Press the Logic Type softkey.

Line is grayed out until the N5102A interface module is turned on

Internal clock going to the DUT

Default Chapter5
