Front Panel Operation for All Models
Working with Files (Viewing/Storing/Loading/Moving)
ARB File Softkeys
Viewing a List of Stored Files
The information in this section is provided with the assumption that default storage media is set to
Auto, as described on page 83.
Viewing a List of Files Stored in the Signal Generator
1. If USB media is connected, disconnect it. The signal generator’s storage media switches to
internal, so you can now use the file catalogs to see files stored in the signal generator.
2. Select the desired file catalog: Press File > Catalog Type > desired catalog (in this example,

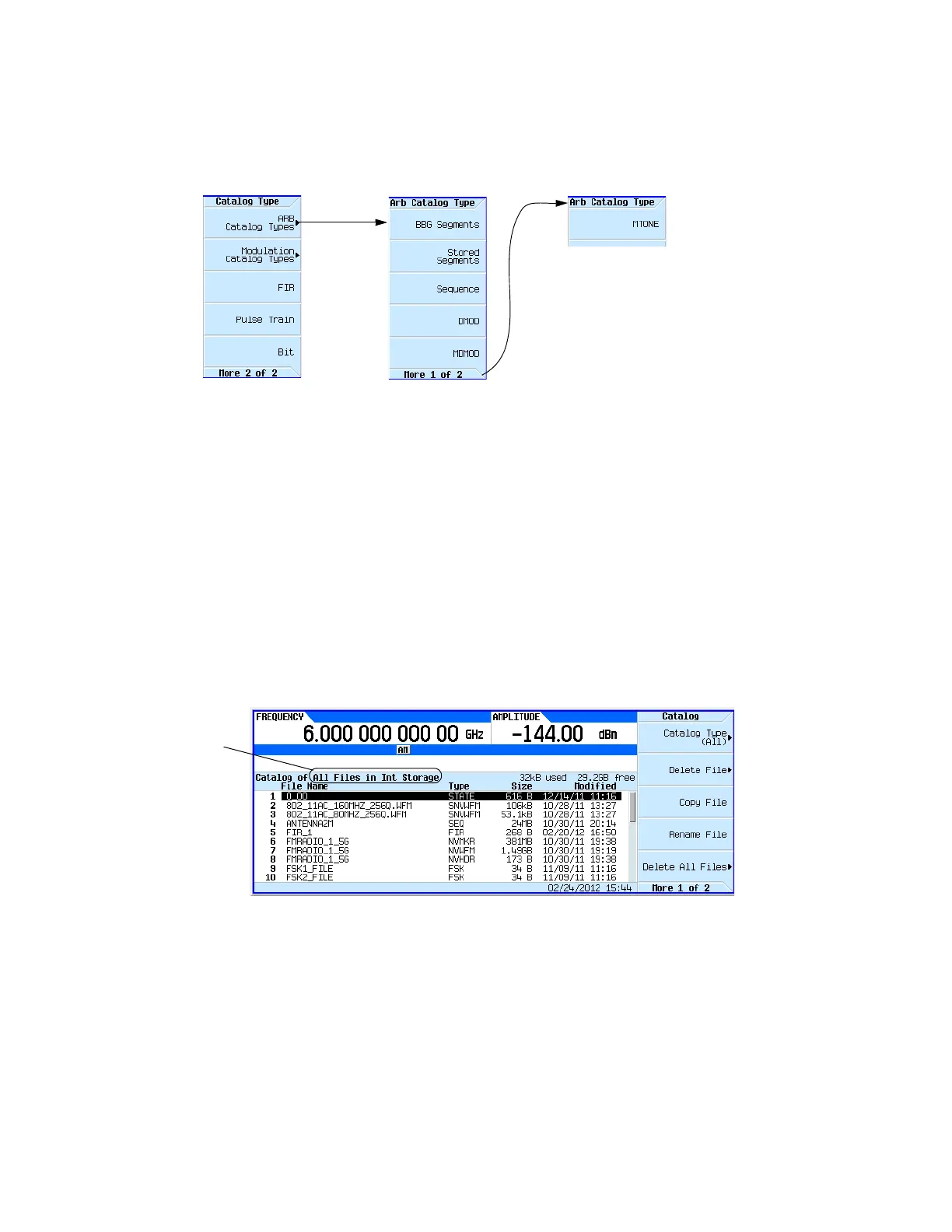

All). The selected files appear in alphabetical order by file name, as shown in the following
figure.
For details on each key, use key help as described on page56.
Waveform files and their associated marker
and header information.
Note: Available file types depend on the installed options.
The selected file catalog and
the storage media
