450 Keysight EXG and MXG X-Series Signal Generators User’s Guide
Using the N5102A Digital Signal Interface Module for N5172B/82B with Option 003/004 and
653/655/656/657
Operating the N5102A Module in Input Mode
9. Press the Clock Polarity Neg Pos softkey to Neg.
This shifts the clock signal 180 degrees, so that the data starts during the negative clock
transition. This has the same affect as selecting the 180 degree phase adjustment.
10.Make the clock polarity selection that is required for the device being tested.
11.Press the Return key to return to the first-level softkey menu.
The clock source selection is also reflected in the first-level softkey menu graphic. For
example, if the device is the new clock source, you will see that the frequency reference is now
connected to the DUT and the DUT has an input clock line going to the N5102A module.
Selecting the Data Parameters
This procedure guides you through the data setup menu. Softkeys that have self-explanatory
names are generally not mentioned. For example, the Word Size softkey.
1. Refer to Figure 17-21. Press the Data Setup softkey.

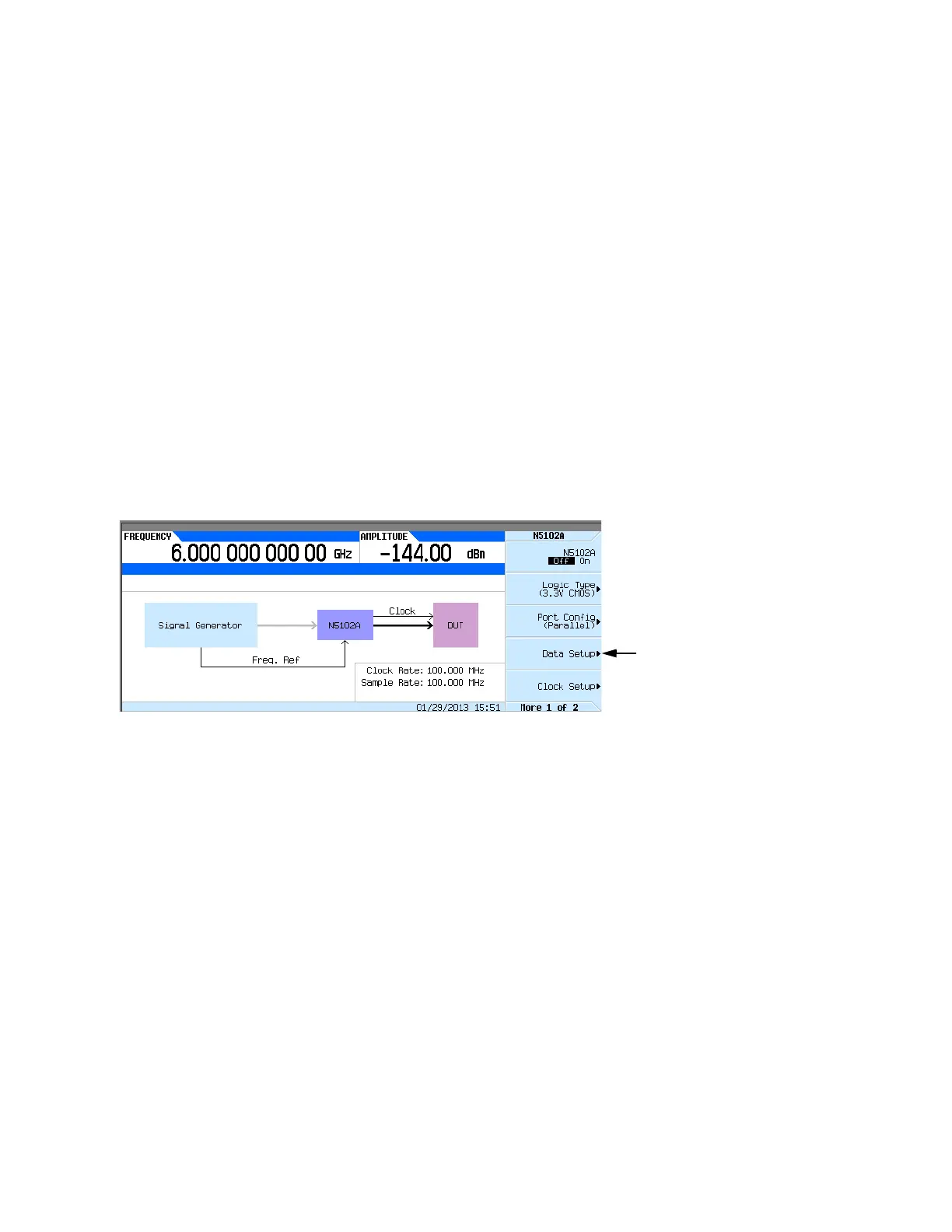

Figure 17-21 Data Setup Menu Location
This softkey menu accesses the various parameters that govern the data received by the signal
generator. The status area of the display shows the number of data lines used for both I and Q
along with the clock position relative to the data. Figure 17-22 shows the data setup menu
structure.
Accesses the Data Setup
Menu
To Next Page
