330 Keysight EXG and MXG X-Series Signal Generators User’s Guide

Adding Real–Time Noise to a Signal for N5172B/82B with Option 403 and 653/655/656/657

Using Real-Time AWGN Softkeys

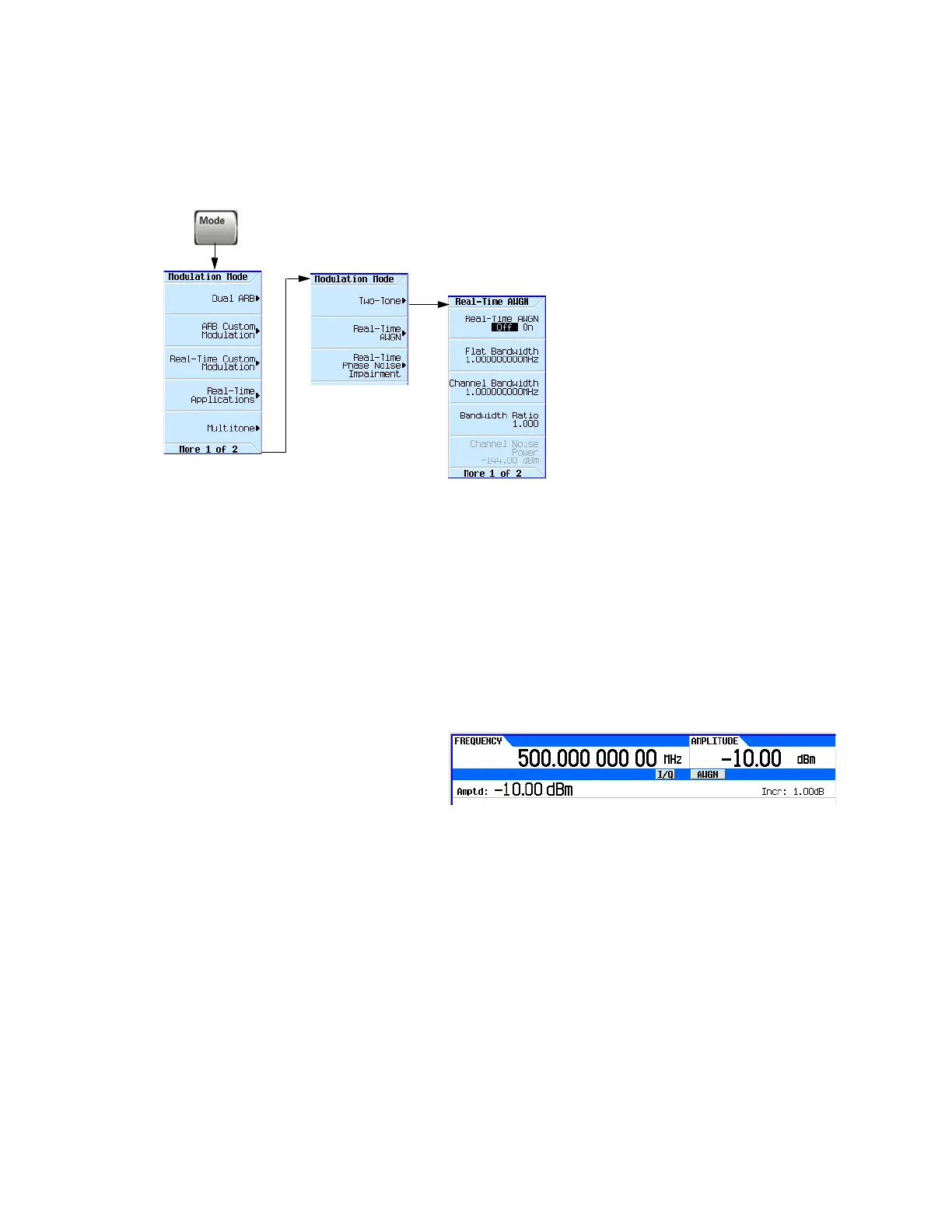

Figure 11-7 Real Time AWGN Softkeys (Using the I/Q Baseband)

Use the following steps to apply 10 MHz bandwidth noise to a 500 MHz, –10 dBm carrier.

1. Configure the noise:

a. Preset the signal generator.

b. Press Mode > More > Real-Time AWGN

c. Press Bandwidth > 10 > MHz.

2. Generate the noise:

Press Real-Time AWGN Off On until On highlights.

During generation, the AWGN and I/Q

annunciators activate (as shown at

right). AWGN is now available to

modulate the RF carrier.

3. Configure the RF output:

— Frequency: 500 MHz

— Amplitude: −10 dBm

— RF output: on

The carrier with AWGN is now available at the signal generator’s RF OUTPUT connector.

For details on each key, use key help

as described on page56.
