412 Keysight EXG and MXG X-Series Signal Generators User’s Guide

Using BERT for N5172B/82B with Option UN7

Verifying BERT Operation

The following procedures verify the operation of the signal generator’s bit error rate test (BERT)

function. The tests can be performed as part of a daily validation routine or can be used whenever

you want to check the validity of your BERT measurements.

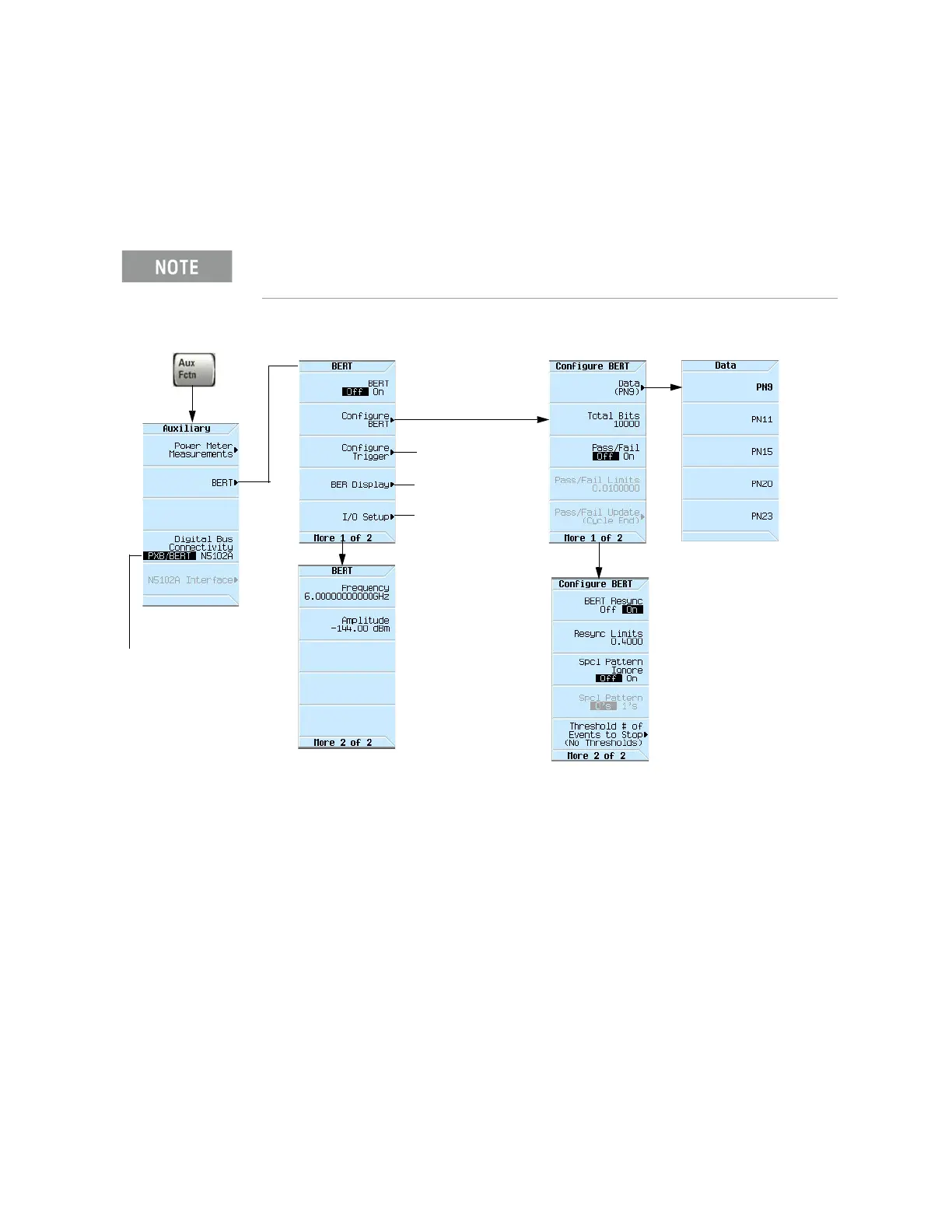

Figure 16-14 BERT Softkey Menus

The following procedures check the signal generator’s BERT operation and

do not ensure system performance to specifications.

Select PXB/BERT to enable

BERT functionality.

see page413

Default Chapter5
